Запчасти Case IH FARMALL 40B CVT (10.101.AA[01]) - CYLINDER HEAD (10) - ENGINE

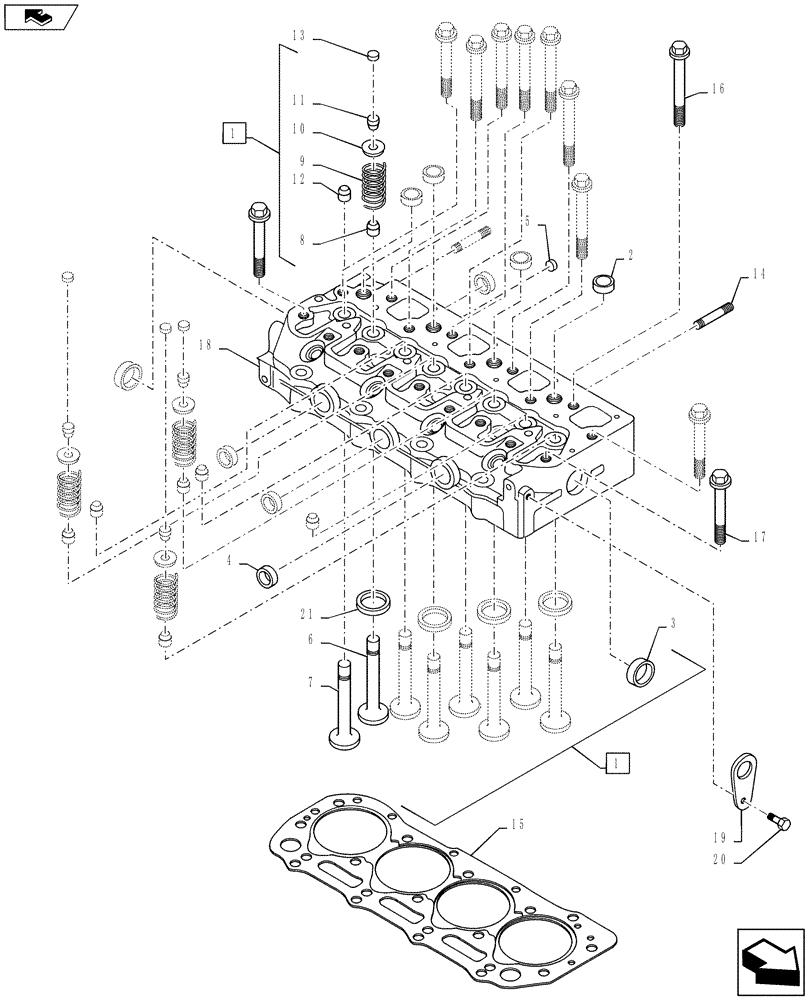

Схема запчастей Case IH FARMALL 40B CVT - (10.101.AA[01]) - CYLINDER HEAD (10) - ENGINE
19
14
9
13
8
5
10
18
7
home
6
2
3
12
15
16
11
1
21
20
1
17
4

Артикул

Название

Примечание

Количество

1

SBA111010410

CYLINDER HEAD

Incl 2 - 12, 14, 21, FARMALL 40B CVT

1шт.

1

SBA111011390

CYLINDER HEAD

Incl 2 - 12, 14, 21, FARMALL 45B CVT, 50B CVT

1шт.

2

SBA064210018

PLUG

Sealing, 18mm

7шт.

3

SBA064210030

PLUG,30mm

2шт.

4

SBA064210025

PLUG,25mm

6шт.

5

SBA064210010

PLUG,10mm

3шт.

6

SBA120166350

STD INLET VALVE

4шт.

7

SBA120176360

STD EXHAUST VALVE

4шт.

8

SBA120406070

SEAL

Valve

4шт.

9

SBA198216700

SPRING

8шт.

10

SBA120186080

RETAINER

8шт.

11

SBA120226070

RETAINER

16шт.

12

SBA120406050

SEAL

Valve Guide, Exhaust

4шт.

13

SBA120216040

CAP

8шт.

14

SBA012110860

STUD

2шт.

15

SBA111147510

CYLINDER HEAD GASKET,1.3mm Thk

1.2 Thickness, FARMALL 40B CVT

1шт.

15

SBA111147520

CYLINDER HEAD GASKET,1.4mm Thk

1.3 Thickness, FARMALL 40B CVT

1шт.

15

SBA111147751

CYLINDER HEAD GASKET,1.1mm Thk

1.1 Thickness, FARMALL 45B CVT, 50B CVT

1шт.

15

SBA111147761

CYLINDER HEAD GASKET,1.2mm Thk

1.2 Thickness, FARMALL 45B CVT, 50B CVT

1шт.

15

SBA111147771

CYLINDER HEAD GASKET,1.3mm Thk

1.3 Thickness, FARMALL 45B CVT, 50B CVT

1шт.

16

SBA111136480

BOLT

Head

14шт.

17

SBA111136490

BOLT

Head

4шт.

18

NSS

NOT SOLD SEPARAT

Head

1шт.

19

SBA195816540

LIFTING EYE

2шт.

20

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

21

SBA110136400

VALVE SEAT

4шт.

Выбрано товаров: 26
