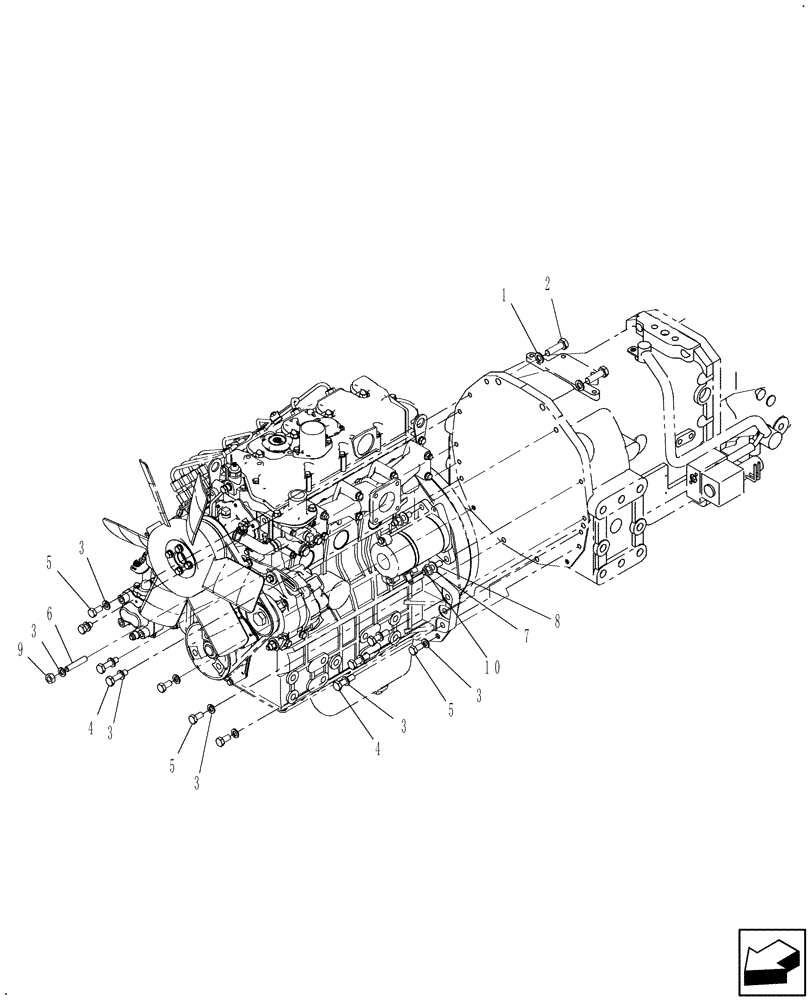

Запчасти Case IH FARMALL 40B CVT (10.001.AD[02]) - ATTACHING HARDWARE ENGINE TO TRANSMISSION (10) - ENGINE

1

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

2

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

3

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

12шт.

4

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

FARMALL 40B CVT

5шт.

4

8900127036

BOLT,Hex, M10 x 45mm, Cl 8.8

FARMALL 45B, 50B CVT

5шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

6

86400618

BOLT

M10 x 35, FARMALL 40B CVT

1шт.

6

86400619

BOLT

M10 x 45, FARMALL 45B, 50B CVT

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

8

86533693

STUD,M10 x 47, Cl 8.8

2шт.

9

100016

NUT,M10 x 1.5, Cl 8

1шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.
