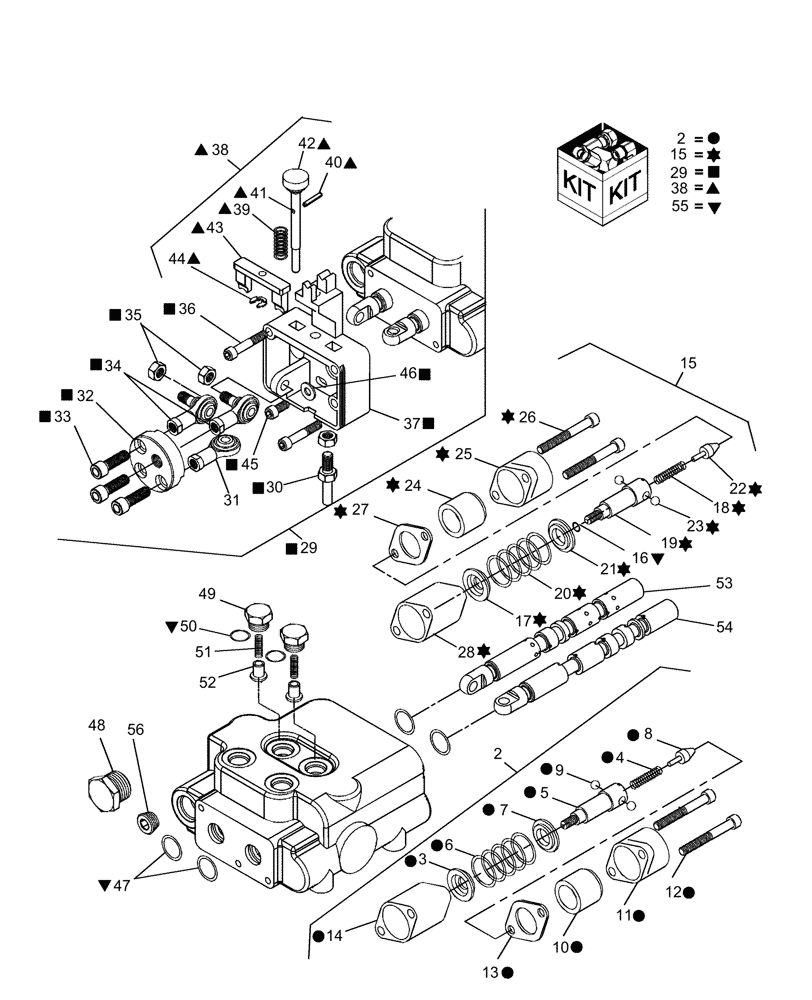

Запчасти Case IH FARMALL 40B CVT (03.57) - MID-MOUNT CONTROL VALVE (03) - Section 3
№
Артикул
Название
Примечание
Количество
1
47425468
VALVE
Mid-Mount Control, Incl 2 - 56
1шт.
2
47444412
KIT
Detent Kit, Regenerative Spool, Incl 3 - 14
1шт.
3
NSS
NOT SOLD SEPARAT
Stop Cup, Incl 1 - 2
1шт.
4
NSS
NOT SOLD SEPARAT
Detent Spring, Incl 1 - 2
1шт.
5
NSS
NOT SOLD SEPARAT
Detent Retainer, Incl 1 - 2
1шт.
6
NSS
NOT SOLD SEPARAT
Spring, Incl 1 - 2
1шт.
7
NSS
NOT SOLD SEPARAT
Washer, Incl 1 - 2
1шт.
8
NSS
NOT SOLD SEPARAT
Poppet, Incl 1 - 2
1шт.
9
NSS
NOT SOLD SEPARAT
Steel Ball, Incl 1 - 2
2шт.
10
NSS
NOT SOLD SEPARAT
Sleeve, Regenerative Spool, Incl 1 -2
1шт.
11
NSS
NOT SOLD SEPARAT
End Cap, Incl 1 - 2
1шт.
12
NSS
NOT SOLD SEPARAT
Cap Screw, Incl 1 - 2
2шт.
13
NSS
NOT SOLD SEPARAT
Retainer Plate, Incl 1 - 2
1шт.
14
NSS
NOT SOLD SEPARAT
Spacer, Incl 1 - 2
1шт.
15
47442476
KIT
Float Detent Kit, Incl 16 - 28
1шт.
16
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 15
1шт.
17
NSS
NOT SOLD SEPARAT
Stop Cup, Incl in 15
1шт.
18
NSS
NOT SOLD SEPARAT
Detent Spring, Incl in 15
1шт.
19
NSS
NOT SOLD SEPARAT
Detent Retainer, Incl in 15
1шт.
20
87569865
SPRING
Spring, Incl in 15
1шт.
21
NSS
NOT SOLD SEPARAT
Washer, Incl in 15
1шт.
22
NSS
NOT SOLD SEPARAT
Poppet, Incl in 15
1шт.
23
NSS
NOT SOLD SEPARAT
Steel Ball, Incl in 15
2шт.
24
NSS
NOT SOLD SEPARAT
Float Sleeve, Incl in 15
1шт.
25
NSS
NOT SOLD SEPARAT
End Cap, Incl in 15
1шт.
26
NSS
NOT SOLD SEPARAT
Cap Screw, Incl in 15
2шт.
27
NSS
NOT SOLD SEPARAT
Retainer Plate, Incl in 15
1шт.
28
NSS
NOT SOLD SEPARAT
Spacer, Incl in 15
1шт.
29
47442483
KIT
Relief Cartridge, Incl 30 - 46
1шт.
30
86400432
STUD,5/16"-24 x M184
1шт.
31
86400430
ROD
End
1шт.
32
87300261
PLATE
Adapter
1шт.
33
86402352
HEX SOC SCREW,5/16"-24 x .75"
Fine Thd
3шт.
34
86400431
ROD
End
2шт.
35
86402353
NUT,Hex, 5/16"-24, G5
3шт.
36
NSS
NOT SOLD SEPARAT
Cap Screw
2шт.
37
87300260
CLEVIS
Spool Lock
1шт.
38
87300255
REPAIR KIT
Spool Lock Hardware, Incl 39 - 44
1шт.
39
NSS
NOT SOLD SEPARAT
Clevis Spring, Incl in 38
1шт.
40
NSS
NOT SOLD SEPARAT
Roll Pin, Incl in 38
1шт.
41
86400069
ROD
Handle, Incl in 38
1шт.
42
NSS
NOT SOLD SEPARAT
Knob, Incl in 38
1шт.
43
NSS
NOT SOLD SEPARAT
Blade, Incl in 38
1шт.
44
NSS
NOT SOLD SEPARAT
Clip Ring, Incl in 38
1шт.
45
NSS
NOT SOLD SEPARAT
Cap Screw, Incl in 29
1шт.
46
NSS
NOT SOLD SEPARAT
Washer, Incl in 29
1шт.
47
NSS
NOT SOLD SEPARAT
Spool O-Ring, Incl in 15
4шт.
48
NSS
NOT SOLD SEPARAT
Plug, Incl in 15
1шт.
49
NSS
NOT SOLD SEPARAT
Load Check Plug, Incl in 15
2шт.
50
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 15
2шт.
51
NSS
NOT SOLD SEPARAT
Load Check Spring, Incl in 15
2шт.
52
NSS
NOT SOLD SEPARAT
Load Check Poppet, Incl in 15
2шт.
53
NSS
NOT SOLD SEPARAT
Float Spool
1шт.
54
NSS
NOT SOLD SEPARAT
Regenerative Spool
1шт.
55
87300259
SEAL KIT
1шт.
56
NSS
NOT SOLD SEPARAT
Incl in 55
1шт.
Выбрано товаров: 56
