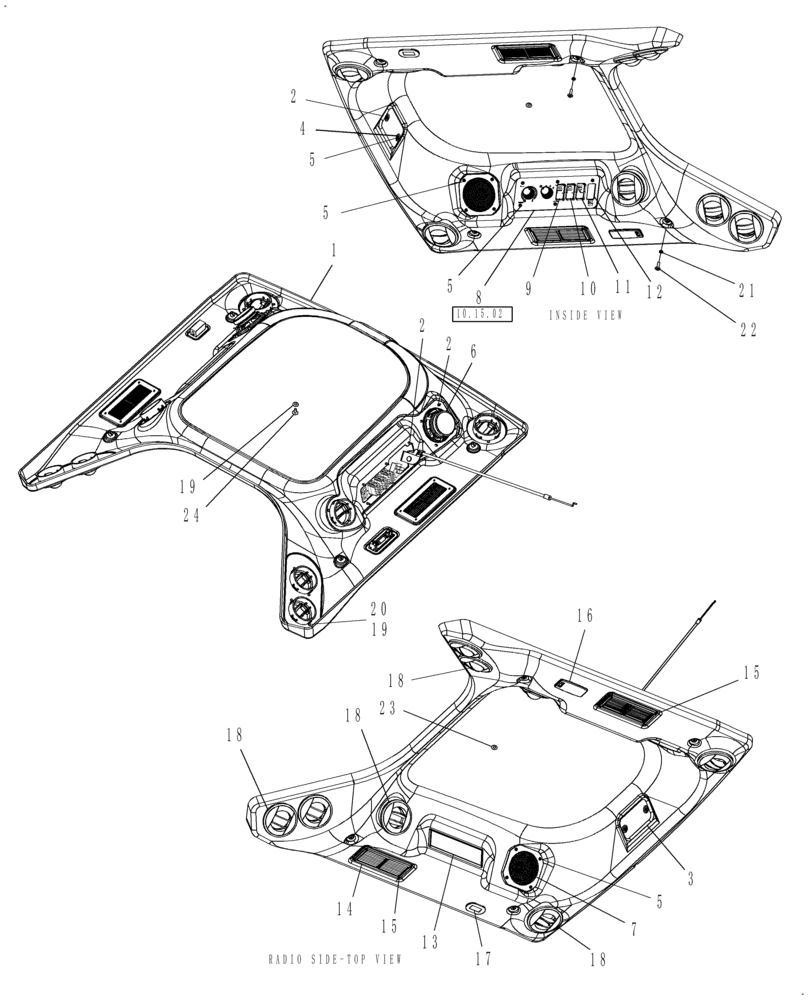

Запчасти Case IH FARMALL 40B CVT (90.160.AH) - HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87359412

LINER

Wheat

1шт.

2

833-40304

SPRING NUT,M4, U

16шт.

3

87540744

COVER

Fuse Access

1шт.

4

PL

PROCURE LOCALLY

Washer, 0.219 x 1.5 x 0.049

2шт.

5

540-720

SCREW,Cross Pan Hd, M4 x 16

16шт.

6

82014549

SPEAKER

100mm Flush Mounting Twin Cone

2шт.

7

82014734

GRILLE

Speaker

2шт.

8

0C

ORDER COMPONENTS

Panel, HVAC Controls & Rocker Switches

1шт.

9

87335496

SWITCH

Rocker, A/C ON/OFF

1шт.

10

87335499

SWITCH

Rocker, Windshield Wiper/Washer

1шт.

11

87335498

LIGHT SWITCH

Rocker, Work Lights

1шт.

12

406324A2

PLUG

Cover, Switch Hole

1шт.

13

87105189

COVER

Radio Opening

1шт.

14

87327755

GRILLE

HVAC Recirculation

2шт.

15

87551764

FASTENER

Micro-Tuflok

8шт.

16

1983391C1

LAMP,12V, 10W

Dome

1шт.

17

84067961

CEILING LAMP

1шт.

18

82027900

DIFFUSER

Black

8шт.

19

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

17шт.

20

151-535

RIVET,Pop, 1/8" x .462"

16шт.

21

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

22

87560750

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

SCREW. M6 x 20

4шт.

23

87612315

FASTENER

DISC, 20mm Velcro Loop, Light Gray Nylon

1шт.

24

151-537

RIVET,Pop, 1/8" x .650"

1шт.
