Запчасти Case IH FARMALL 40B CVT (90.116.AC[02]) - FENDER LINERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

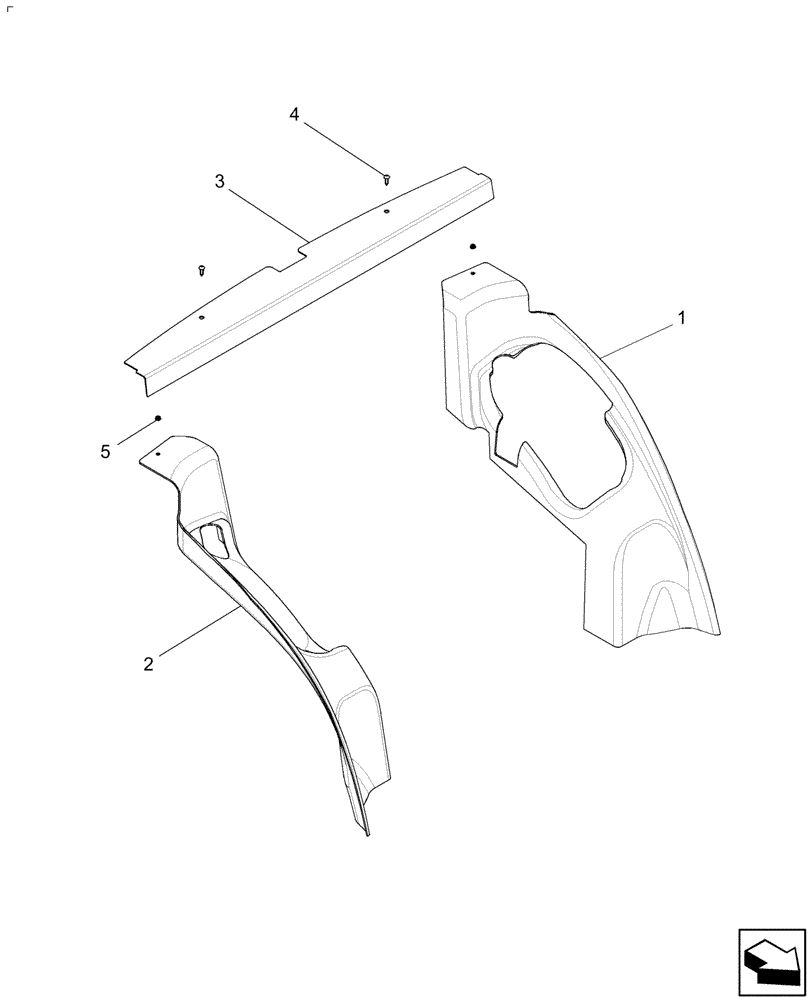

Схема запчастей Case IH FARMALL 40B CVT - (90.116.AC[02]) - FENDER LINERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
2
4
3
1

Артикул

Название

Примечание

Количество

1

87739260

FENDER

Liner, LH, Wheat

1шт.

2

87612949

COVER

Liner, RH, Wheat

1шт.

3

87592671

TRIM PANEL

Rear Shelf

1шт.

4

PL

PROCURE LOCALLY

Screw, Pan Head .3x22

2шт.

5

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

2шт.

Выбрано товаров: 5
