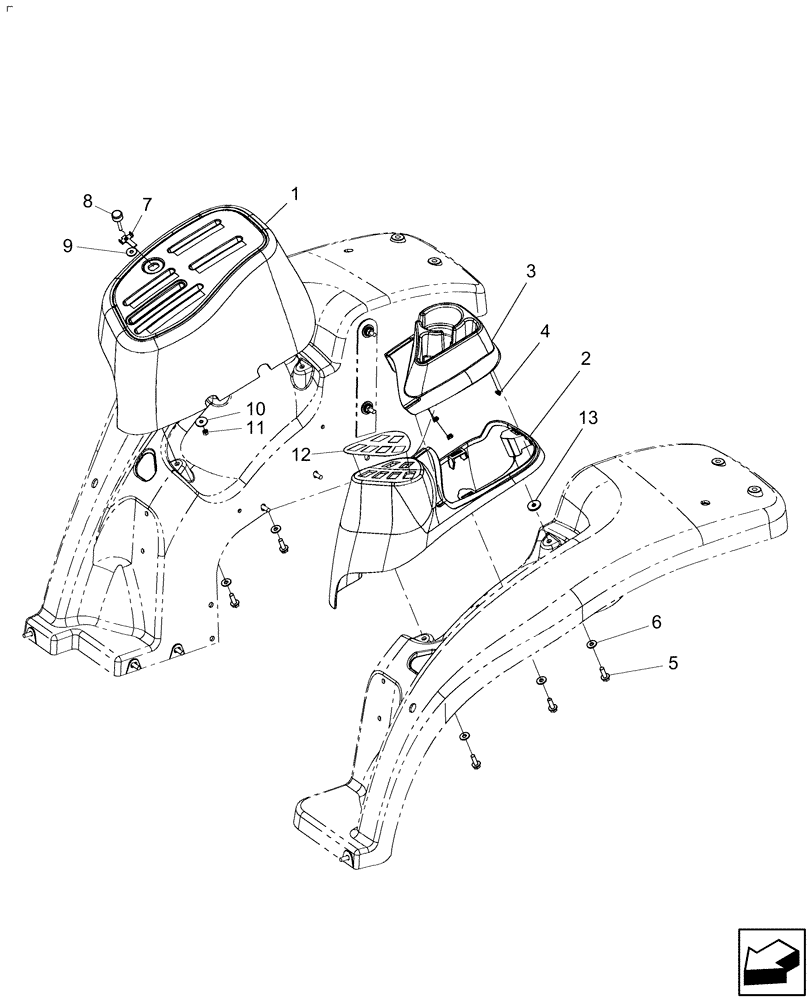

Запчасти Case IH FARMALL 40B CVT (90.116.02) - POD TOPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87743369

LEVER GUIDE

RH Pod Top

1шт.

2

87494035

PANEL

LH Pod Top

1шт.

3

87481910

HOLDER

Cap, LH Pod Top

1шт.

4

84223409

SPRING CLIP

CLIP, SPRING

3шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

6

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

6шт.

7

86558917

STOP

HPL

1шт.

8

86506579

KNOB

HPL

1шт.

9

86508357

WASHER,.28" x .90" x .06" Thk, Nylon

Black

1шт.

10

76028

WASHER,9/32" x 1" x .06" Thk

1шт.

11

86546549

NUT

1шт.

12

84533124

DECAL

LH Pod Top Switch Enhanced

1шт.

12

84529625

DECAL

LH Pod Top Switch Basic

1шт.

13

84200428

WASHER

3MM Washer W/Adhesive Backing. Washer is used to space pod top up 3mm to eliminate possible interferance with Rear Relay Cap

1шт.
