(90.100.AG[01]) - FRONT CONSOLE

Запчасти Case IH FARMALL 40B CVT (90.100.AG[01]) - FRONT CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

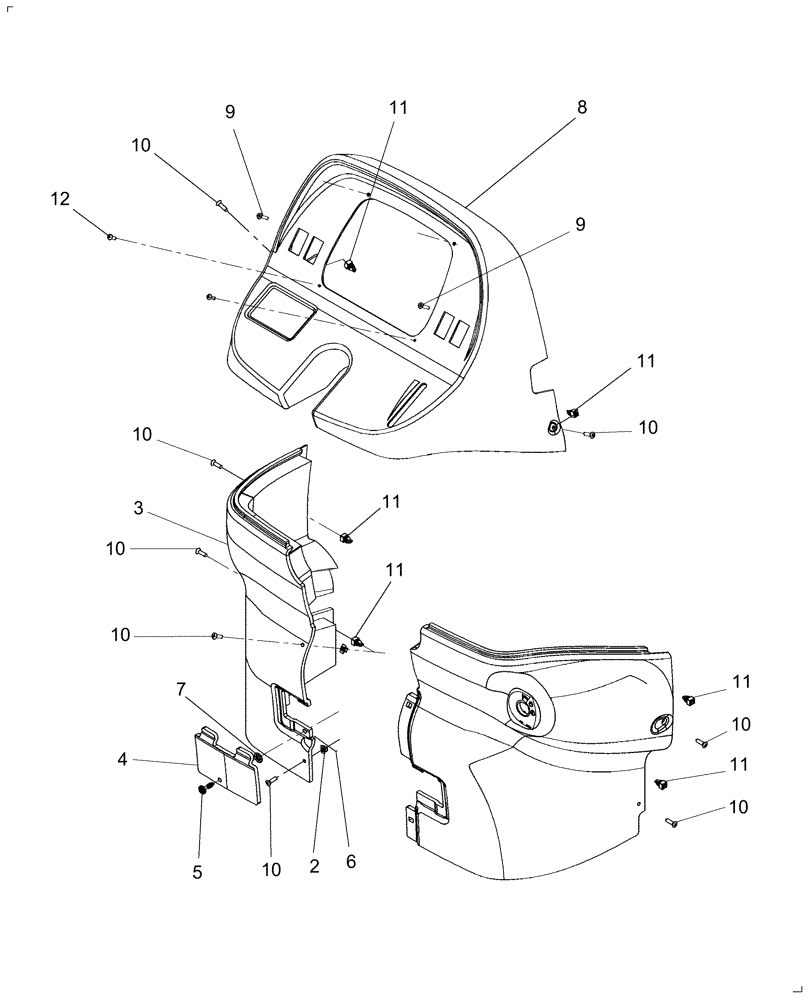

Схема запчастей Case IH FARMALL 40B CVT - (90.100.AG[01]) - FRONT CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
12
10
11
3
9
11
5
11
7
2
10
8
10
4
10
6
10
10
11
10
11
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87615428

CONSOLE

Lower Right With Foam

1шт.

1a

84150623

FOAM

Console, RH, Bottom

1шт.

Not Illustrated

1шт.

1b

87544647

FOAM

Console, RH, Top

1шт.

Not Illustrated

1шт.

1c

87544648

FOAM

Console, RH

1шт.

Not Illustrated

1шт.

2

87615567

NUT

Nut Insert #10 Self Tapping

2шт.

3

87634840

CONSOLE

Lower Left With Foam

1шт.

3a

84150622

FOAM

Console, LH, Bottom

1шт.

Not Illustrated

1шт.

3b

87544645

FOAM

Console, LH, Top

1шт.

Not Illustrated

1шт.

4

87634833

DOOR

Fuse, Wheat

1шт.

5

87644760

FASTENER

Console Fuse Door

1шт.

6

87644761

CLIP

Console Fuse Door Retaining

1шт.

7

87644762

LOCK WASHER

Console Fuse Door

1шт.

8

87692832

PANEL

Front Top

1шт.

9

86555127

SCREW,M4 x 0.7 x 23.25mm OAL, Cl 4.8, Cntr Sunk

2шт.

10

86625205

SELF-TAP SCREW

Screw, #10

8шт.

11

86404659

GROMMET

Screw

6шт.

12

758-2

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.
