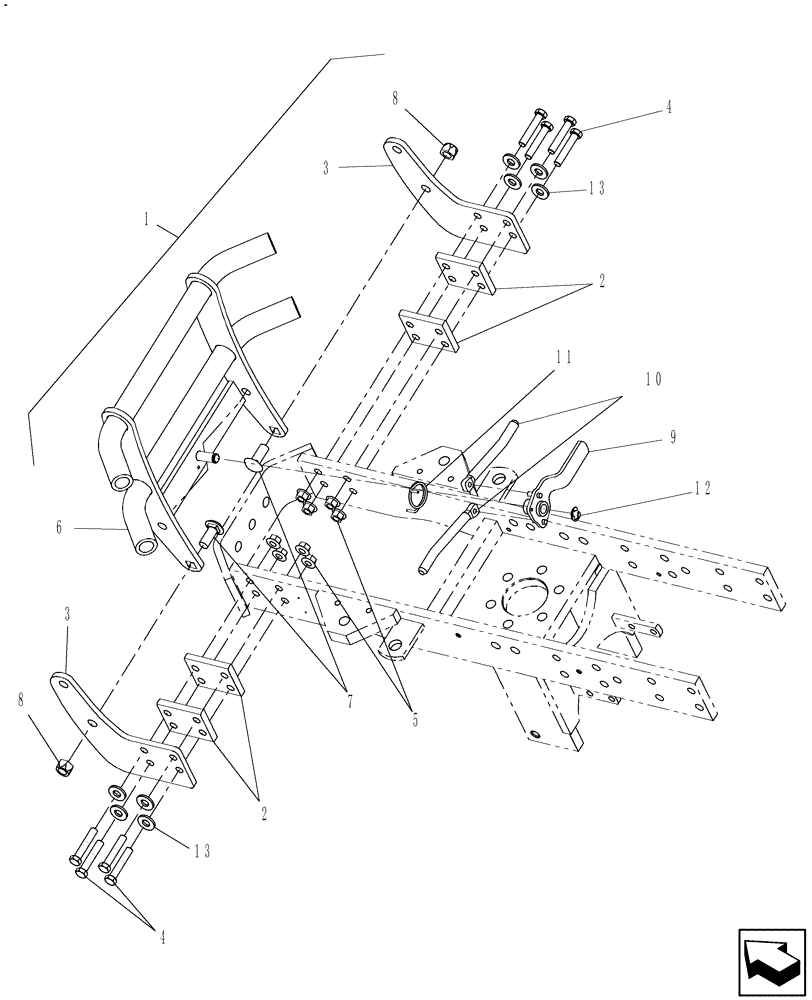

Запчасти Case IH FARMALL 40B CVT (88.090.AA[05]) - DIA KIT, GRILLE GUARD KIT (88) - ACCESSORIES

1

719849056

DIA KIT, TRACTOR

Grill Guard Includes: Ref. 2-13

1шт.

2

86404935

BRACKET

Spacer Plate, 1/2

4шт.

3

86404938

BRACKET

Grill Guard Mounting

2шт.

4

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

8шт.

5

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

6

86405012

GUARD

1шт.

7

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

8

86000441

NUT,M16 x 2.0, Cl 8

2шт.

9

86400478

HANDLE

1шт.

10

47503505

GUARD

2шт.

11

86558147

SPRING

1шт.

12

505291

LOCKING RING,#62, .480" Dia, E-Type

1шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.
