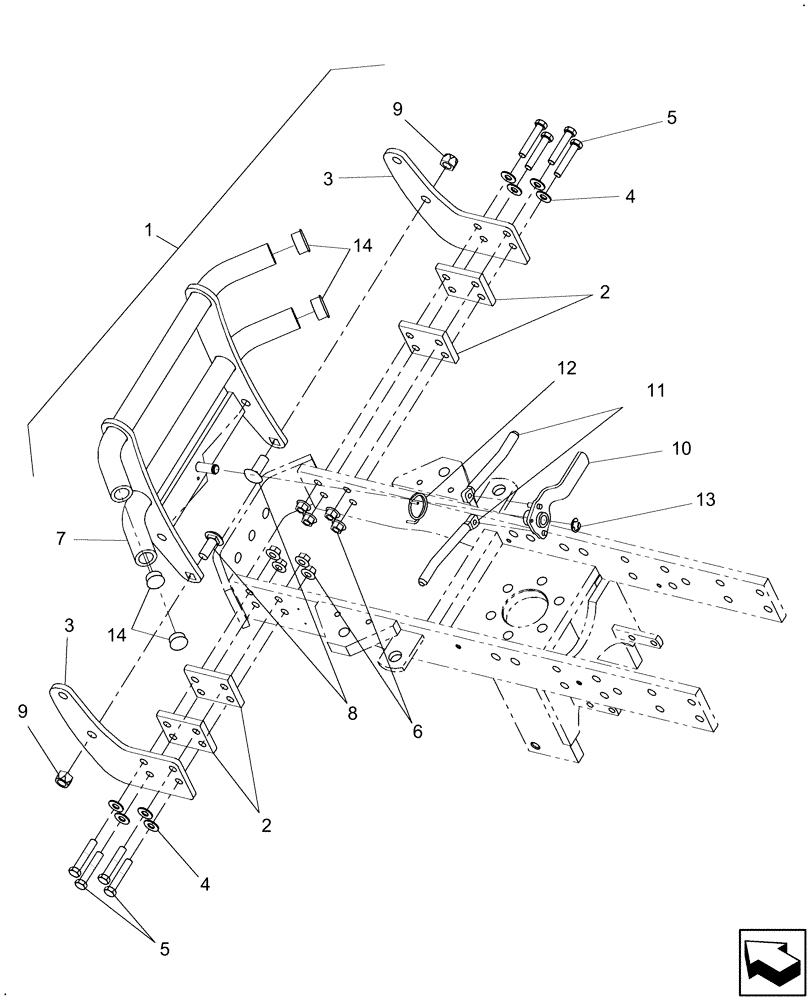

Запчасти Case IH FARMALL 40B CVT (88.090.AA[04]) - DI KIT, CHROME GRILLE GUARD (88) - ACCESSORIES

1

719849206

GUARD

Grill Guard Includes: Ref. 2-13

1шт.

2

86404935

BRACKET

Spacer Plate, 1/2

4шт.

3

86404938

BRACKET

Grill Guard Mounting

2шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

5

86977776

BOLT,Hex, M12 x 70mm, Cl 8.8, Full Thd

M12x65

8шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

7

84178932

GUARD

Chrome Grill Guard

1шт.

8

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

9

86000441

NUT,M16 x 2.0, Cl 8

2шт.

10

86400478

HANDLE

1шт.

11

86400479

GUARD

2шт.

12

86558147

SPRING

1шт.

13

505291

LOCKING RING,#62, .480" Dia, E-Type

1шт.
