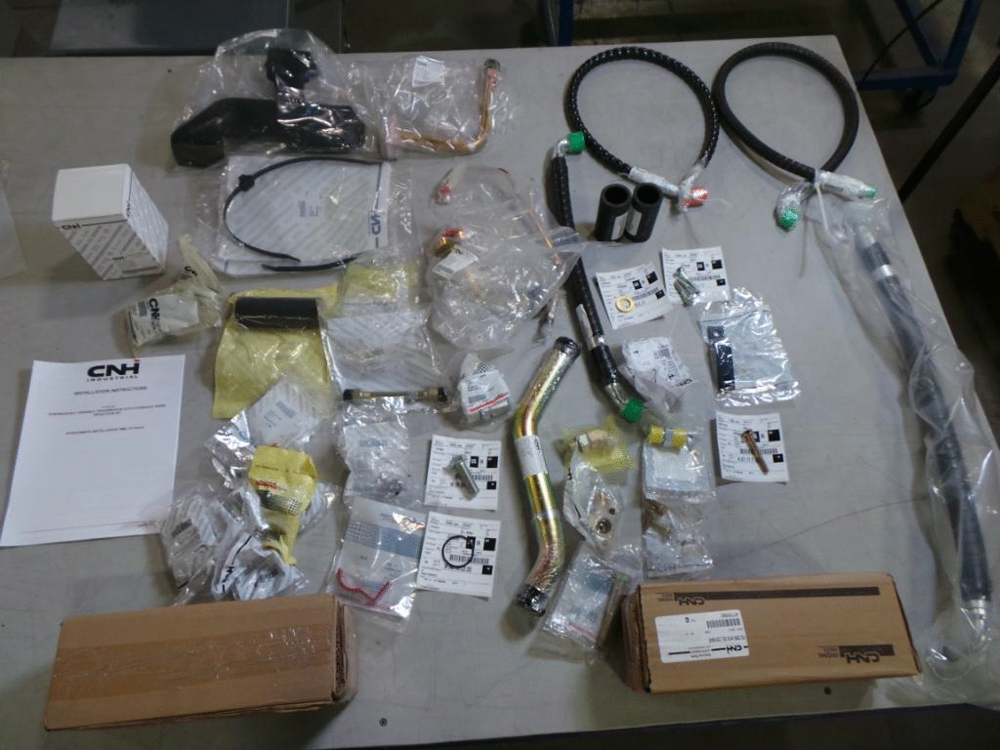

Запчасти Case IH FARMALL 40B CVT (88.035.AA[09]) - DIA KIT, HYDRAULIC SUCTION (88) - ACCESSORIES

1

47756328

DIA KIT, TRACTOR

Incl 2 - 36

1шт.

2

47801009

INSTRUCTION

1шт.

3

47763520

Filter Mounting

BRACKET

1шт.

4

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

5

47755592

HYDRAULIC OIL FILTER

2шт.

6

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

2шт.

7

87681207

BOLT,M8 x 24.1mm, Cl 10.9

8шт.

8

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

1шт.

9

47130551

45 ELBOW

1шт.

10

47753566

HYD TUBE

Trans to Screen

1шт.

11

84229821

GASKET

1шт.

12

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

13

1-32-575-303

FILTER STRAINER

1шт.

14

47755665

HYDRAULIC HOSE

2шт.

15

86637709

HOSE CLAMP,44mm - 67mm

6шт.

16

47755680

HYD TUBE

1шт.

17

87658062

HOSE,38.10 mm ID, SAE J30R6

1шт.

18

47763521

Aux Pump Outlet

HYD TUBE

1шт.

19

2975077

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

20

47756234

Aux. Pump to Filter

HYDRAULIC HOSE

1шт.

21

47763634

Loader Valve Adapter

HYDRAULIC MANIFOLD

1шт.

22

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

3шт.

23

47756314

Aux. Filter to Valve

HYDRAULIC HOSE

1шт.

24

47825665

Hyd. Steering Filter Supply

HYDRAULIC HOSE

1шт.

25

47763534

Steering Filter Return

HYDRAULIC HOSE

1шт.

26

47763535

Hyd. Filter Jumper

HYD TUBE

1шт.

27

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

28

47763536

Steering Pump Outlet

HYD TUBE

1шт.

29

47763541

BRACKET

Tube Mounting

1шт.

30

87351679

CLAMP

Front Suction Tube

1шт.

31

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

32

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

1шт.

33

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

34

86991000

CLAMP

1шт.

35

47797273

ADAPTER

1шт.

36

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

1шт.
