Запчасти Case IH FARMALL 40B CVT (88.035.AA[04]) - DIA KIT, TWO FUNCTION MID-MOUNT HYDRAULIC VALVE KIT (88) - ACCESSORIES

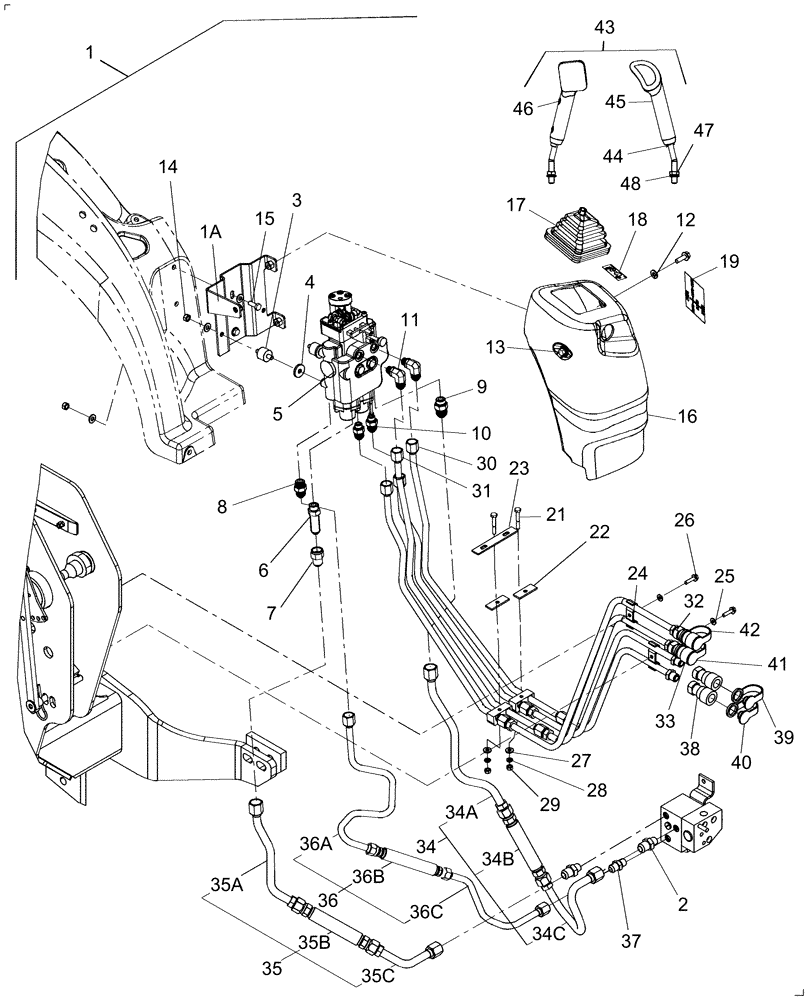

Схема запчастей Case IH FARMALL 40B CVT - (88.035.AA[04]) - DIA KIT, TWO FUNCTION MID-MOUNT HYDRAULIC VALVE KIT (88) - ACCESSORIES
40
3
9
35
19
35c
23
6
25
35a
22
21
7
35b
43
38
34a
18
2
11
29
27
34
16
47
1a
17
10
36b
42
31
32
30
26
45
36c
24
1
36
48
33
8
39
46
34c
36a
4
15
12
44
41
34b
28
37
14
5
13

Артикул

Название

Примечание

Количество

1

717654006

KIT

2 Function Mid-Mount Remote Hydraulic Valve Includes: Ref. 1A-48

1шт.

1a

87609436

BRACKET

Bracket, Valve Mount

1шт.

2

242679

HYD CONNECTOR,7/8" - 14 JIC x 3/8" - 18 NPT

2шт.

3

86567772

INSULATOR

Valve

3шт.

4

140041

WASHER,M8 x 28mm OD x 3mm Thk

3шт.

5

87571203

HYDRAULIC VALVE

Hydraulic Valve

1шт.

6

9601710

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe

Includes: Ref. 53

1шт.

7

87039394

REDUCER,37 Degree, 3/4"-16, Fem x 7/8"-14 Male

1шт.

8

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Includes: Ref. 53

1шт.

9

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Includes: Ref. 53

1шт.

10

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Includes: Ref. 54

2шт.

11

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Includes: Ref. 54

2шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

13

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

14

9635082

NUT,5/16" - 18, Gr 5

5шт.

15

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

16

87609437

PROTECTIVE COVER

Cover, Loader Control

1шт.

17

86530982

BOOT

Loader Joystick

1шт.

18

86401119

DECAL

Valve Lock

1шт.

19

86401095

DECAL

Loader Valve

1шт.

20

625822

CLAMP,1/2" Tube

1/2 Tube

2шт.

21

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

2шт.

22

86509354

PLATE,9/32" ID x 3/4" W x 2" L

Tab

2шт.

23

87673711

RETAINING PLATE

Dual Clamp

1шт.

24

86524859

CLAMP

Tube

2шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

26

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

27

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

28

80682

LOCK WASHER,1/4"

2шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

30

87691949

HYD TUBE,12.7 mm OD x 485, 432.5 mm L

A2 Port, Boom Rod, Rear (Yellow) Attaches to Valve

1шт.

30a

87470167

HYD TUBE,12.7 mm OD x 237.1, 98.8 mm L

A2 Port, Boom Rod, Front (Yellow) Not Called Out on Art, Attaches to Loader

1шт.

31

87691947

HYD TUBE,12.7 mm OD x 436.2 mm L

A1 Port, Bucket Base, Rear (Green) Attaches to Valve

1шт.

31a

87470175

HYD TUBE,12.7 mm OD x 261.9, 232.4 mm L

A1 Port, Bucket Base, Front (Green) Not Called Out on Art, Attaches to Loader

1шт.

32

87691945

HYD TUBE,12.7 mm OD x 385.5, 388.6 mm L

B1 Port, Bucket Rod, Front (Red) Attaches to Loader

1шт.

32a

87470235

HYD TUBE,12.7 mm OD x 310.9, 306.9 mm L

B1 Port, Bucket Rod, Rear (Red) Not Called Out on Art, Attaches to Valve

1шт.

33

87691948

HYD TUBE,12.7 mm OD x 385.5, 318.1 mm L

B2 Port, Boom Base, Front (Blue) Attaches to Loader

1шт.

33a

87470237

HYD TUBE,12.7 mm OD x 295.1, 213.8 mm L

B2 Port, Boom Base, Rear (Blue) Not Called Out on Art, Attaches to Valve

1шт.

34

0C

ORDER COMPONENTS

Supply Includes: Ref. 19A-19C

1шт.

34a

87470279

HYD TUBE,15.88 mm OD

Control Valve

1шт.

34b

87673257

HOSE,16.00 mm ID, SAE 100R17 Class 25

1шт.

34c

87470278

HYD TUBE,15.88 mm OD x 92.6, 82.9 mm L

Diverter Valve

1шт.

35

0C

ORDER COMPONENTS

Power Beyond Includes: Ref. 20A-20C

1шт.

35a

87470276

HYD TUBE,15.88 mm OD x 216.7, 66.9 mm L

Control Valve

1шт.

35b

87673257

HOSE,16.00 mm ID, SAE 100R17 Class 25

1шт.

35c

87470263

HYD TUBE,15.88 mm OD x 113.3, 50.3 mm L

Diverter Valve

1шт.

36

0C

ORDER COMPONENTS

Tank Includes: Ref. 21A-21C

1шт.

36a

87470260

HYD TUBE,12.7 mm OD

Control Valve

1шт.

36b

87673643

HOSE,8.00 mm ID, SAE 100R17 Class 25

1шт.

36c

87470259

HYD TUBE,12.7 mm OD

Diverter Valve

1шт.

37

163334

HYD CONNECTOR,3/4" - 16 JIC x 3/8" - 18 NPTF

1шт.

38

9846343

COUPLING,3/8" NPTF

Hydraulic, Female, O-Ring used is 122056 & Back-Up Ring used is 647327

4шт.

39

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

40

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

41

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

42

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

43

87757455

HANDLE

Control Handle Includes: Ref. 44-52

1шт.

44

86400437

SUPPORT

Handle, HST

1шт.

45

87757460

HANDLE

Handle, Control Lever

1шт.

46

82858251

SCREW,M6 x 10mm, Cl 4.8

M6, HST

2шт.

47

87891

BHD LOCK NUT,Jam, 7/16"-20, G2

1шт.

48

81547

LOCK WASHER,7/16"

1шт.
