Запчасти Case IH FARMALL 40B CVT (55.525.AL) - HAND THROTTLE ASSEMBLY (55) - ELECTRICAL SYSTEMS

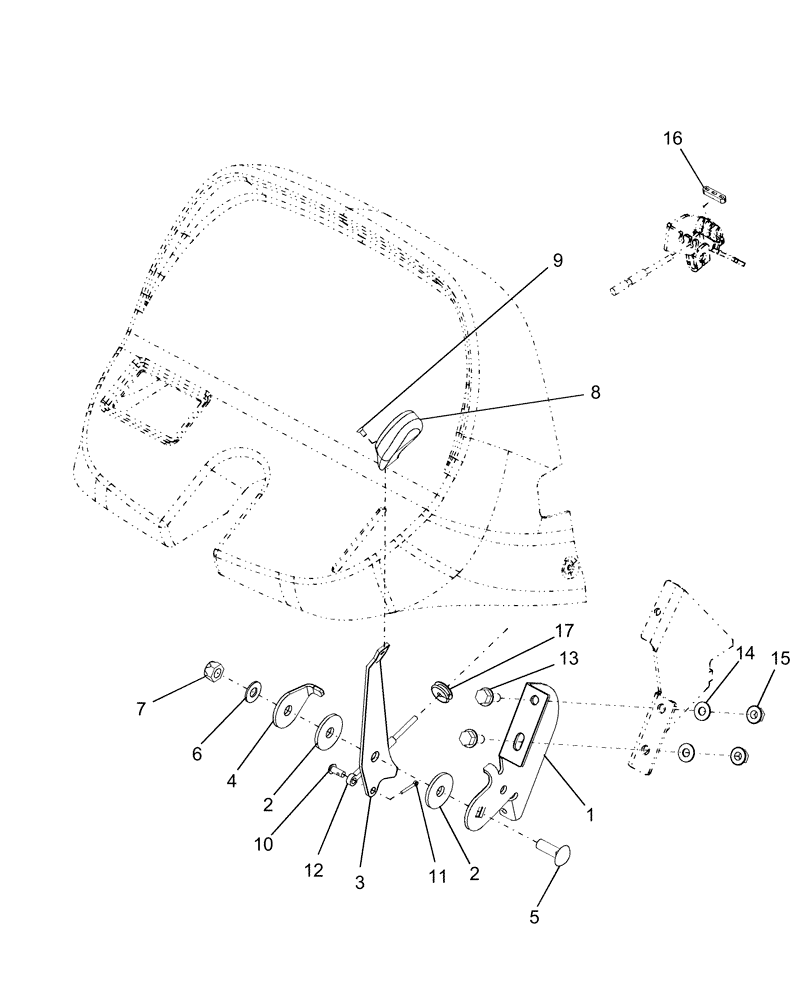

Схема запчастей Case IH FARMALL 40B CVT - (55.525.AL) - HAND THROTTLE ASSEMBLY (55) - ELECTRICAL SYSTEMS
5
9
11
1
12
14
8
2
16
13
3
6
17
4
7
2
15
10

Артикул

Название

Примечание

Количество

1

86567765

BRACKET

Hand Throttle

1шт.

2

86504705

WASHER,M11.1 x 37.9 x 3.3 Thk, Plastic

2шт.

3

87676651

SPEED CHANGE LEVER

Throttle

1шт.

4

86573736

WASHER

1шт.

5

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

8

9841607

KNOB

Throttle

1шт.

9

9844207

SCREW,Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8

1шт.

10

86534989

RIVET,Button, 6mm OD x 14mm L

1шт.

11

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

12

SBA312070220

FLEXIBLE CABLE

Throttle, Hand

1шт.

13

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

16

SBA398114451

RUBBER BUSHING

Installed on Fuel Pump Throttle Crank

1шт.

17

87373039

GROMMET

Rubber

1шт.

Выбрано товаров: 17
