Запчасти Case IH FARMALL 40B CVT (55.518.AW) - FRONT WINDSHIELD WIPER/WASHER (55) - ELECTRICAL SYSTEMS

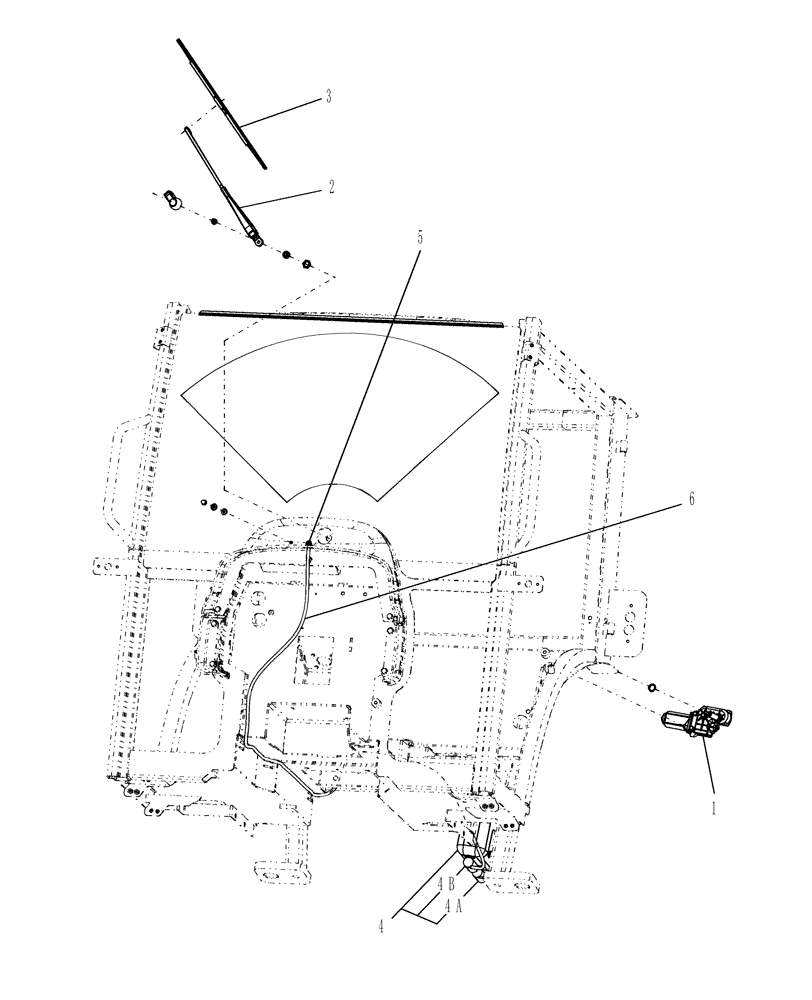

Схема запчастей Case IH FARMALL 40B CVT - (55.518.AW) - FRONT WINDSHIELD WIPER/WASHER (55) - ELECTRICAL SYSTEMS
4
6
4b
4a
2
3
5
1

Артикул

Название

Примечание

Количество

1

87325499

WIPER MOTOR

Front

1шт.

2

87417653

WIPER ARM

450mm

1шт.

Plastic Cap Included with Wiper Arm

1шт.

3

87319297

WIPER BLADE,Single, 500mm L

Blade, 500mm

1шт.

4

87337962

RESERVOIR, WINDSHIEL

Includes: Ref. 4A-4C Continue to Use Until Stock of 84293452 is Available

1шт.

4

84293452

RESERVOIR, WINDSHIEL

Includes: Ref. 4A-4C

1шт.

4a

NSS

NOT SOLD SEPARAT

Rear Washer Fluid Pump

1шт.

4b

NSS

NOT SOLD SEPARAT

Front Washer Fluid Pump

1шт.

4c

82036769

FILLER CAP

1шт.

Not Illustrated

1шт.

5

3229749R1

NOZZLE CAP

Washer Bottle

1шт.

6

87343654

WINDSHIELD WASHER

Tubing, 2300mm

1шт.

Выбрано товаров: 12
