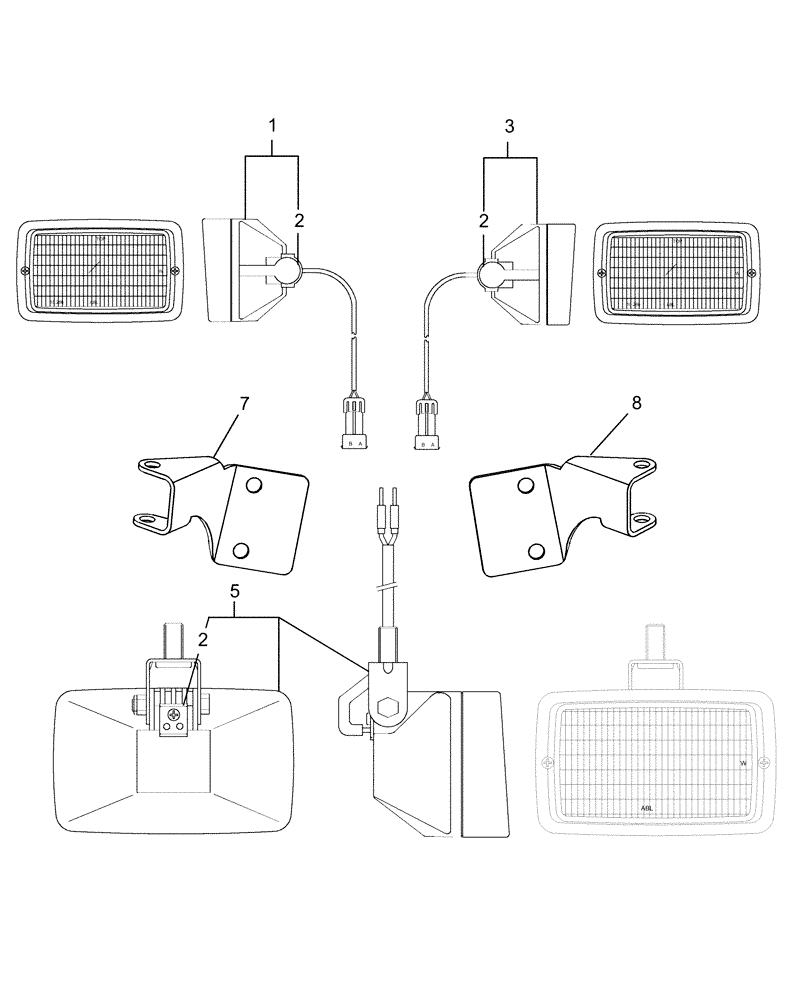

Запчасти Case IH FARMALL 40B CVT (55.404.AQ[02]) - WORK LIGHT (55) - ELECTRICAL SYSTEMS

1

87388516

LH HEADLAMP

Front Left Includes: Ref. 2

1шт.

2

14151590

BULB,H3, 12V, 55W

12.8 Volt, 55 WATT

1шт.

3

87388517

RH HEADLAMP

Front Right Includes: Ref. 4

1шт.

4

14151590

BULB,H3, 12V, 55W

12.8 Volt, 55 WATT

1шт.

5

87388518

RH HEADLAMP

Rear

2шт.

6

14151590

BULB,H3, 12V, 55W

12.8 Volt, 55 WATT

2шт.

7

87541133

BRACKET

Front Worklight, LH

1шт.

8

87541134

BRACKET

Front Worklight, RH

1шт.

10

86528579

NUT,M8 x 1.25

2шт.

Not Illustrated

1шт.

11

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

Not Illustrated

1шт.

12

87030421

GROMMET,3/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

Not Illustrated

1шт.

13

337475

NUT,M12, Cl 10

2шт.

Not Illustrated

1шт.

14

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

Not Illustrated

1шт.
