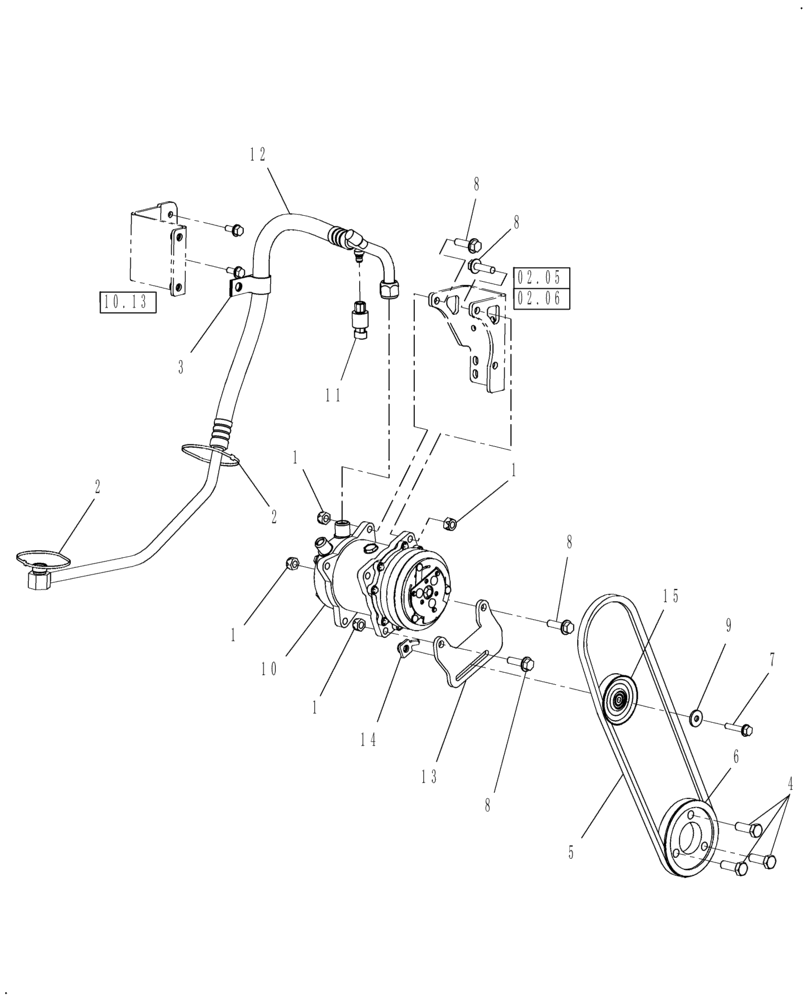

Запчасти Case IH FARMALL 40B CVT (50.200.AA[03]) - COMPRESSOR - MOUNTING (50) - CAB CLIMATE CONTROL

1

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

3

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

4

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

3шт.

5

86401123

V-BELT,13.00 mm W x 1180.00 mm L

Air Conditioner

1шт.

6

86405134

PULLEY

1шт.

7

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

8

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

1шт.

9

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

10

87362509

AIRCOND. COMPRESSOR

1шт.

87362509R

REMAN-A/C COMPRESSOR

FARMALL 40B, FARMALL 45B, FARMALL 50B All CVT W/CAB-ON & ABOVE PIN # ZCME21001

1шт.

87362509C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

11

87363058

PRESSURE SWITCH

Low Pressure

1шт.

12

87620404

HOSE

A/C Suction

1шт.

13

87693639

BRACKET

Idler Mount

1шт.

14

87693640

BRACKET

A/C Idler Guide

1шт.

15

87698090

PULLEY

A/C Idler

1шт.
