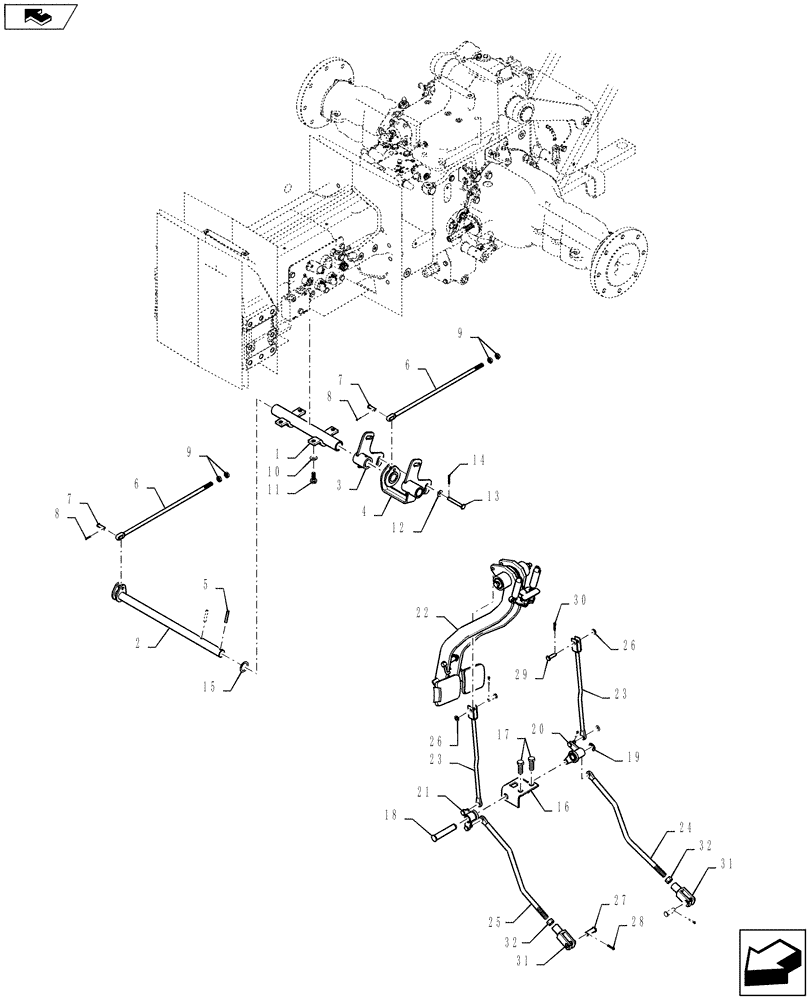

Запчасти Case IH FARMALL 40B CVT (33.202.BN[01]) - DUAL PEDAL BRAKE LINKAGE (33) - BRAKES & CONTROLS

1

87755882

PIVOT ASSY.

1шт.

2

87757816

SHAFT

Cross

1шт.

3

84419978

HUB

Hub, Brake Pedal LH

1шт.

4

84419979

BRACKET

Hub, Brake Pedal RH

1шт.

5

14607370

ROLL PIN,M8 x 45, Slotted

1шт.

6

84386397

ROD

2шт.

7

87723788

HEADED PIN

2шт.

8

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

9

10791914

THIN NUT,Thin, M12 x 1.5, Cl 04, LH

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

9840672

BOLT,Hex Serr Flg, M10 x 30mm

4шт.

12

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

4шт.

13

87668381

PIN

2шт.

14

130005

COTTER PIN,M3.2 x 32

2шт.

15

81802631

THRUST WASHER,29.02mm ID x 44.4mm OD x 2.39mm Thk

2шт.

16

84146708

BRACKET

Brake

1шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

18

86405300

SHAFT

Brake Bracket

1шт.

19

1826919

SNAP RING

1шт.

20

84146711

BELLCRANK

Inner

1шт.

21

84146710

BELLCRANK

Outer

1шт.

22

0C

ORDER COMPONENTS

Brake Pedals Refer to 33.202.BN (02) for breakdown

1шт.

23

87474863

LINKAGE

Vertical Brake

2шт.

24

84487930

LINKAGE

Linkage, Inner Pedal Brake Incl 31, 32

1шт.

25

84487890

LINKAGE

Linkage, Outer Pedal Brake Incl 31, 32

1шт.

26

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

6шт.

27

86405309

PIN

2шт.

28

80756

COTTER PIN,1/8" x 3/4"

2шт.

29

86639013

CLEVIS PIN,8mm OD x 25mm L

2шт.

30

86523849

COTTER PIN,1/16" x 3/4"

6шт.
