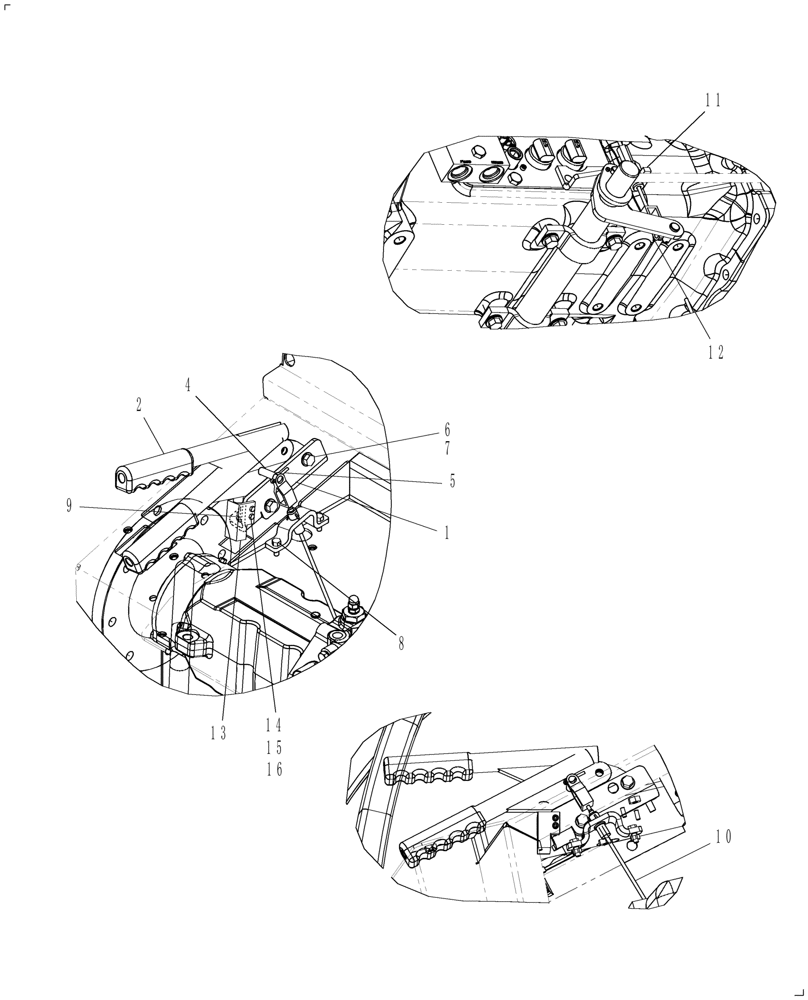

Запчасти Case IH FARMALL 40B CVT (33.110.AJ) - PARKING BRAKE - SINGLE PEDAL (33) - BRAKES & CONTROLS

1

84252716

BRACKET

Bracket, Hand Brake Mounting

1шт.

2

84268692

HANDLE

W/Rachet

1шт.

3

84219696

BRACKET

Hand Brake Cable Mounting

1шт.

4

84219700

PIN

Park Brake

1шт.

5

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

6

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

9

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

84390171

CABLE,1141mm L

Hand Brake, 2 Jam Nuts on One End & Flange on Other End

1шт.

11

84420679

BRACKET

Hand Brake

1шт.

12

86977785

COTTER PIN,M1.6 x 20mm

1шт.

13

87381850

SWITCH

Parking Brake

1шт.

14

87016468

HEX SOC SCREW,M4 x 25mm, Cl 8.8

2шт.

15

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

16

100012

NUT,M4 x 0.7, Cl 8

2шт.

17

9840274

SPACER

1шт.
