(35.100.05) - TM CONTROL VALVE - HST

Запчасти Case IH FARMALL 40B (35.100.05) - TM CONTROL VALVE - HST (35) - HYDRAULIC SYSTEMS

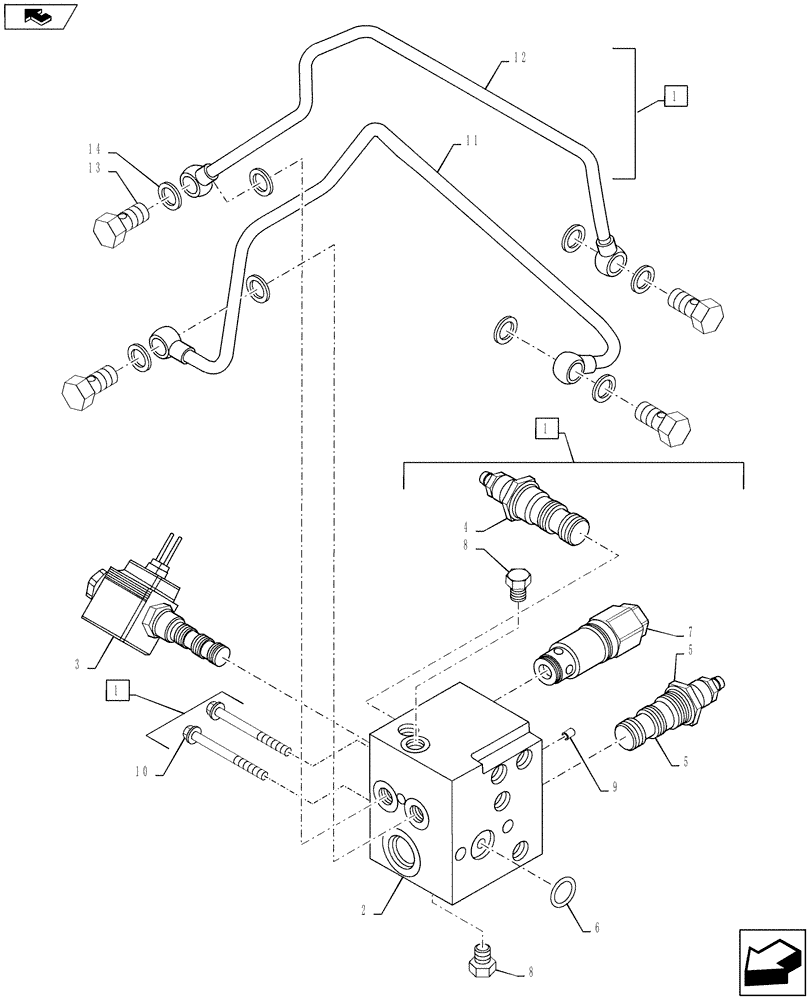

Схема запчастей Case IH FARMALL 40B - (35.100.05) - TM CONTROL VALVE - HST (35) - HYDRAULIC SYSTEMS
5
home
12
6
8
1
4
2
7
8
13
10
5
1
3
9
14
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

VALVE, PTO Includes: 2-9

1шт.

20100405

1шт.

2

MT40150459

BLOCK

PTO Valve

1шт.

3

MT40007701

VALVE

Solenoid

1шт.

4

MT40007706

RESTRICTOR VALVE

1шт.

5

MT40007666

VALVE

Sequence

1шт.

6

MT40029204

O-RING,2.4mm Thk x 15.8mm OD

D15.8 X W2.4

1шт.

7

MT40200706

VALVE

Pressure Control

1шт.

8

MT40007554

PLUG

Clutch Rod

2шт.

9

MT40007973

ORIFICE

1шт.

10

MT40028934

BOLT,Hex, M8 x 1.25 x 90mm

Hex M8 x 1.25 x 90L

2шт.

11

MT40012431

PIPE,8mm OD x .8mm Thk

PTO Clutch HST OD8 x 0.8T

1шт.

12

MT40011566

PIPE,8mm OD x .8mm Thk

PTO Lub OD8 x 0.8T

1шт.

13

MT40009919

BOLT,M12 x 1.75 x 22mm

Union, M12 x 1.75 x 22L

4шт.

14

MT40012552

SEAL,12.20mm ID x 19mm OD, 1.50mm Thk, Copper

OD19 x ID12.2 x 1.5T

8шт.
