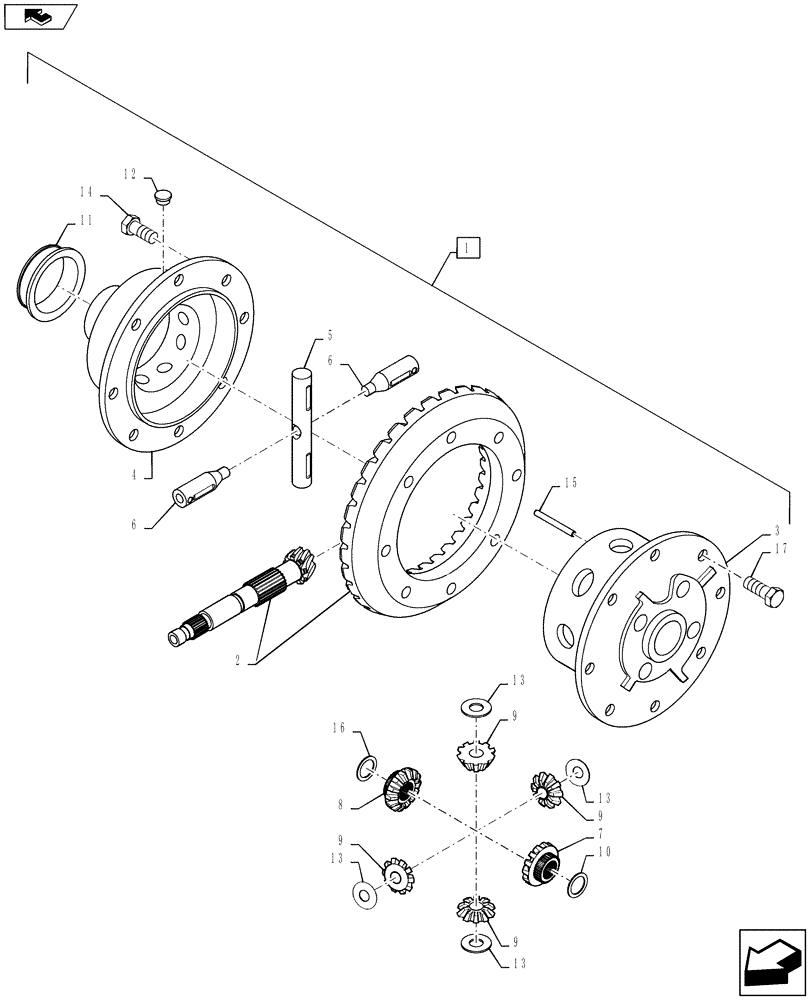

Запчасти Case IH FARMALL 40B (27.106.01) - REAR DIFFERENTIAL (27) - REAR AXLE SYSTEM

1

MT40175412

AXLE DIFFERENTIAL

Rear, Includes: 2-20

1шт.

2

MT40050167

PINION

Ring, Gear Set

1шт.

3

MT40009020

CASE

Differential 1

1шт.

4

MT40009434

CASE

Differential 2

1шт.

5

MT40213136

SHAFT

1шт.

6

MT40213137

SHAFT

2шт.

7

MT40182442

GEAR

Differential Side LH

1шт.

8

MT40182443

GEAR

Differential Side RH

1шт.

9

MT40182444

GEAR

Pinion Drive

4шт.

10

MT40012128

WASHER,55mm ID x 74mm OD x 0.8mm Thk

Thrust LH, OD74.0 x ID55.0 x 0.8L

1шт.

11

MT40009810

HUB,99mm OD x 17mm L

Differential Lock, OD99.0 x 17.0L

1шт.

12

MT40009888

ROLLER,12mm OD

D12

10шт.

13

MT40012423

WASHER,19.45mm ID x 45.07mm OD x 0.80mm Thk

Thrust, OD45.07 x ID19.45 x 0.8L

4шт.

14

MT40182447

BOLT,M8

Flange

8шт.

15

MT40029174

PIN,Spring, M6 x 50mm L

Spring, D6 x 50L

3шт.

16

MT40012426

WASHER,41.47mm ID x 71.44mm OD x 0.8mm Thk

Thrust, OD71.44 x ID41.47 x 0.8L

1шт.

17

MT40182446

BOLT,M12

Flange M12

8шт.
