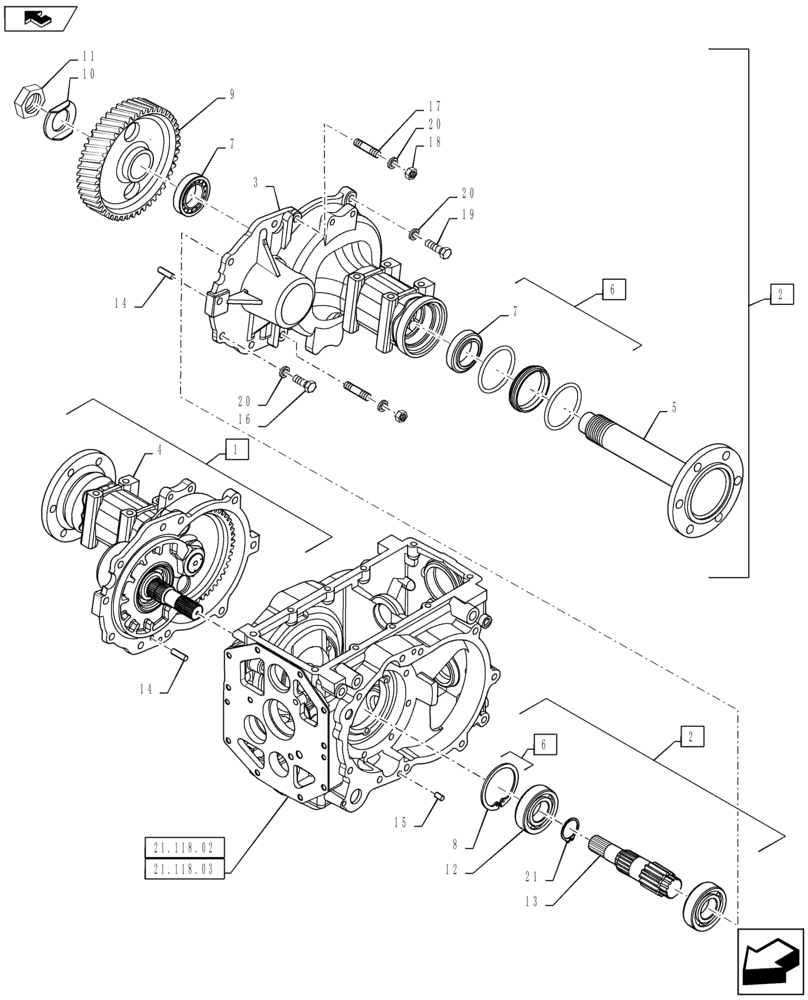

Запчасти Case IH FARMALL 40B (27.100.02) - REAR AXLE (27) - REAR AXLE SYSTEM

1

MT20100633

DRIVE

RH Includes: Ref. 4-21

1шт.

2

MT20100632

DRIVE

LH Includes: Ref. 3,5-21

1шт.

3

MT40163718

CASE

Final Drive LH

1шт.

4

MT40163724

CASE

Final Drive RH

1шт.

5

MT40163722

SHAFT

Rear Axle

2шт.

6

MT40211891

SEAL

Includes: 8

2шт.

Before SN 2105012836, 6mm Thick, After SN 2105012836 6.3mm Thick

1шт.

7

MT40010136

TAPERED BEARING,55mm ID x 90mm OD x 23mm L

OD90.0 x ID55.0 x 23.0L

4шт.

8

MT40124415

SNAP RING,M100

1шт.

9

MT40163719

GEAR

Final Drive

2шт.

10

MT40163723

PLATE

Lock

2шт.

11

MT40012791

NUT,M45 x 1.5 Pitch

Lock M45 x 1.5

2шт.

12

MT40012930

BALL BEARING

#63090

4шт.

13

MT40163721

PINION

Gear

2шт.

14

MT40116294

PIN,10mm OD x 40mm L

Spring, D10 x 40L

4шт.

15

MT40029102

PIN,M10 x 20mm L

D10 x 20L

4шт.

16

MT40029397

BOLT,Hex, M14 x 2 x 40mm

Hex, M14 x 2P x 40L

8шт.

17

MT40091897

BOLT,M14 x 2 x 50mm

Stud, M14 x 2P x 50L

4шт.

18

MT40028727

NUT,Hex, M14 x 2

Hex, 1 TY, M14 x 2P

4шт.

19

MT40029401

BOLT,Hex, M14 x 2 x 50mm

Hex, M14 x 2P x 50L

8шт.

20

MT40029083

WASHER,14.2mm ID x 24.7mm OD x 4.2mm Thk

Spring, OD24.7 x ID14.2 x 4.2T

20шт.

21

MT40029279

SNAP RING,M45

Snap, D45

2шт.
