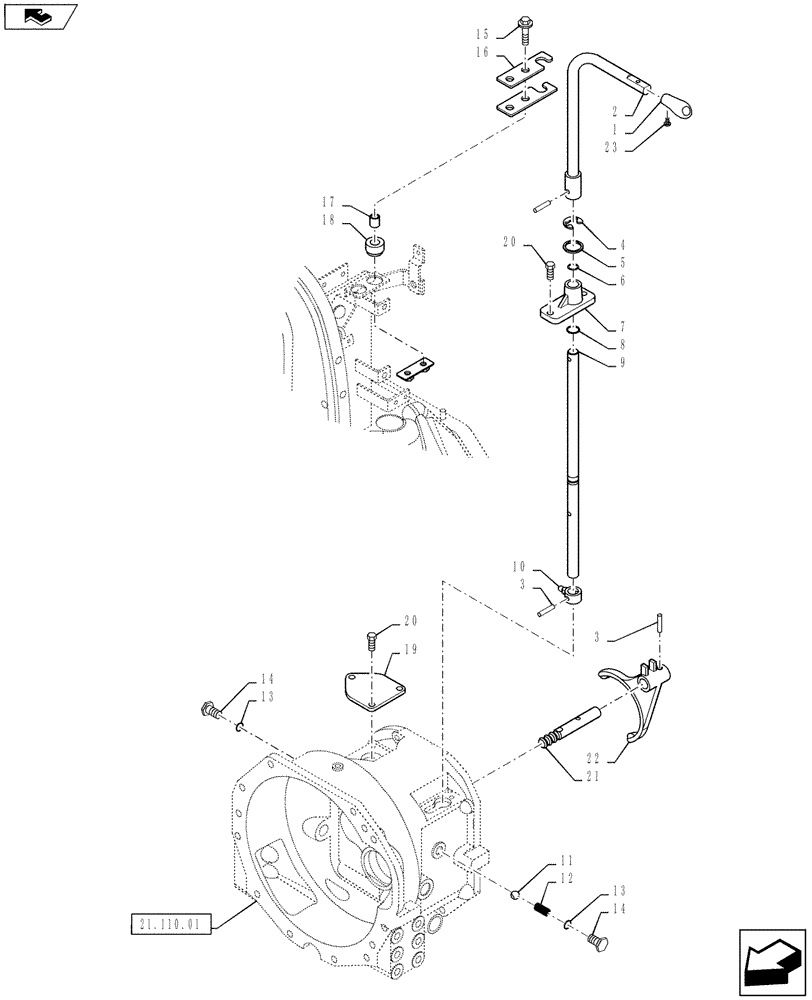

Запчасти Case IH FARMALL 40B (21.130.03) - FORWARD/REVERSE SHIFT LEVER & FORK - 16X16 (21) - TRANSMISSION

1

MT40229664

KNOB

1шт.

2

MT40012239

HANDLE

Lever, Forward/Reverse Shift

1шт.

3

MT40029167

PIN,6mm OD x 25mm L

Spring, D6 x 25L

3шт.

4

MT40029321

SNAP RING,M15

Snap, D15

1шт.

5

MT40028178

WASHER,17mm ID x 30mm OD x 3mm Thk

OD30 x ID17 x 3T

1шт.

6

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

D11.8 x W2.4

1шт.

7

MT40032414

BOSS

Boss, Forward/Reverse

1шт.

8

MT40029261

SNAP RING,M16

Snap, D16

1шт.

9

MT40009345

LEVER

Forward/Reverse, OD x 16 x 390L

1шт.

10

MT40010262

ARM

Main Shift

1шт.

11

MT40010339

BALL

Shift Fork

1шт.

12

MT40011943

SPRING,7.2mm OD x 22mm L

D1.6 x D8.75 x 26.6L

1шт.

13

MT40029196

O-RING,2.4mm Thk x 9.8mm ID

D9.8 x W2.4

2шт.

14

MT40009498

BOLT

Rail, H19

2шт.

15

MT40029011

BOLT,M8 x 1.25 x 40mm

Hex, W/Washer, M8 x P1.25 x 40L

2шт.

16

MT40012324

LEVER GUIDE

Forward/Reverse Lever, 3.2T

2шт.

17

MT40009979

SPACER,9.2mm ID x 13.8mm OD x 18mm L

Mount, OD13.8 x ID9.2 x 18L

2шт.

18

MT40007406

MOUNT,14mm ID x 20mm OD x 2mm Thk

Pedal Frame, OD20 x ID14 x 2T

2шт.

19

MT40011919

COVER

Crp. Lever, 6T

1шт.

20

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

Hex, W/Washer, M8 x P1.25 x 25L

5шт.

21

MT40009630

RAIL ASSY.,16mm OD x 120mm L

Forward/Reverse, OD16 x 120L

1шт.

22

MT40009216

FORK

Forward/Reverse, OD103

1шт.

23

MT40029019

SCREW,M5 x 0.8 x 10mm

W/Washer, M5 x P0.8 x 10L

1шт.
