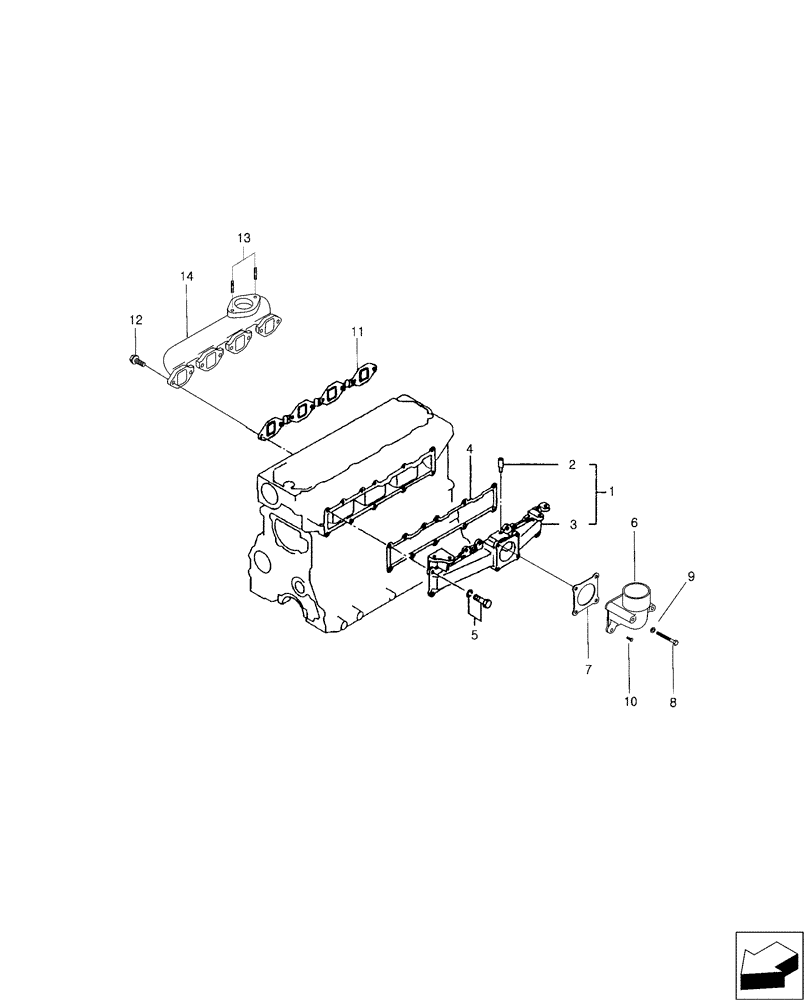

Запчасти Case IH FARMALL 40B (10.254.01) - INLET & OUTLET MANIFOLD (10) - ENGINE

1

MT20120607

INLET MANIFOLD

Includes: 2-3

1шт.

2

NSS

NOT SOLD SEPARAT

PIPE Intake Manifold, OD10.5X2T

1шт.

3

NSS

NOT SOLD SEPARAT

MANIFOLD Intake

1шт.

4

MT40006826

GASKET,1mm Thk

Intake Manifold, 1T

1шт.

5

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex, W/Washer, M8 X P1.25 X 20L

11шт.

6

MT20120608

ELBOW

Air Inlet

1шт.

7

MT40006912

GASKET

Air Inlet Elbow, OD52 X 1T

1шт.

8

MT40012793

BOLT

M6 X 1 X 85

2шт.

9

MT40029543

WASHER,6.10mm ID x 12.20mm OD x 1.50mm Thk

Spring, 12.2 X ID6.1 X 1.5T

2шт.

10

MT40028911

BOLT,Hex, M6 x 20mm

Hex, W/Washer, M6 X P1 X 20L

2шт.

11

MT40011272

GASKET,0.40mm Thk

Exhaust, 0.4T

1шт.

12

MT40028862

BOLT

Hex, M8 X P1.25 X 20L

8шт.

13

MT40028901

BOLT,M8 x 1.25 x 25mm

Stud, M8 X P1.25 X 25L

2шт.

14

MT20020371

MANIFOLD

Exhaust

1шт.
