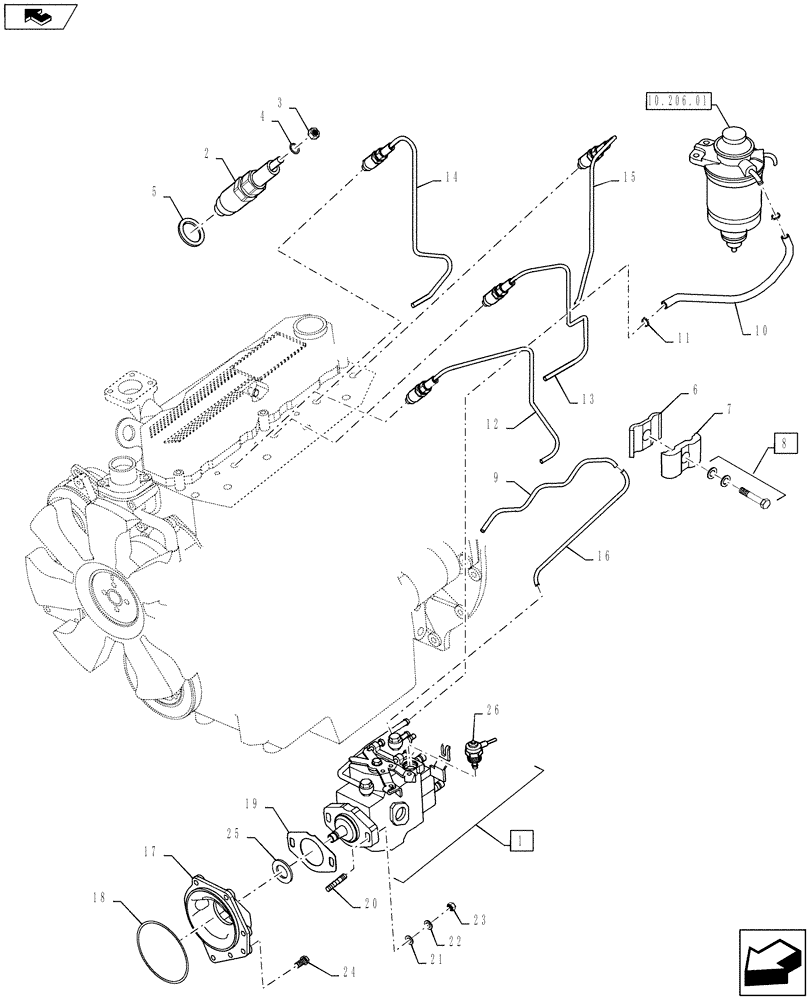

Запчасти Case IH FARMALL 40B (10.242.01) - FUEL SYSTEM - FUEL INJECTION PUMP (10) - ENGINE

1

MT40233508

FUEL INJECTION PUMP

1шт.

2

MT40007662

NOZZLE,150 Bar

Injection Pump 150BAR

4шт.

3

MT40009918

NUT,M12, 1.5 Pitch, RH

Nozzle, M12 x 1.5 (RHT)

4шт.

4

MT40011996

GASKET,12.20mm ID, 1mm Thk

Fuel RE/Pipe, ID12.2 x 1T

4шт.

5

MT40011998

GASKET,12mm ID, 1.50mm Thk

Holder, ID12 x 1.5T

4шт.

6

MT40012062

CLAMP

Injection Pipe

2шт.

7

MT40012061

CLAMP

Injection Pipe

2шт.

8

MT40028912

BOLT,Hex, M6 x 25mm

Hex,W/Washer, M6 x P1 x 25L

2шт.

9

MT40011564

PIPE,4.76mm OD x 0.70mm Thk

Fuel Leak Off, OD4.76 x .7T

1шт.

10

MT40007533

FUEL HOSE,7mm ID x 450mm L

ID7 x 450L

1шт.

11

MT40012020

HOSE CLAMP,8mm -16mm

Hose, MIN D8 x MAX D16

2шт.

12

MT40011025

PIPE,6mm OD x 2.50mm Thk

Injection NO1, OD6 x 2.5T

1шт.

13

MT40011026

PIPE,6mm OD x 2.50mm Thk

Injection NO2, OD6 x 2.5T

1шт.

14

MT40011027

PIPE,6mm OD x 2.50mm Thk

Injection NO3, OD6 x 2.5T

1шт.

15

MT40011028

PIPE,6mm OD x 2.50mm Thk

Injection NO4, OD6 x 2.5T

1шт.

16

MT40011024

PIPE,6.35mm OD x 0.70mm Thk

Fuel Return, OD6.35 x 0.7T

1шт.

17

MT40009042

FLANGE

Injection Pump

1шт.

18

MT40007391

O-RING,114.50mm ID x 118.50mm OD x 2mm

Oil Level, OD118.5 x ID114.5 x 2T

1шт.

19

MT40006910

GASKET,52mm ID, 0.50mm Thk

Injection Pump, ID52 x 0.5T

1шт.

20

MT40028902

BOLT

Stud, M8 x P1.25 x 30L

2шт.

21

MT40012090

RETAINER,8mm ID x 17mm OD x 3mm Thk

Upper, OD17 x ID8 x 3T

2шт.

22

MT40029546

WASHER,8.20mm ID x 15.40mm OD x 2mm Thk

Spring, OD15.4 x ID8.2 x 2T

2шт.

23

MT40029041

NUT,M8 x 1.25

Hex, Small, M8 x P1.25

2шт.

24

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex, W/Washer, M8 x P1.25 x 20L

1шт.

25

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring, OD24.5 x ID14.2 x 3.5T

1шт.

26

MT40150541

SOLENOID

1шт.
