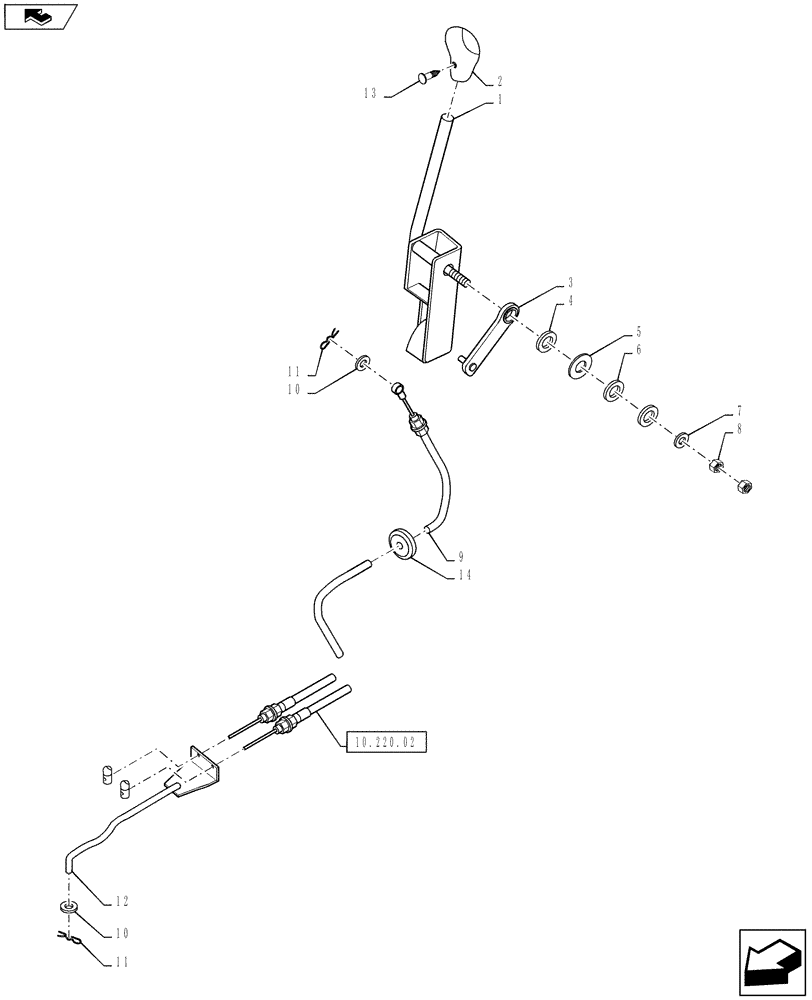

Запчасти Case IH FARMALL 40B (10.220.01) - ENGINE CONTROL - ACCELERATOR LEVER & CONTROL (10) - ENGINE

1

MT40012362

LEVER

Accelerator, D12

1шт.

2

MT40008389

KNOB

1шт.

3

MT40011897

ARM

Engine Control, 4.5T

1шт.

4

MT40028172

WASHER,13mm ID x 24mm OD x 2.5mm Thk

OD24 x ID13 x 2.5T

1шт.

5

MT40008339

FRICTION WASHER,13mm ID x 28mm OD x 2mm Thk

Friction, OD28 x ID13 x 2T

1шт.

6

MT40029087

WASHER,13mm ID x 24mm OD x 2.2mm Thk

Spring, OD24 x ID13 x 2.2T

2шт.

7

MT40028169

WASHER,8.40mm ID x 17mm OD x 1.60mm Thk

OD17 x ID8.4 x 1.6T

1шт.

8

MT40029040

NUT,Hex, M8 x 1.25

Hex, Small, M8 x P1.25

2шт.

9

MT40007938

CABLE

WIRE Accelerator Lever, 975L

1шт.

10

MT40008407

WASHER

Plastic

2шт.

11

MT40029130

PIN,M6

Snap, D6x0L

2шт.

12

MT40011987

CONNECTING ROD

Engine Control, D5.5

1шт.

13

MT40029019

SCREW,M5 x 0.8 x 10mm

W/Washer, M5 x P0.8 x 10L

1шт.

14

MT40007409

GROMMET,23mm ID x 29mm OD x 3.5mm Thk

OD29 x ID23 x 3.5T

1шт.
