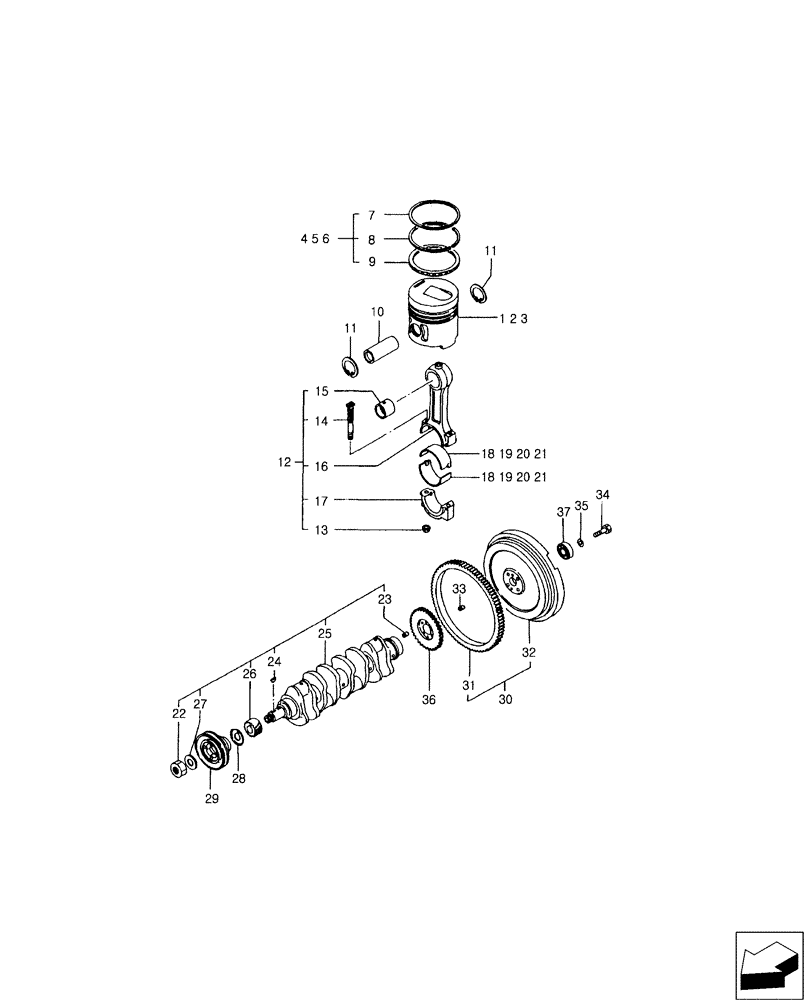

Запчасти Case IH FARMALL 40B (10.103.01) - CRANKSHAFT (10) - ENGINE

1

MT40233509

PISTON

4шт.

2

MT40156921

PISTON,O/S 0.25

0.25mm

4шт.

3

MT40156924

PISTON,O/S 0.50

0.50mm

4шт.

4

MT40055313

RING,Std

Piston Set STD

4шт.

5

MT40156863

RING,O/S 0.25

Piston Set 0.25mm

4шт.

6

MT40156866

RING,O/S 0.50

Piston Set 0.50mm

4шт.

7

MT40007903

RING,88mm OD

1ST, OD88

4шт.

8

MT40007840

RING,88mm OD

2ND, OD88

4шт.

9

MT40007799

RING

Oil

4шт.

10

MT40010195

PIN

Piston

4шт.

11

MT40029291

RING,M28

Snap, D28

8шт.

12

MT40006974

EXCHANGE CONROD

Incl 13-17, Years: -31-AUG-11

4шт.

12

MT40261263

CONNECTING ROD

Incl 13-17, Start Year: 01-SEP-11, Serial Range: -2103015020

4шт.

12

MT40304464

CONNECTING ROD

Incl 13-17, Start Serial: 2103015021

4шт.

13

MT40009506

NUT

Con. Rod, M10 x 1, Years: -31-AUG-11

8шт.

13

MT40253675

NUT

Con Rod, Start Year: 01-SEP-11, Serial Range: -2103015020

8шт.

14

MT40009564

BOLT

Con. Rod, Years: -31-AUG-11

8шт.

14

MT40253674

BOLT

Con Rod, Start Year: 01-SEP-11, Serial Range: -2103015020

8шт.

14

MT40306751

BOLT

Con Rod, Start Serial: 2103015021

8шт.

15

NSS

NOT SOLD SEPARAT

BUSHING Con. Rod, OD21 x 1.62T x 33L

4шт.

16

MT40009031

CONNECTING ROD

Connecting Rod, Years: -31-AUG-11

4шт.

16

NSS

NOT SOLD SEPARAT

, Start Year: 01-SEP-11

4шт.

17

NSS

NOT SOLD SEPARAT

Connecting Rod

4шт.

18

MT40232833

BEARING

Con. Rod, STD

8шт.

19

MT40156896

BEARING,U/S 0.25

Con. Rod, U.S. 0.25

8шт.

20

MT40156899

BEARING,U/S 0.50

Con. Rod, U.S. 0.50

8шт.

21

NSS

NOT SOLD SEPARAT

Con. Rod, U.S. 0.75

8шт.

22

MT40012898

NUT,M24 x 1.5 Pitch

M24X1.5

1шт.

23

MT40012801

PIN,10mm OD x 20mm L

Dowel, OD10 x 20L

2шт.

24

MT40012799

KEY

2шт.

25

MT40009211

CRANKSHAFT

1шт.

26

MT40010099

GEAR,30mm ID x 55mm OD x 27.50mm W

Crankshaft, OD55 x ID30 x 27.5W

1шт.

27

MT40012121

WASHER,25mm ID x 52mm OD x 1.20mm

Crankshaft, OD52 x ID25 x 1.2T

1шт.

28

MT40011829

PLATE,1mm Thk

Baffle, 1T

1шт.

29

MT40009209

PULLEY

Crankshaft

1шт.

30

MT20101216

BALER FLYWHEEL

Includes: 31-32

1шт.

31

MT40010019

GEAR

Ring, OD337.3 x ID304 x 15W

1шт.

32

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

33

MT40012801

PIN,10mm OD x 20mm L

Dowel, OD10 x 20L

2шт.

34

MT40028893

BOLT,Hex, M12 x 1.25 x 60mm

Hex., M12 x P1.25 x 60L

4шт.

35

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spr., OD21.5 x ID12.2 x 3T

4шт.

36

MT40009241

GEAR,40mm ID x 159.98mm OD x 10mm W

Balancer Drive, OD159.98 x ID40 x 10W

1шт.

37

MT40007801

BALL BEARING

1шт.
