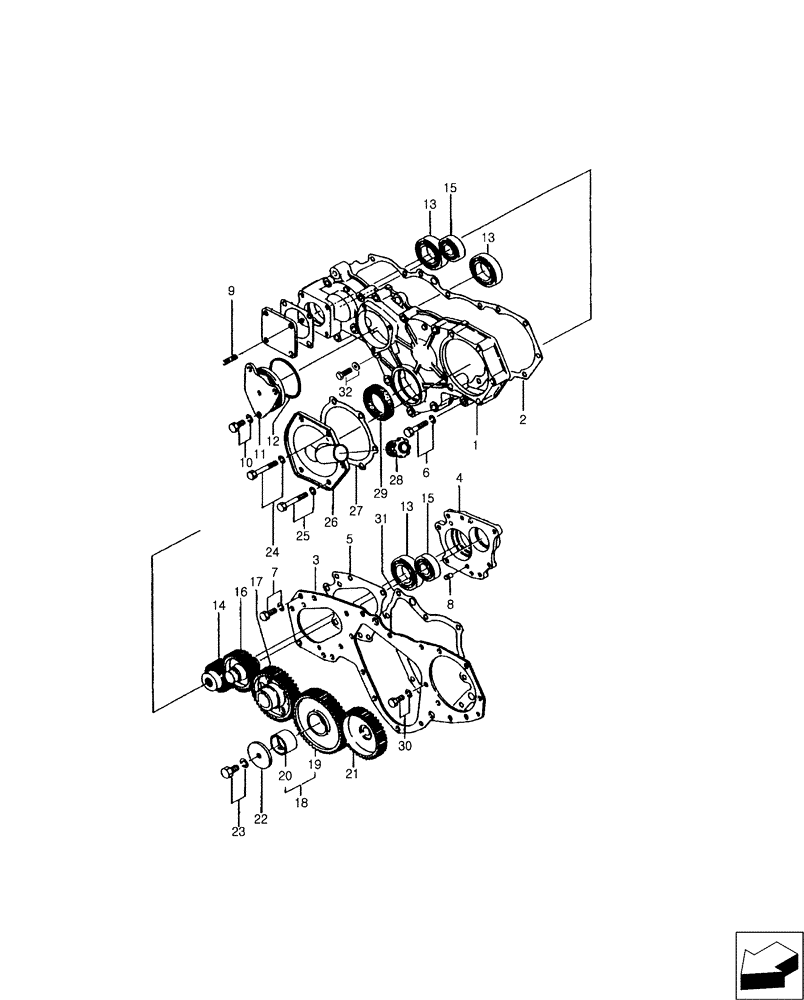

Запчасти Case IH FARMALL 40B (10.102.01) - TIMING GEAR CASE & TIMING GEAR (10) - ENGINE

1

MT20020985

CASE

Timing Gear

1шт.

2

MT40006821

GASKET,0.50mm Thk

Timing Gear Case, 0.5T

1шт.

3

MT40011251

PLATE,4.50mm Thk

Front PTO, 4.5T

1шт.

4

MT40029911

CASE

Bearing

1шт.

5

MT40006929

GASKET,0.50mm Thk

Bearing Case, 0.5T

1шт.

6

MT40028929

BOLT,Hex, M8 x 1.25 x 55mm

Hex, M8 x P1.25 x 55L

1шт.

7

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

Hex, M8 x P1.25 x 20L

2шт.

8

MT40009487

PIN,M9 x 19mm L

Dowel, D9 x 19L

2шт.

9

MT40028901

BOLT,M8 x 1.25 x 25mm

Stud, M8 x P1.25 x 25L

4шт.

10

MT40028919

BOLT,Hex, M8 x 1.25 x 16mm, W/ Wshr

Hex, M8 x P1.25 x 16L

3шт.

11

MT40009586

CASE

Bearing

1шт.

12

MT40029228

O-RING,74.40mm Dia x 3.10mm

D74.4 x W3.1

1шт.

13

MT40012698

BALL BEARING

#60080

3шт.

14

MT40009280

GEAR,12mm ID x 55mm OD x 26mm W

Pump Drive, OD55 x ID12 x 26W

1шт.

15

MT40012703

BALL BEARING

#62050

2шт.

16

MT40009877

IDLER

PTO

1шт.

17

MT40009338

GEAR,30mm ID x 105mm OD x 22mm W

Camshaft, OD105 x ID30 x 22W

1шт.

18

MT40234512

IDLER GEAR

Gear Assembly Includes: 19-20

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR Idler

1шт.

20

NSS

NOT SOLD SEPARAT

BUSHING Idler

1шт.

21

MT40009337

GEAR,20mm ID x 105mm OD, 1/5 Tpr

Injection Pump, OD105 x ID20 (1/5TAPER)

1шт.

22

MT40011909

PLATE,4.50mm Thk

Thrust, 4.5T

1шт.

23

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

Hex, M10 x P1.25 x 20L

1шт.

24

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

Hex, M8 x P1.25 x 60L

4шт.

25

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

Hex, M8 x P1.25 x 60L

1шт.

26

MT40184509

FILLER

Oil

1шт.

27

MT40006854

GASKET,1.50mm Thk

Oil Filler,1.5T

1шт.

28

MT40007385

CAP

Filler

1шт.

29

MT40007386

SEAL

Oil

1шт.

30

MT40028919

BOLT,Hex, M8 x 1.25 x 16mm, W/ Wshr

Hex, M8 x P1.25 x 16L

2шт.

31

MT40006825

GASKET,0.50mm Thk

Front Plate, 0.5T

1шт.

32

MT40028928

BOLT,Hex, M8 x 1.25 x 50mm

Hex, M8 x P1.25 x 50L

13шт.
