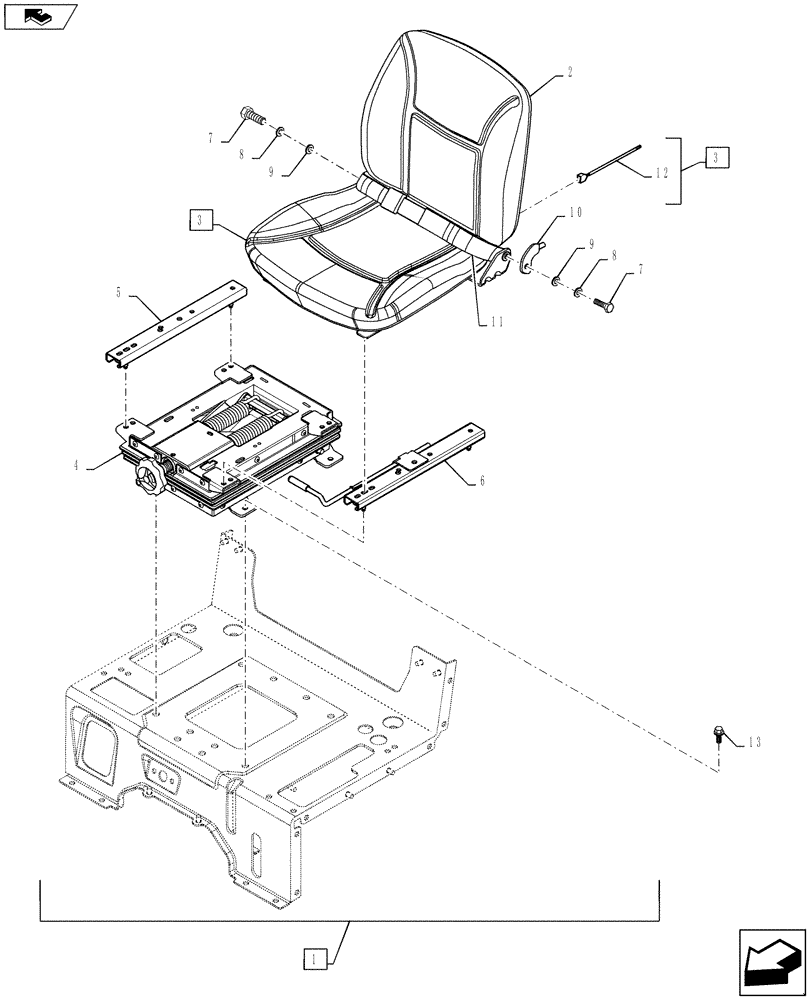

Запчасти Case IH FARMALL 40B (90.120.02) - SEAT - HST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40231819

SEAT

Black Includes: Ref. 2-11

1шт.

2

MT40231811

CUSHION

Rear

1шт.

3

MT40231816

CUSHION

1шт.

4

MT40231810

SUSPENSION

1шт.

5

MT40231808

SLIDE

RH

1шт.

6

MT40231809

SLIDE

LH

1шт.

7

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

Hex, M10 x 1.5 x 25L

2шт.

8

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

Spring, OD18.4 x ID10.2 x 2.5T

2шт.

9

MT40028158

WASHER,10.50mm ID x 18mm OD x 2mm Thk

OD18 x ID10.5 x 2T

2шт.

10

MT40241213

CLIP

Belt

1шт.

11

MT40241212

SEAT BELT

1шт.

12

MT40244877

SWITCH

Seat Safety

1шт.

13

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

Hex W/Washer M10 x 1.25 x 25L

4шт.
