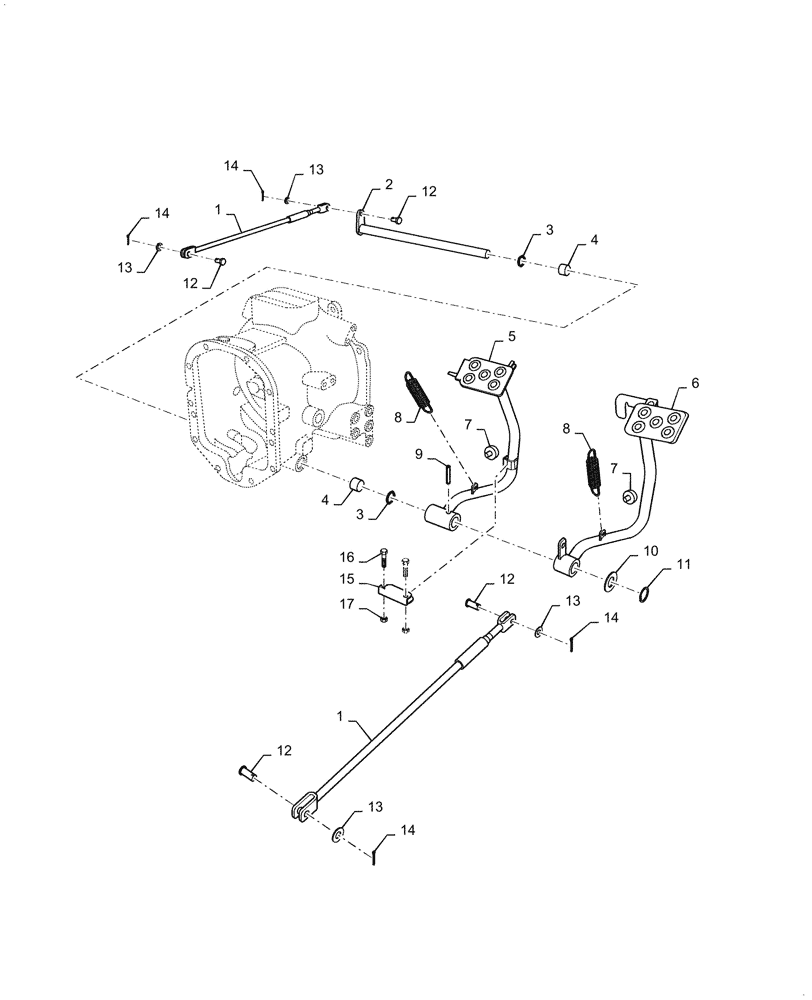

Запчасти Case IH FARMALL 40A (33.120.020) - BRAKE PEDALS, MECHANICAL TRANSMISSION (33) - BRAKES & CONTROLS

1

MT40013034

ROD,615mm L

Brake

2шт.

2

MT40244878

SHAFT

Brake Pedal

1шт.

3

MT40029211

O-RING,3.50mm Thk x 24.70mm ID

2шт.

4

MT40009874

BUSHING

2шт.

5

MT40279728

PEDAL

LH, Brake

1шт.

6

MT40228993

PEDAL

RH, Brake

1шт.

7

MT40007478

RUBBER SLEEVE,M8 x 1.25 x 20mm L

2шт.

8

MT40011960

SPRING,18mm OD x 115mm L

2шт.

9

MT40029179

PIN,Spring, M8 x 40mm L

1шт.

10

MT40028184

WASHER,25mm ID x 44mm OD x 4mm Thk

1шт.

11

MT40029271

SNAP RING,M25

1шт.

12

MT40009617

PIN,10mm ID x 14mm OD x 26mm L

4шт.

13

MT40028171

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

14

MT40029121

PIN,25mm OD x 20mm L

4шт.

15

MT40228564

SWITCH

Proximity

1шт.

16

MT40094801

BOLT,M5 x .8 x 30mm L

2шт.

17

MT40029072

FLANGE NUT,M5 x 0.8

2шт.
