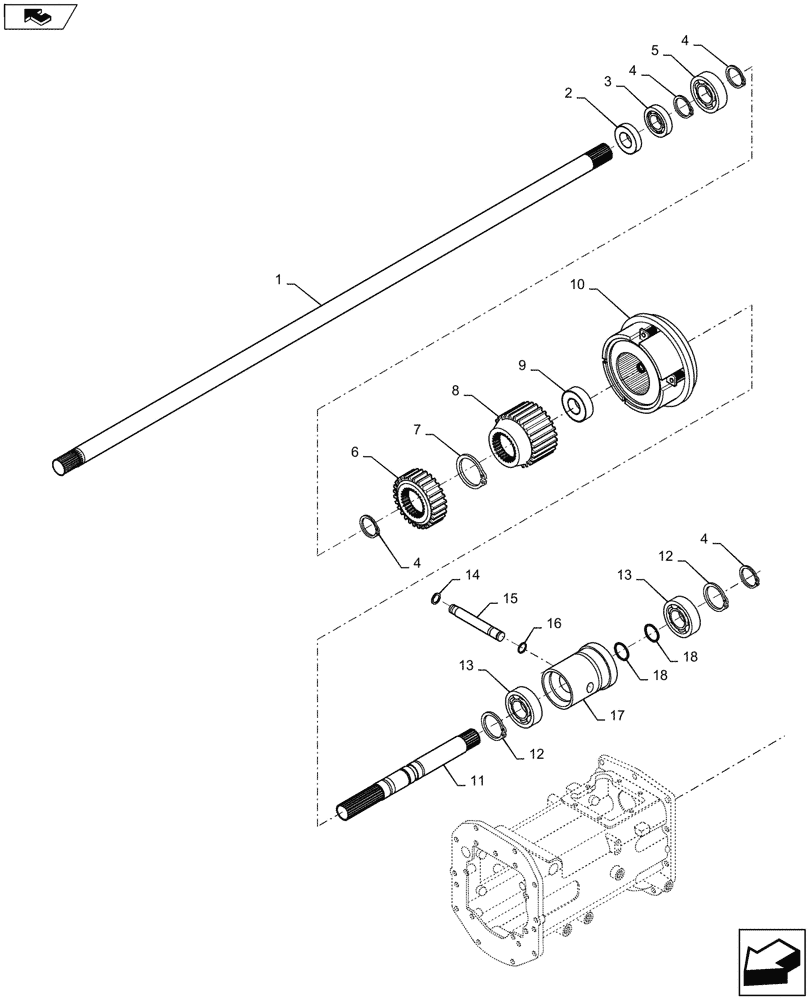

Запчасти Case IH FARMALL 40A (31.110.020) - PTO SHAFT - MECHANICAL, TRANSMISSION (31) - IMPLEMENT POWER TAKE OFF

1

MT40291693

PTO SHAFT,20mm OD x 693L

Main PTO, O.D. 20 X 600 L

1шт.

2

MT40290027

SEAL,20mm ID x 30mm OD x 7mm Thk

Oil

1шт.

3

MT40012722

BALL BEARING

1шт.

4

MT40029265

SNAP RING,M20

D20

4шт.

5

MT40012702

BALL BEARING

1шт.

6

MT40010037

JOINT,39.7mm OD x 17.5mm ID x 16L

Hyd Clutch Hub Joint, O.D. 39.75 X I.D. 17.5 X 16 L

1шт.

7

MT40029277

SNAP RING,M40

D40

1шт.

8

MT40009734

HUB,59.667mm OD x 38.5mm ID x 41.3L

PTO Hyd Clutch, O.D. 59.667 X I.D. 37.5 X 4.5 L

1шт.

9

MT40012696

BALL BEARING

1шт.

10

MT40007685

CLUTCH

Assy, PTO

1шт.

11

MT40009655

SHAFT,25mm OD x 252L

IND PTO Drive, O.D. 25 X 252 L

1шт.

12

MT40029271

SNAP RING,M25

D25

2шт.

13

MT40012697

BALL BEARING

2шт.

14

MT40029238

O-RING,1.50mm Thk x 7.50mm ID

D7.5 X 1.5 W

1шт.

15

MT40009793

PIPE,9.8mm OD x 3.5mm ID x 104L

Hyd Clutch Input, O.D. 9.8 X I.D. 3.5 X 104 L

1шт.

16

MT40029237

O-RING,1.50mm Thk x 6.50mm ID

D6.5 X 1.5 W

1шт.

17

MT40247456

SLEEVE

Hyd Clutch

1шт.

18

MT40258413

OIL SEAL,25.14mm OD x 2.5mm Thk

Ring

2шт.
