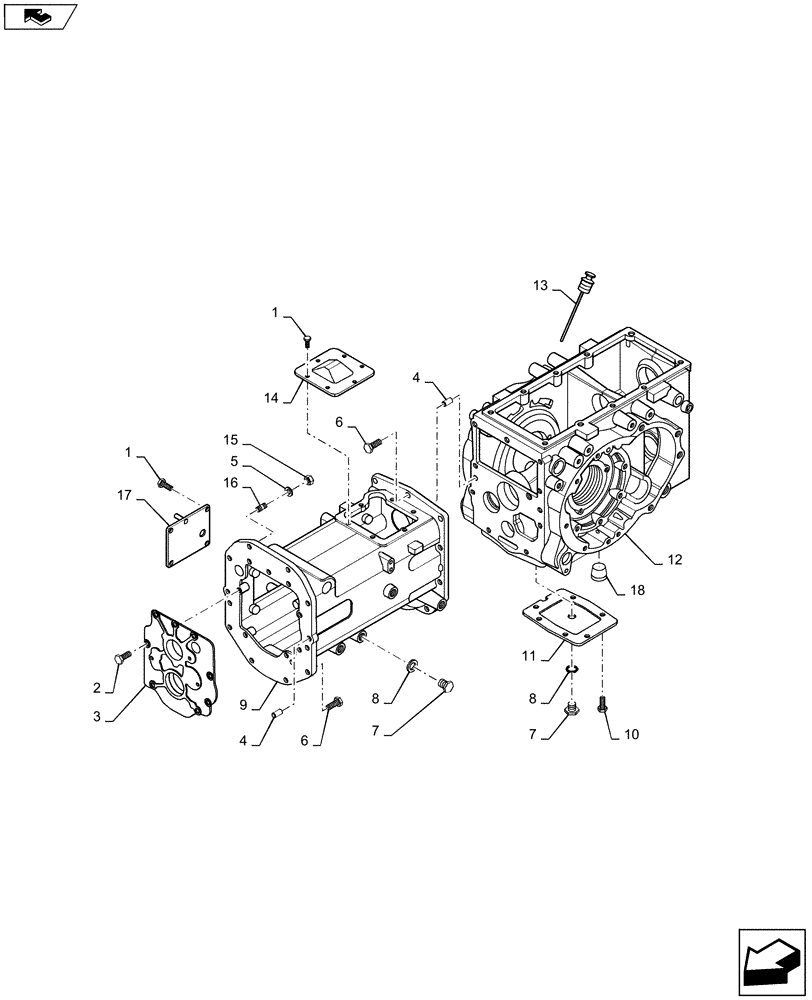

Запчасти Case IH FARMALL 40A (21.120.020) - HYDROSTATIC TRANSMISSION, HOUSING (21) - TRANSMISSION

1

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

Assy Hex W/Washer

10шт.

2

MT40028949

BOLT,Hex, M10 x 1.25 x 30mm

Assy Hex W/Washer

3шт.

3

MT40276109

COVER

Transmission Housing

1шт.

4

MT40029102

PIN,M10 x 20mm L

5шт.

5

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

Spring

4шт.

6

MT40028939

BOLT,Hex, M12 x 1.75 x 35mm

Assy Hex W/Washer

15шт.

7

MT40229917

PLUG

Magnetic

2шт.

8

MT40229916

SEAL,20mm ID x 26mm OD x 1.5mm L

Magnetic Plug

2шт.

9

MT40232266

CASE

Center HST

1шт.

10

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

Assy Hex W/Washer

6шт.

11

MT40009186

COVER

M/PTO

1шт.

12

MT20110746

AXLE

M/PTO

1шт.

13

MT40007443

GAUGE

Transmission Oil Level, Transmission Dipstick

1шт.

14

MT40011486

COVER,2.3mm Thk

PTO Clutch, 2.3 T

1шт.

15

MT40028771

NUT,M12 x 1.75

Hex

4шт.

16

MT40028903

BOLT,Stud, M12 x 1.75 x 35mm

4шт.

17

MT40011435

COVER

Center Case

1шт.

18

MT40241604

PLUG,3/4"

Taper

1шт.
