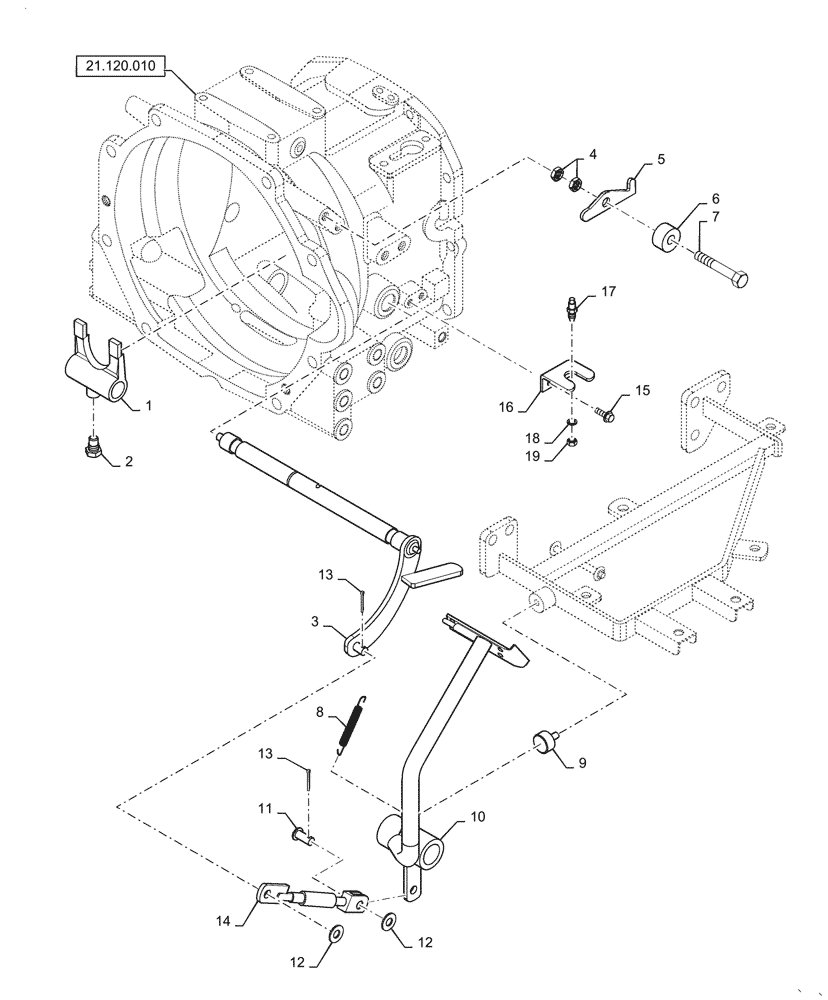

Запчасти Case IH FARMALL 40A (18.100.030) - CLUTCH, CONTROLS, MECHANICAL TRANSMISSION (18) - CLUTCH

1

MT40010337

LEVER

Clutch Shift

1шт.

2

MT40010190

BOLT,M12 x 1.25

1шт.

3

MT40280618

SHAFT

Clutch Lever

1шт.

4

MT40029027

NUT,Hex, M10 x 1.25

2шт.

5

MT40332006

HOOK,3.2mm Thk

Clutch Pedal

1шт.

6

MT40009669

STOP,10.5mm ID x 31.5mm OD x 15mm L

1шт.

7

MT40078035

BOLT,M10 x 1.25 x 75mm

1шт.

8

MT40011960

SPRING,18mm OD x 115mm L

1шт.

9

MT40007478

RUBBER SLEEVE,M8 x 1.25 x 20mm L

1шт.

10

MT40228990

PEDAL

Clutch

1шт.

11

MT40009617

PIN,10mm ID x 14mm OD x 26mm L

1шт.

12

MT40028171

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

13

MT40029121

PIN,25mm OD x 20mm L

2шт.

14

MT40244874

ROD

Assy

1шт.

15

MT40028971

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

16

MT40280331

BRACKET

Clutch Switch

1шт.

17

MT40007114

SWITCH ASSY,12V, 10A

Safety

1шт.

18

MT40097532

WASHER,23mm OD x 14.5mm ID x 1mm Thk

1шт.

19

MT40029057

NUT,Hex, M14 x 1.5

1шт.
