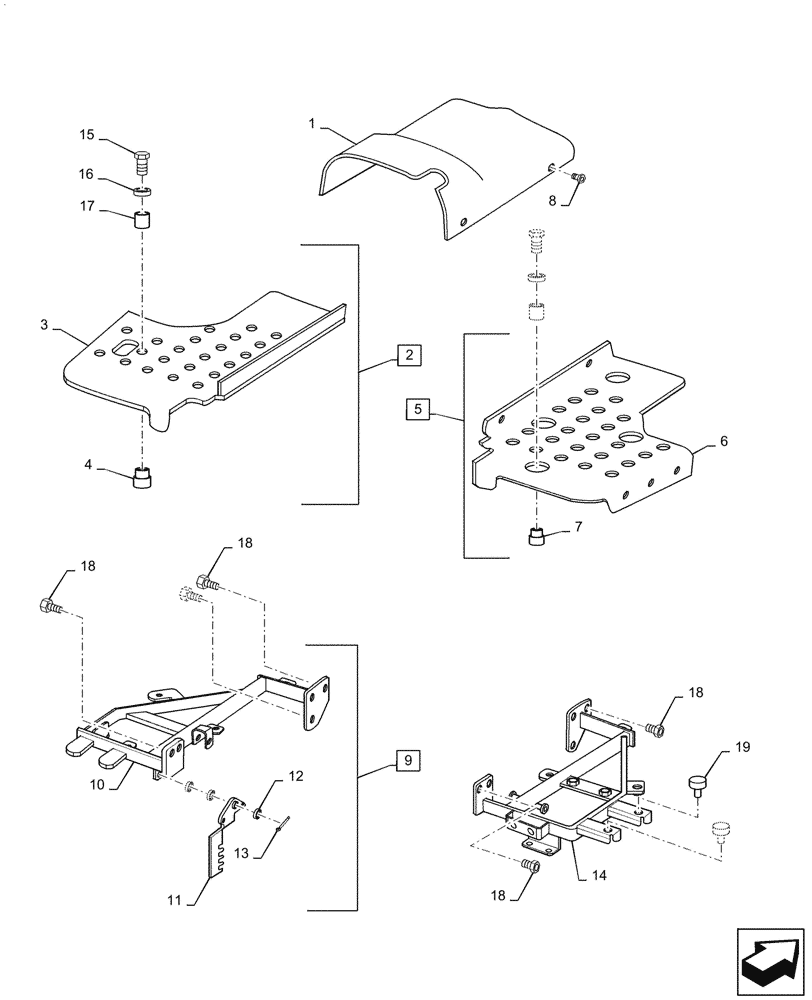

Запчасти Case IH FARMALL 40A (90.118.040) - STEP & MOUNT RUBBER, HYDROSTATIC TRANSMISSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40309516

COVER

Case

1шт.

2

MT40309519

STEP

Incl 3 - 4, RH Step Assy

1шт.

3

MT40309520

STEP

RH

1шт.

4

MT40007406

MOUNT,14mm ID x 20mm OD x 2mm Thk

RH

4шт.

5

MT40309517

STEP

Incl 6 - 7, LH Step Assy

1шт.

6

MT40309518

STEP

LH

1шт.

7

MT40007406

MOUNT,14mm ID x 20mm OD x 2mm Thk

LH

4шт.

8

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

9

MT40285599

FRAME

Incl 10 - 13, RH Assy

1шт.

10

MT40252703

FRAME

RH

1шт.

11

MT40284950

ARM

HST

1шт.

12

MT40028158

WASHER,10.50mm ID x 18mm OD x 2mm Thk

3шт.

13

MT40029132

HAIR PIN COTTER,M10

1шт.

14

MT40252701

FRAME

LH

1шт.

15

MT40028926

BOLT,Hex, M8 x 1.25 x 40mm, W/ Wshr

8шт.

16

MT40086707

WASHER,8.4mm OD x 2.5mm Thk

8шт.

17

MT40009979

SPACER,9.2mm ID x 13.8mm OD x 18mm L

13.8mm OD x 9.2mm ID

8шт.

18

MT40028938

BOLT,Hex, M12 x 1.75 x 30mm

8шт.

19

MT40007478

RUBBER SLEEVE,M8 x 1.25 x 20mm L

M8 x 1.25

2шт.
