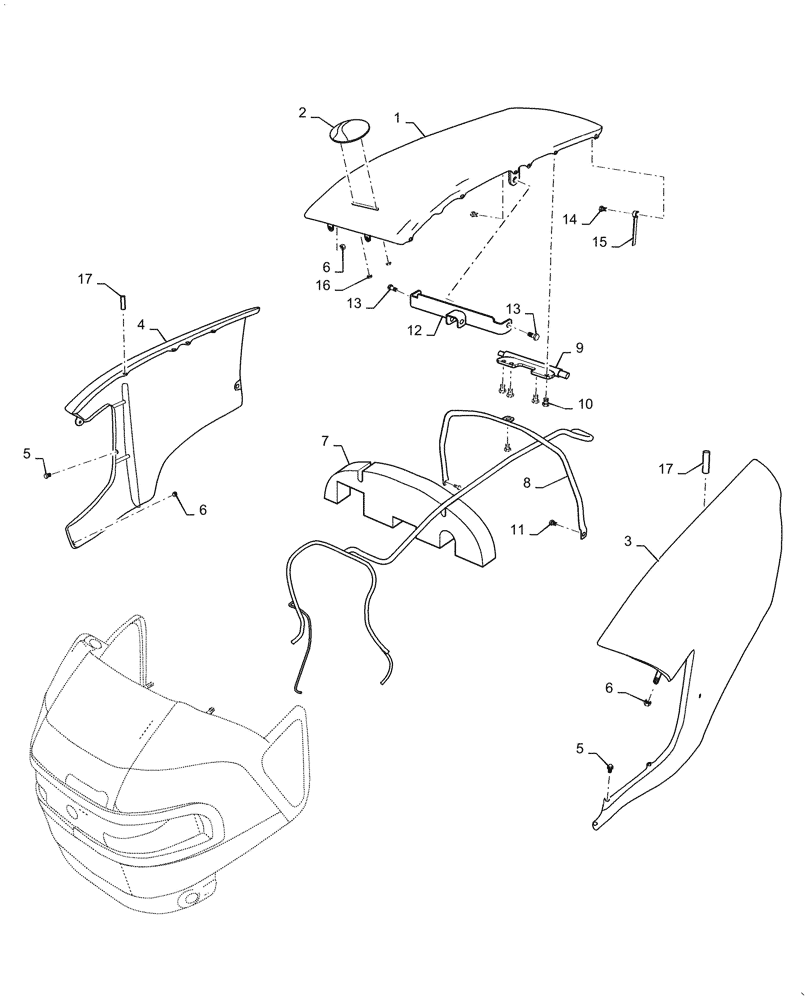

Запчасти Case IH FARMALL 40A (90.100.020) - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

MT40293719

HOOD

1шт.

2

MT40293048

EMBLEM

1шт.

3

MT40348886

HOOD

LH, Side

1шт.

4

MT40348887

HOOD

RH, Side

1шт.

5

MT40028963

BOLT,Hex, M6 x 1 x 12mm

10шт.

6

MT40029073

FLANGE NUT,M6 x 1.0

14шт.

7

MT40351805

SEAL,614mm x 164mm x 60mm

Upper, Sponge

1шт.

8

MT40267904

SUPPORT

Frame

1шт.

9

MT40343486

BRACKET,6mm Thk

Hood, Hinge

1шт.

10

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

11

MT40084678

SCREW,Phillips, Pan HD, M8 x1.25 x 12mm

2шт.

12

MT40305621

BRACKET,6mm Thk

Gas Cylinder

1шт.

13

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

2шт.

14

MT40028998

BOLT,M6 x 1 x 16mm L

12шт.

15

MT40012735

CLAMP,10mm W x 95mm L

3шт.

16

MT40012205

NUT

Speed

2шт.

17

MT40353772

WEATHERSTRIP,53mm

Side Covers

2шт.
