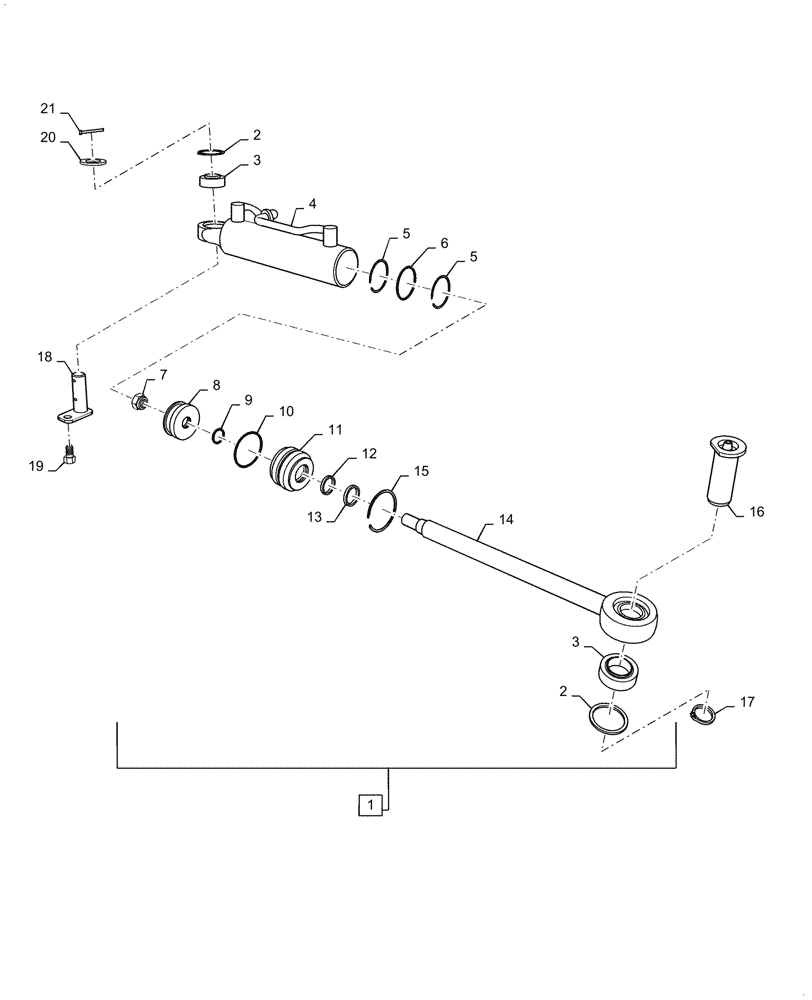

Запчасти Case IH FARMALL 40A (41.216.050) - STEERING CYLINDER (41) - STEERING

1

MT40352172

STEERING CYLINDER,45mm ID x 153mm

Assy, Incl 2 - 15

1шт.

2

MT40029311

SNAP RING,M35

2шт.

3

MT40009488

BUSHING,20mm ID x 35mm OD x 16mm L

2шт.

4

MT40352173

HYDRAULIC CYLINDER

1шт.

5

MT40007664

BACK-UP RING,39mm ID x 45mm OD x 2mm Thk

2шт.

6

MT40029213

O-RING,38.7mm OD x 3.5mm Thk

1шт.

7

MT40010393

NUT

1шт.

8

MT40009119

PISTON,45mm OD x 20mm L

1шт.

9

MT40029201

O-RING,2.4mm Thk x 13.8mm ID

1шт.

10

MT40029214

O-RING,39.7mm OD x 3.5mm Thk

1шт.

11

MT40009176

SLEEVE

1шт.

12

MT40007552

GASKET

1шт.

13

MT40007553

SEAL

Dust

1шт.

14

MT40009079

ROD,18.2mm OD

1шт.

15

MT40011380

RING,2mm OD

1шт.

16

MT40009475

PIN,20mm OD x 59mm L

1шт.

17

MT40029266

SNAP RING,M20

1шт.

18

MT40279932

PIN

1шт.

19

MT40028936

BOLT,M10 x 1.5 x 20mm

1шт.

20

MT40028181

WASHER,21mm ID x 37mm OD x 3mm

1шт.

21

MT40114548

PIN,25mm OD x 40mm L

Split

1шт.
