Запчасти Case IH FARMALL 40 (04.03) - POWER STEERING HOSES (04) - FRONT AXLE & STEERING

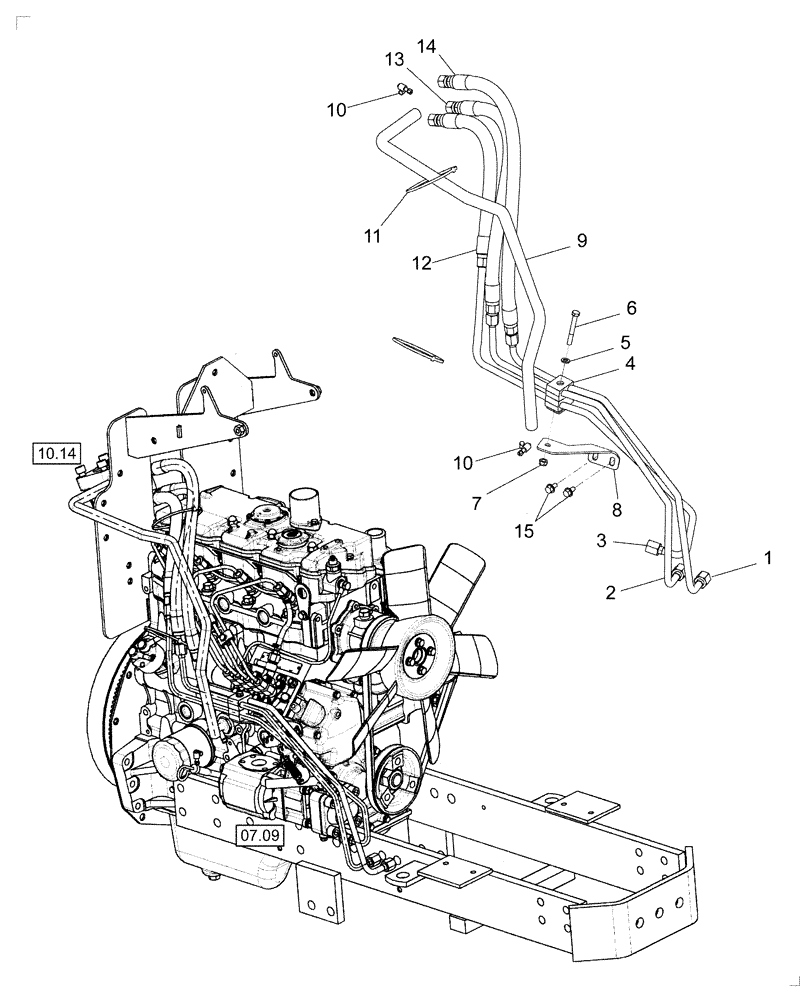

Схема запчастей Case IH FARMALL 40 - (04.03) - POWER STEERING HOSES (04) - FRONT AXLE & STEERING
10
6
10
07.09
10.14
11
7
9
12
5
2
4
8
14
13
10
3
1

Артикул

Название

Примечание

Количество

1

87668264

TUBE,9.53 mm OD

Steering Cyl Left

1шт.

2

87668265

TUBE,9.53 mm OD

Steering Cyl Right

1шт.

3

84139157

TUBE,9.53 mm OD

Steering Pump Pressure

1шт.

4

86400111

CLAMP

Halves 3/8

2шт.

5

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

6

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

7

353308

NUT,M6 x 1.0, Cl 8

1шт.

8

84139155

BRACKET

Power Steering Tubes

1шт.

9

84147083

HOSE,9.50 mm ID x 700.00 mm, SAE 30R2 Type 1

Power Steering Drain

1шт.

10

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

11

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

12

87535324

HOSE

Power Steering Pump

1шт.

13

87535323

HOSE

Power Steering Cyl RH

1шт.

14

87530925

HOSE

Power Steering Cyl LH

1шт.

15

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 15
