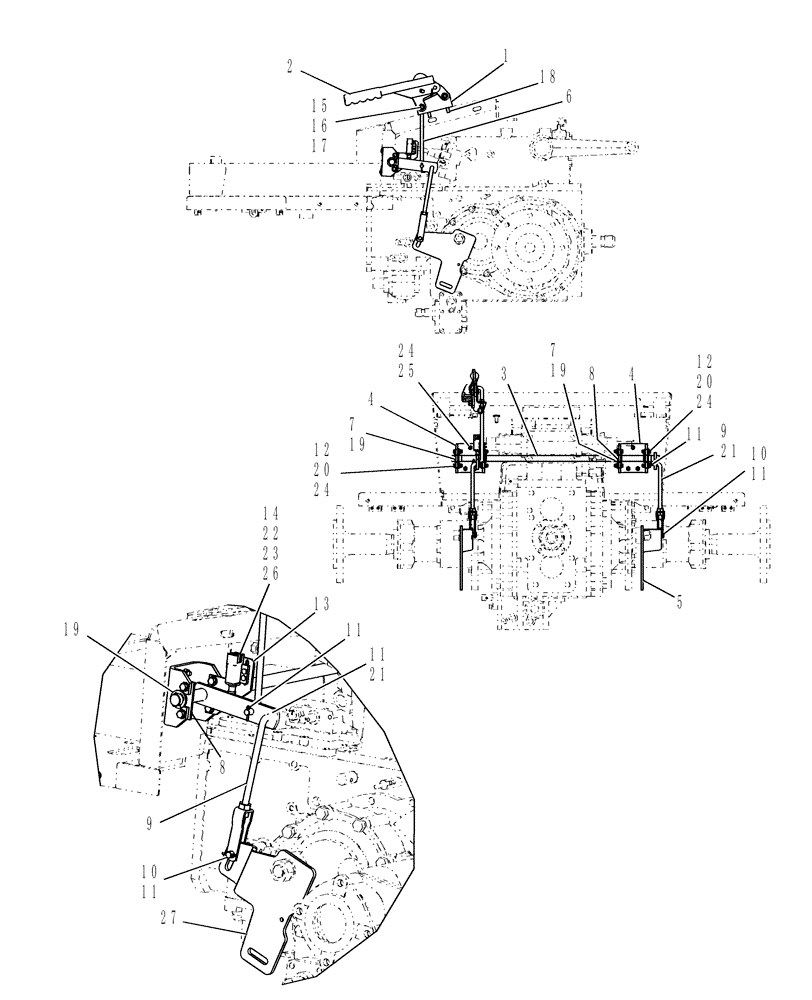

Запчасти Case IH FARMALL 40 (03.01) - PARKING BRAKE (03) - TRANSMISSION

1

86401569

BRACKET

Hand Brake

1шт.

2

86543759

HANDLE

W/Ratchet

1шт.

3

86402552

CROSS SHAFT

1шт.

4

86401205

BRACKET

Brake

1шт.

5

86402728

LEVER

Brake, RH

1шт.

6

86401571

LINK

Hand Brake

1шт.

7

9625659

BUSHING

4шт.

8

86543761

PLATE

3шт.

9

86402551

LINK ASSY.

Hand Brake

2шт.

10

86530992

CLEVIS PIN,10mm OD x 29.1mm L

2шт.

11

280250

COTTER PIN,3/32" OD x 3/4" L

6шт.

12

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

8шт.

13

87598171

BRACKET

Park Brake Switch

1шт.

14

84255834

SWITCH

Parking Brake

1шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

18

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

86401310

CIRCLIP

4шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

21

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

22

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

2шт.

23

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

24

353308

NUT,M6 x 1.0, Cl 8

14шт.

25

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

26

100012

NUT,M4 x 0.7, Cl 8

2шт.

27

86401209

LEVER

Brake, LH

1шт.
