Запчасти Case IH FARMALL 40 (02.03) - FUEL TANK (02) - ENGINE EQUIPMENT

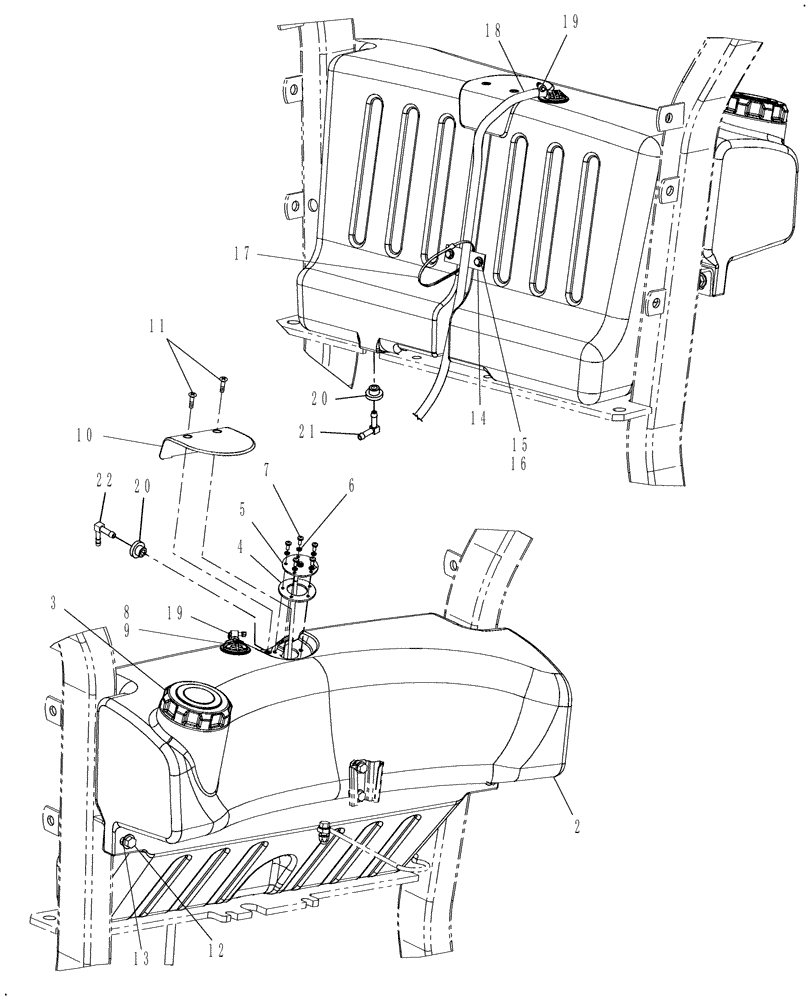

Схема запчастей Case IH FARMALL 40 - (02.03) - FUEL TANK (02) - ENGINE EQUIPMENT
7
20
10
12
19
14
5
3
11
9
16
18
15
4
2
8
21
17
22
13
20
6
19

Артикул

Название

Примечание

Количество

2

87701698

FUEL TANK

1шт.

3

87324388

FILLER CAP

W/Gasket, Non Vented

1шт.

3

84385969

CAP COVER

Vented

1шт.

4

48751

GASKET,2.38mm Thk

Fuel Sender

1шт.

5

86402446

SENDER UNIT

1шт.

6

86509828

LOCK WASHER,M5

5шт.

7

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

5шт.

8

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

Vent

1шт.

9

86999948

SAFETY VALVE

Rollover

1шт.

10

86567747

COVER

Fuel Tank

1шт.

11

86020047

SCREW,Phil Oval Hd, Csk, M6 x 25mm, Cl 4.8, Full Thd

2шт.

12

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

13

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

M10x1.5

2шт.

14

86574760

PLATE

Hold Down

1шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

16

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

17

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

18

87702566

FUEL HOSE,6.35 mm ID x 630.00 mm, SAE 30R6 Or SAE 30R7

Rollover Valve Vent

1шт.

19

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

20

86532842

BUSHING,9.2mm ID x 14.22mm OD x 16mm L

2шт.

21

86532841

90 ELBOW,5/16" Hose Barb

1шт.

22

86532840

90 ELBOW,4mm, Hosebarb

1шт.

Выбрано товаров: 22
