Запчасти Case IH FARMALL 40 (01.12) - BALANCER (01) - ENGINE

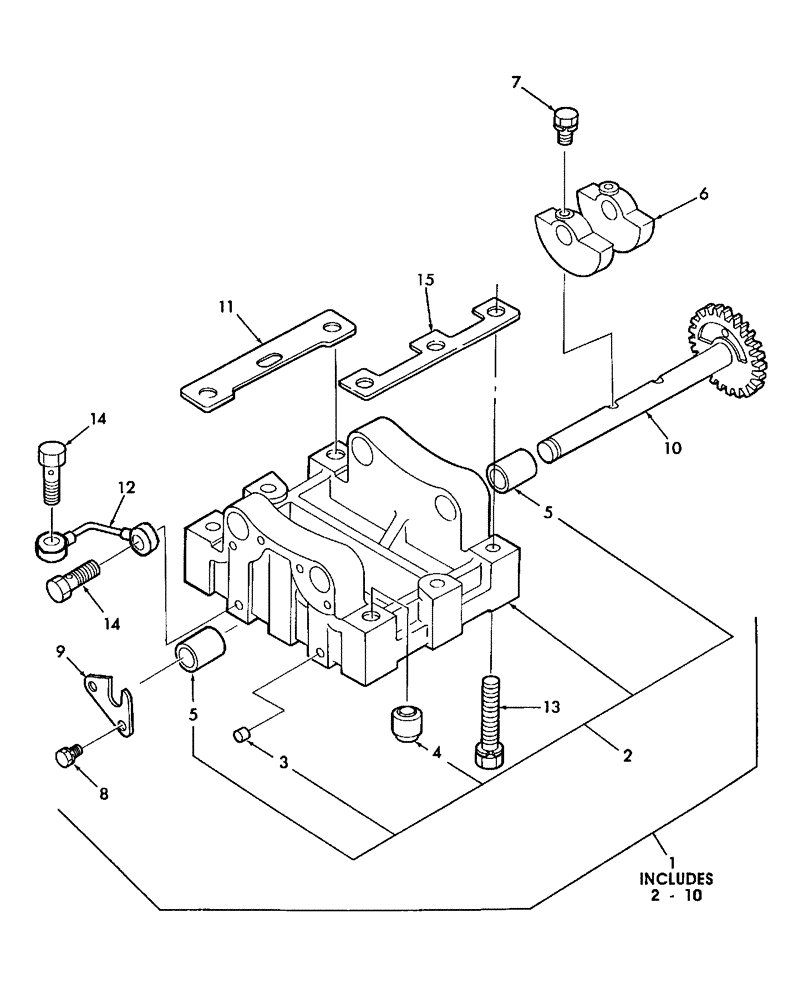

Схема запчастей Case IH FARMALL 40 - (01.12) - BALANCER (01) - ENGINE
5
5
10
4
8
9
3
15
13
1
7
11
14
6
2
14
12

Артикул

Название

Примечание

Количество

1

SBA165036072

COUNTERSHAFT

Balancer Assy., Includes: Ref. 2 thru 10, FARMALL 40

1шт.

1

SBA165036160

COUNTERSHAFT

Balancer Assy., Includes: Ref. 2 thru 10, FARMALL 45

1шт.

2

SBA165326112

HOUSING

Complete, Includes: Ref. 2 thru 4, FARMALL 40

1шт.

2

SBA165326280

HOUSING

Complete, Includes: Ref. 2 thru 4, FARMALL 45

1шт.

3

SBA198466030

PLUG

Blank, 6.5 x 7mm

6шт.

4

SBA030509019

PIN

Dowel

2шт.

5

SBA198517480

BUSHING

4шт.

6

SBA165316140

WEIGHT

Balancer, FARMALL 40

4шт.

6

SBA165316210

WEIGHT

Balancer, FARMALL 45

4шт.

7

SBA011510816

BOLT

M8 x 16, FARMALL 40

4шт.

7

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

FARMALL 45

4шт.

8

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

4шт.

9

SBA199566760

PLATE

2шт.

10

SBA165456101

SHAFT

Complete, FARMALL 40

2шт.

10

SBA165456180

SHAFT

Complete, FARMALL 45

2шт.

11

SBA199286230

SHIM

FARMALL 40

1шт.

11

SBA199286320

SHIM

FARMALL 45

1шт.

12

SBA140606620

PIPE

Oil, FARMALL 40

1шт.

12

SBA140607031

PIPE

Oil, FARMALL 45

1шт.

13

SBA011511060

BOLT

M10 x 60, FARMALL 40

6шт.

13

SBA011511070

BOLT,M10 x 70

FARMALL 45

6шт.

14

SBA198486780

BANJO BOLT

Eye

2шт.

15

SBA199286330

SHIM

FARMALL 45

1шт.

Выбрано товаров: 23
