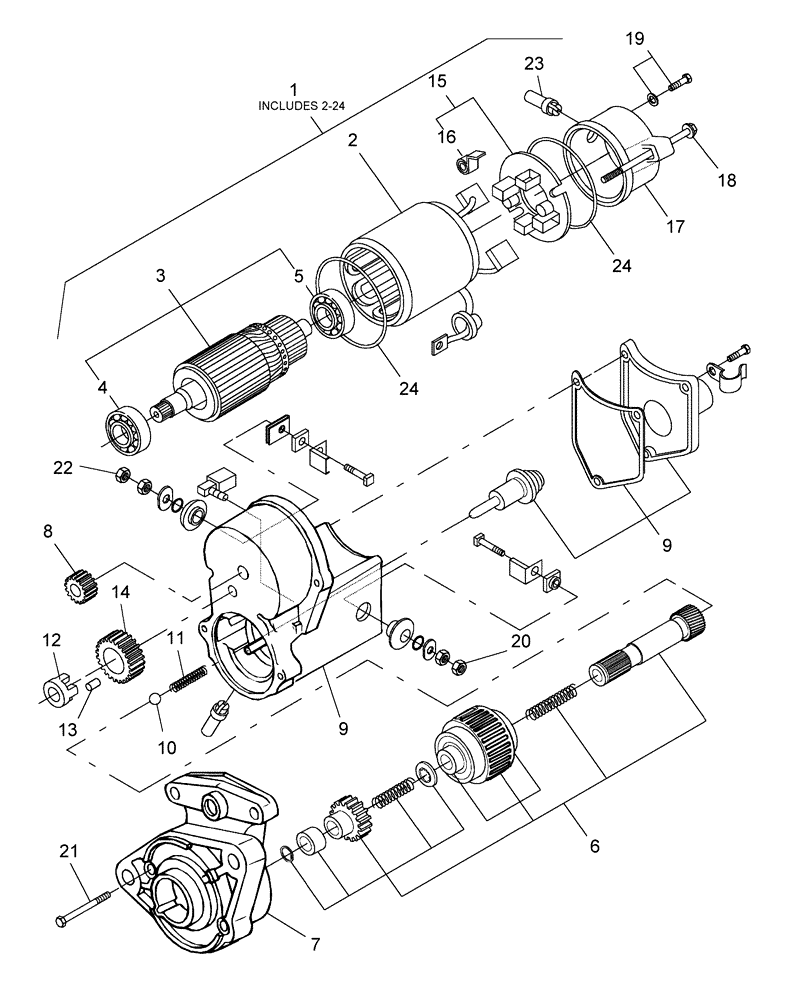

Запчасти Case IH FARMALL 40 (01.11) - STARTING MOTOR (01) - ENGINE

1

SBA185086530

STARTER MOTOR

Includes: Ref. 2 thru 24

1шт.

1

SBA185086530R

REMAN-STARTER

FARMALL 40, Farmall 45, Both w/HST Transmission & w/Cab -- 11 Tooth Drive

1шт.

1

SBA185086530C

CORE-STARTER

Return Number

1шт.

1

SBA185086530GV

STARTER MOTOR

Value

1шт.

2

SBA185846570

STATOR

1шт.

3

SBA185846571

ARMATURE

1шт.

4

SBA185846549

BALL BEARING

1шт.

5

SBA185846583

BALL BEARING

1шт.

6

SBA185866370

CLUTCH

Sub Assy.

1шт.

7

SBA185846572

HOUSING

1шт.

8

SBA185846576

PINION

1шт.

9

SBA185816360

SOLENOID SWITCH

1шт.

Magnet Switch NSS

1шт.

10

SBA185846286

BALL

Steel

1шт.

11

SBA185846560

SPRING

1шт.

12

SBA185846551

RETAINER

1шт.

13

SBA185846371

ROLLER

5шт.

14

SBA185846552

PINION

1шт.

15

SBA185846573

HOLDER

Includes: Ref. 16

1шт.

16

SBA185846579

SPRING

4шт.

17

SBA185846574

FRAME

1шт.

18

SBA185846581

BOLT

2шт.

19

SBA185846582

SCREW

2шт.

20

SBA185846378

NUT

1шт.

21

SBA185846580

SCREW

2шт.

22

SBA185846563

NUT

1шт.

23

SBA185846562

DRAIN PLUG

1шт.

24

SBA185846561

O-RING

2шт.
