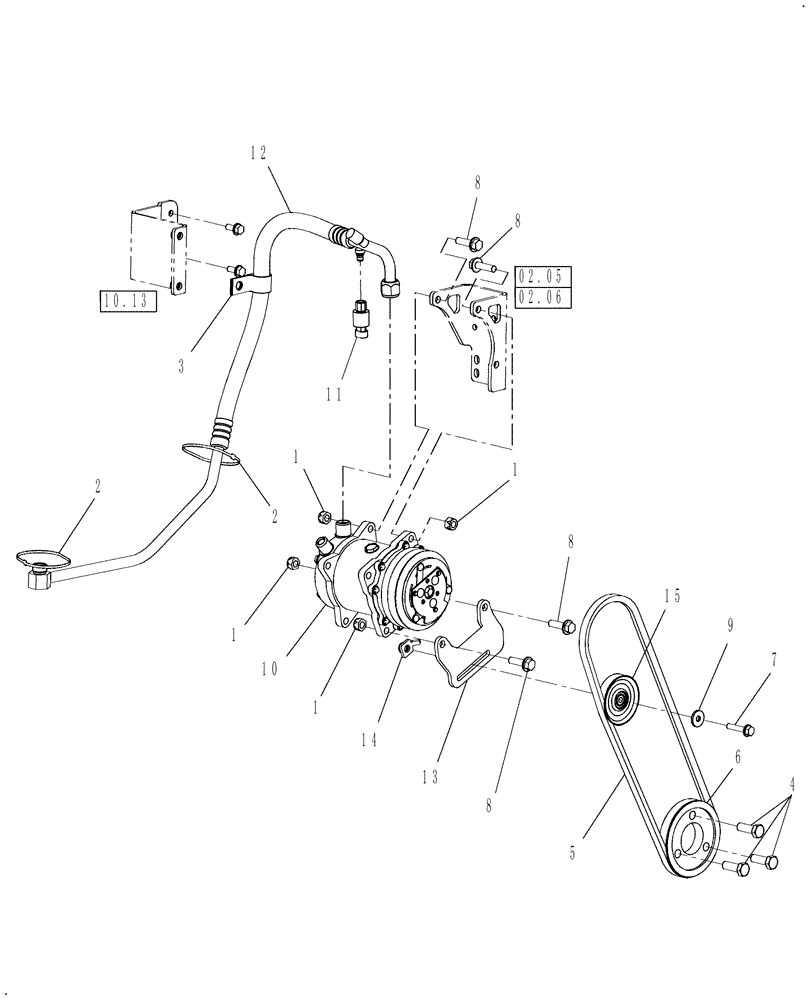

Запчасти Case IH FARMALL 40 (10.16) - COMPRESSOR MOUNT (10) - OPERATORS PLATFORM/CAB

1

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

3

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

4

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

3шт.

5

86401123

V-BELT,13.00 mm W x 1180.00 mm L

Air Conditioner

1шт.

6

86405134

PULLEY

1шт.

7

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

8

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

1шт.

9

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

10

87362509

AIRCOND. COMPRESSOR

1шт.

87362509R

REMAN-A/C COMPRESSOR

FARMALL 40, FARMALL 45 Both HST TRANSMISSION W/CAB

1шт.

87362509C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

11

87363058

PRESSURE SWITCH

Low Pressure

1шт.

12

87620404

HOSE

A/C Suction

1шт.

13

87693639

BRACKET

Idler Mount

1шт.

14

87693640

BRACKET

A/C Idler Guide

1шт.

15

87698090

PULLEY

A/C Idler

1шт.
