Запчасти Case IH FARMALL 40 (10.15.05) - HEATER HOSE FITTINGS, CLAMPS,CABLE TIE (10) - OPERATORS PLATFORM/CAB

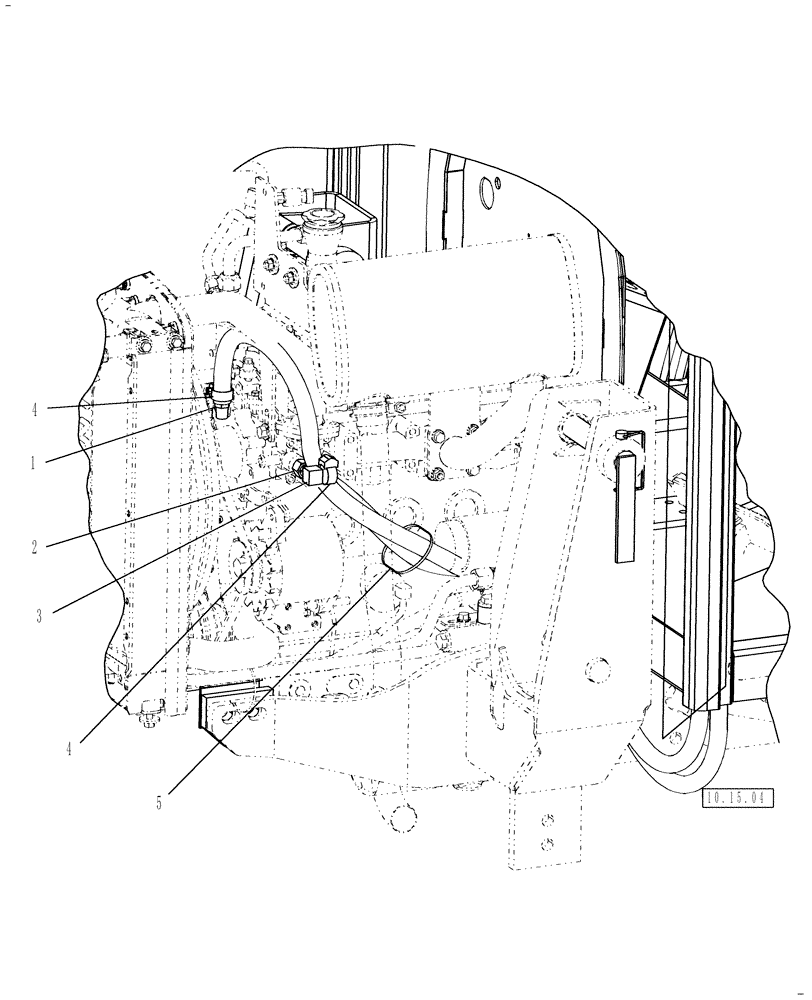

Схема запчастей Case IH FARMALL 40 - (10.15.05) - HEATER HOSE FITTINGS, CLAMPS,CABLE TIE (10) - OPERATORS PLATFORM/CAB
2
4
3
5
10.15.04
1
4

Артикул

Название

Примечание

Количество

1

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

2

87578666

ADAPTER

3/8-18

1шт.

3

287644

FITTING,90 Degree, 5/8" Hose x 3/8" NPTF Beaded

1шт.

4

58948

CLAMP

2шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

Выбрано товаров: 5
