Запчасти Case IH FARMALL 40 (10.15.04) - HOSES, HVAC (10) - OPERATORS PLATFORM/CAB

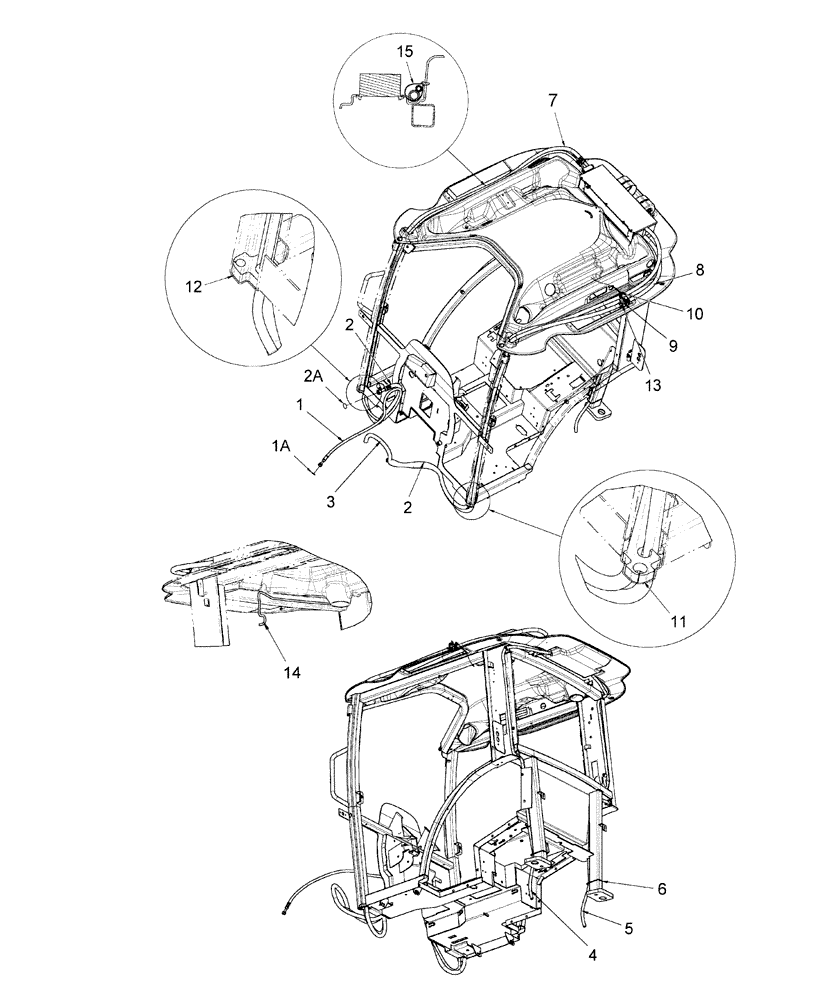

Схема запчастей Case IH FARMALL 40 - (10.15.04) - HOSES, HVAC (10) - OPERATORS PLATFORM/CAB
11
2
14
6
8
5
10
7
2a
13
15
1a
3
4
12
2
1
9

Артикул

Название

Примечание

Количество

1

87615118

HOSE ASSY.

A/C Liquid Includes: Ref. 1A

1шт.

1a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

2

87329345

HEATER HOSE,15.50 mm ID x 3360.00 mm

Supply, Includes Ref. 2A

1шт.

2a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

2b

58948

CLAMP

1шт.

Not Illustrated

1шт.

2c

287644

FITTING,90 Degree, 5/8" Hose x 3/8" NPTF Beaded

1шт.

Not Illustrated

1шт.

3

87329346

HOSE

Heater Return

1шт.

3a

58948

CLAMP

1шт.

Not Illustrated

1шт.

3b

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

Not Illustrated

1шт.

4

87362722

HOSE,12.95 mm ID x 760.00 mm

Condensate, Left

1шт.

5

87362722

HOSE,12.95 mm ID x 760.00 mm

Condensate, Right

1шт.

6

347610A1

ANCHOR

Cable Tie

2шт.

7

87627897

HOSE

A/C Suction

1шт.

7a

87533612

O-RING,1.93mm Thk x 15.67mm ID, Cl 5, 75 Duro

1шт.

Not Illustrated

1шт.

7b

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.00 ID

1шт.

Not Illustrated

1шт.

8

1958774C1

HEATER HOSE

Heater Supply

1шт.

9

1331087C1

HEATER VALVE

Heater Control

1шт.

10

1954626C1

SPRING CLIP

Water Valve

1шт.

11

87315315

GROMMET

Grommet, LH APost

1шт.

12

87627910

GROMMET

Grommet, RH APost

1шт.

13

1954736C1

HOSE CLAMP,#24

Heater

2шт.

14

87343662

WINDSHIELD WASHER

Tubing

1шт.

15

347610A1

ANCHOR

Push Mount Cable Tie

1шт.

Выбрано товаров: 29
