Запчасти Case IH FARMALL 40 (10.11) - CONSOLE, CAB (10) - OPERATORS PLATFORM/CAB

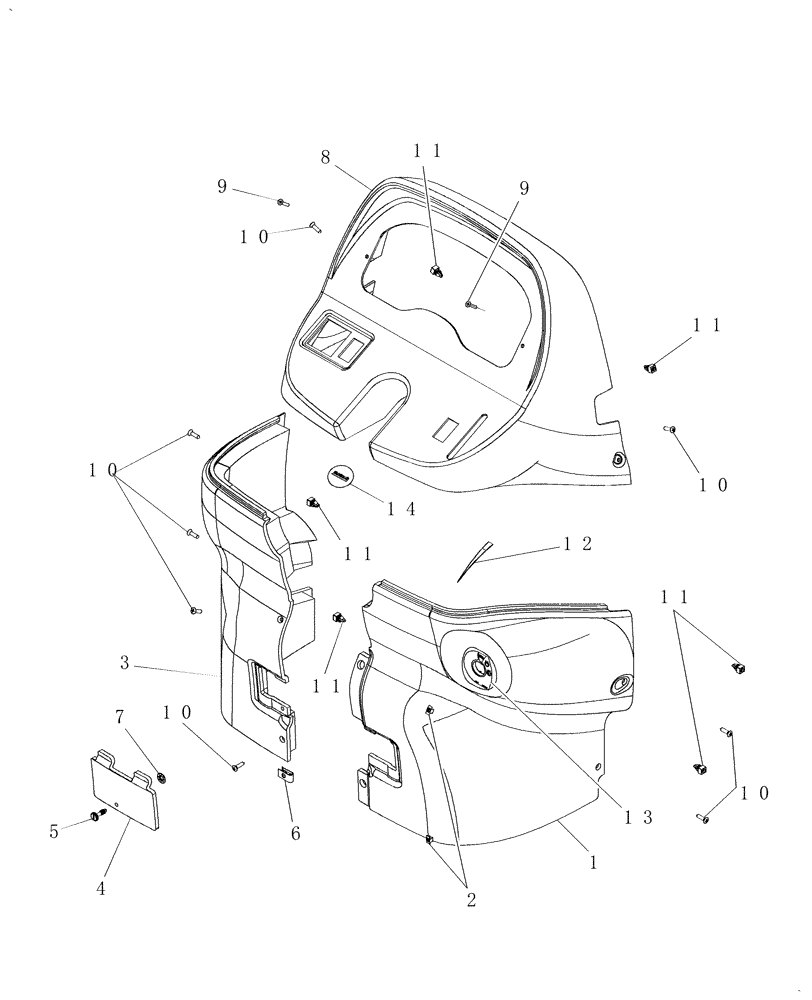

Схема запчастей Case IH FARMALL 40 - (10.11) - CONSOLE, CAB (10) - OPERATORS PLATFORM/CAB
14
6
3
11
13
10
7
10
11
11
10
12
5
10
1
10
8
2
9
9
11
4
11

Артикул

Название

Примечание

Количество

1

87615412

CONSOLE

Console, Lower Right W/O Foam

1шт.

1a

87544646

FOAM

Console, RH, Bottom

1шт.

Not Illustrated

1шт.

1b

87544647

FOAM

Console, RH, Top

1шт.

Not Illustrated

1шт.

1c

87544648

FOAM

Console, RH

1шт.

Not Illustrated

1шт.

2

87615567

NUT

Nut Insert #10 Self Tapping

2шт.

3

87634835

CONSOLE

Console, Lower Left W/O Foam

1шт.

3a

87544644

FOAM

Console, LH, Bottom

1шт.

Not Illustrated

1шт.

3b

87544645

FOAM

Console, LH, Top

1шт.

Not Illustrated

1шт.

4

87634833

DOOR

Fuse

1шт.

5

87644760

FASTENER

Console Fuse Door

1шт.

6

87644761

CLIP

Console Fuse Door Retaining

1шт.

7

87644762

LOCK WASHER

Console Fuse Door

1шт.

8

87614000

CONSOLE

Console, Front Top

1шт.

9

86555127

SCREW,M4 x 0.7 x 23.25mm OAL, Cl 4.8, Cntr Sunk

2шт.

10

86625205

SELF-TAP SCREW

Screw, #10

8шт.

11

86404659

GROMMET

Screw

6шт.

12

81863547

DECAL

Throttle

1шт.

13

87656848

DECAL

Ignition

1шт.

14

87698705

EMBLEM,44mm OD

CASE IH Steering Wheel

1шт.

15

86539709

PLUG

Blank, fits to the left of the throttle lever

1шт.

Not Illustrated

1шт.

Выбрано товаров: 26
