Запчасти Case IH FARMALL 40 (08.13) - DECALS, OPERATING (08) - SHEET METAL

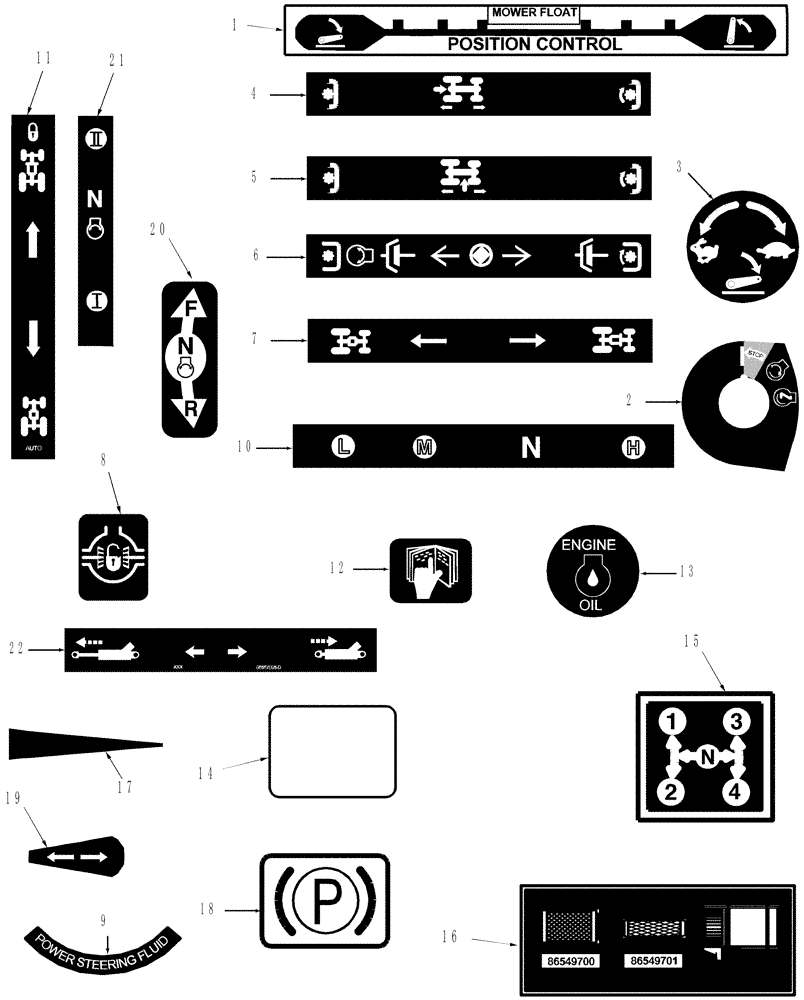

Схема запчастей Case IH FARMALL 40 - (08.13) - DECALS, OPERATING (08) - SHEET METAL
9
14
3
18
12
16
13
17
8
15
10
22
20
21
6
2
7
11
1
4
19
5

Артикул

Название

Примечание

Количество

1

86567896

DECAL

HPL Position Control

1шт.

1

86402003

DECAL

HPL Position Control, French

1шт.

2

86400175

DECAL

Ignition

1шт.

3

86400295

DECAL

HPL Rate

1шт.

4

86400314

DECAL

Rear PTO

1шт.

5

86400315

DECAL

Mid PTO

1шт.

6

86567890

DECAL

Indicator PTO

1шт.

Not Illustrated

1шт.

6

87301626

DECAL

Indicator PTO

1шт.

7

86400177

DECAL

FWD Std

1шт.

8

86532901

DECAL

Differential Lock

1шт.

9

86532903

DECAL

Power Steering Fluid

1шт.

9

86540969

DECAL

Power Steering Fluid, French

1шт.

10

86567891

DECAL

12 x 12 Range

1шт.

11

86567893

DECAL

Auto FWD

1шт.

12

86532914

DECAL

Operator Manual

1шт.

13

86532916

DECAL

Engine Oil

1шт.

13

86402032

DECAL

Engine Oil, French

1шт.

14

86400366

DECAL

Red Reflector Tape

1шт.

15

86567892

DECAL

12 x 12 Mainshift

1шт.

16

86401636

DECAL

Air Cleaner

1шт.

17

F0NN9N848BA

DECAL

Throttle

1шт.

18

86521672

DECAL

Parking Brake

1шт.

19

86400176

DECAL

Turn Signal

1шт.

20

86567887

DECAL

Shuttle Shift

1шт.

Not Illustrated

1шт.

20

87301625

DECAL

Shuttle Shift

1шт.

21

86567894

DECAL

LST Range

1шт.

Not Illustrated

1шт.

21

87301624

DECAL

HST Range

1шт.

22

86567895

DECAL

Remote

1шт.

Выбрано товаров: 31
