Запчасти Case IH FARMALL 40 (01.08) - OIL PUMP, WATER PUMP & FAN (01) - ENGINE

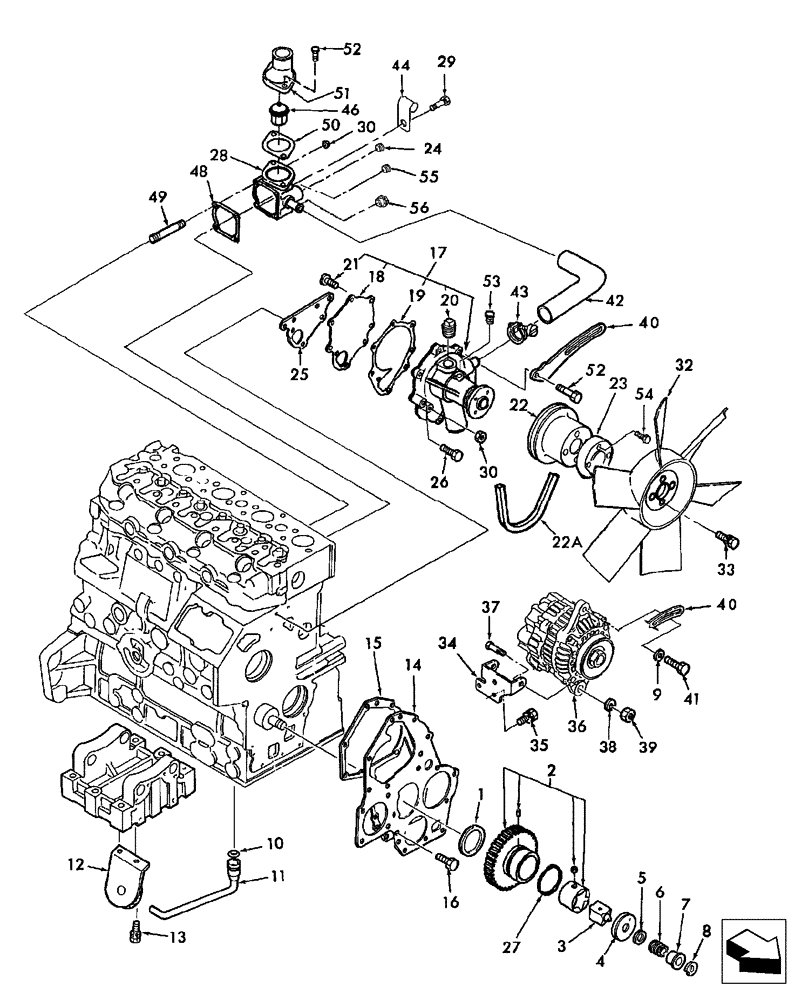

Схема запчастей Case IH FARMALL 40 - (01.08) - OIL PUMP, WATER PUMP & FAN (01) - ENGINE
28
17
55
5
35
49
38
18
19
3
37
21
54
30
52
40
20
10
40
11
52
1
30
12
15
29
7
4
44
25
43
36
46
33
16
27
56
9
39
6
22a
23
34
14
24
53
42
8
50
13
26
48
41
2
51
32
22

Артикул

Название

Примечание

Количество

1

SBA199266270

WASHER, THRUST

1шт.

2

SBA165026230

IDLER GEAR

Oil Pump Outer Rotor & Gear Assy. Includes: Outer Rotor, NSS

1шт.

SBA165026230R

REMAN-ENG OIL PUMP

FARMALL 40, FARMALL 45 BOTH COMPACT TRACTOR - CVT TRANSMISSION W/CAB (3/09-), FARMALL 50 COMPACT TRACTOR - CVT TRANSMISSION W/CAB (3/09-)

1шт.

SBA165026230C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

3

SBA140166250

ROTOR

Inner

1шт.

4

SBA140116220

COVER

Oil Pump

1шт.

5

SBA199286150

SHIM,0.1mm Thk

1шт.

5

SBA199286160

SHIM,0.15mm Thk

1шт.

5

SBA199286170

SHIM,0.2mm Thk

1шт.

5

SBA199286180

SHIM,0.5mm Thk

1шт.

6

SBA198216720

SPRING

1шт.

7

SBA199236540

COLLAR

1шт.

8

SBA036800010

SNAP RING

1шт.

9

SBA026109017

WASHER

P11

1шт.

10

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

11

SBA140986620

RIGID TUBE

Oil

1шт.

12

SBA140406340

PICK-UP

Oil Suction

1шт.

13

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

14

SBA165166600

PLATE

Front

1шт.

16

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

17

SBA145017790

WATER PUMP

Includes: Ref. 18 thru 21

1шт.

SBA145017790R

REMAN-WATER PUMP

FARMALL 40, FARMALL 45, FARMALL 50 All CVT TRANSMISSION W/CAB (NA) (3/09-)

1шт.

SBA145017790C

CORE-WATER PUMP

Return Number

1шт.

18

SBA145146320

PLATE

Set

1шт.

19

SBA145996681

GASKET

1шт.

20

SBA064500030

PLUG,3/8"

1шт.

21

SBA015300614

SCREW

5шт.

22

SBA145337040

PULLEY

Fan

1шт.

Not Included in Long Block

1шт.

22a

301525A1

BELT,37.43” OAL

1шт.

Not Included in Long Block

1шт.

23

SBA145386950

HOLDER

1шт.

Not Illustrated

1шт.

24

SBA064500030

PLUG,3/8"

1шт.

25

SBA145996670

GASKET

.

1шт.

26

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

4шт.

27

SBA198216821

SPRING

1шт.

28

SBA145217030

CASE

Thermostat

1шт.

29

SBA011310655

BOLT,Hex, M6 x 55, Cl 8.8

2шт.

30

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

32

SBA145306250

FAN

1шт.

Not Included in Long Block

1шт.

33

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

4шт.

Not Included in Long Block

1шт.

34

SBA185976900

BRACKET

1шт.

Not Included in Long Block

1шт.

34

SBA185976900

BRACKET

1шт.

Not Included in Long Block

1шт.

35

SBA011510816

BOLT

M8 x 16

3шт.

Not Included in Long Block

1шт.

35

SBA011510816

BOLT

M8 x 16

3шт.

Not Included in Long Block

1шт.

36

SBA185046380

ALTERNATOR

55 amp Refer to Fig. 01.10 for Breakdown

1шт.

Not Included in Long Block

1шт.

36

SBA185046380R

REMAN-ALTERNATOR

1шт.

36

SBA185046380C

CORE-ALTERNATOR

Return Number

1шт.

37

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

Not Included in Long Block

1шт.

37

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

Not Included in Long Block

1шт.

38

892-11010

LOCK WASHER,M10

2шт.

Not Included in Long Block

1шт.

38

892-11010

LOCK WASHER,M10

2шт.

Not Included in Long Block

1шт.

39

100016

NUT,M10 x 1.5, Cl 8

2шт.

Not Included in Long Block

1шт.

40

SBA185727000

PLATE

Adjusting

1шт.

Not Included in Long Block

1шт.

39

100016

NUT,M10 x 1.5, Cl 8

2шт.

Not Included in Long Block

1шт.

41

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

Not Included in Long Block

1шт.

42

SBA145536050

HOSE

1шт.

43

SBA067100022

HOSE CLAMP

2шт.

44

SBA199116370

CLAMP

1шт.

46

SBA145206220

THERMOSTAT,71 Degrees C (160 Degrees F)

1шт.

48

SBA145996710

GASKET

1шт.

49

SBA012110645

STUD

Bolt, M6 x 45

2шт.

50

SBA145996051

GASKET

1шт.

51

SBA145226450

COVER

1шт.

52

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

53

SBA198466910

PLUG

1шт.

54

SBA010700635

BOLT

4шт.

Not Included in Long Block

1шт.

55

SBA010109669

PLUG

Screw

1шт.

56

SBA010109576

BOLT

1шт.

Выбрано товаров: 86
