Запчасти Case IH FARMALL 40 (07.05) - REAR REMOTE HYDRAULIC VALVE #1 POSITION COMPLETING KIT, 12X12 - 719934036 (07) - HYDRAULIC SYSTEM

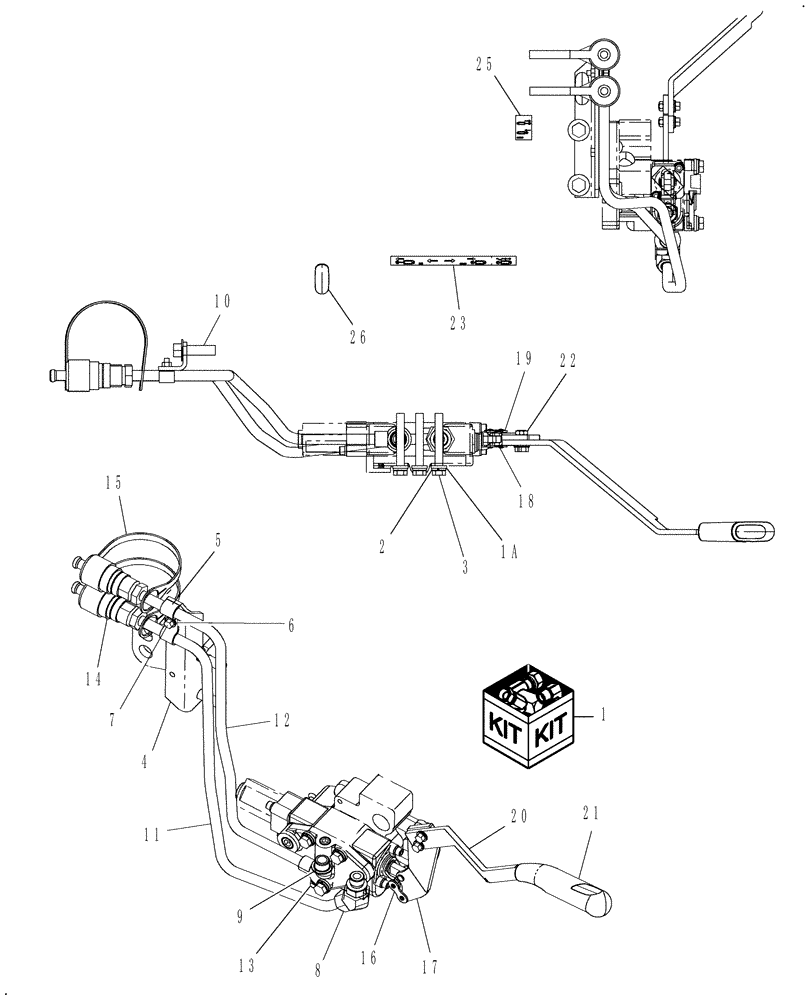

Схема запчастей Case IH FARMALL 40 - (07.05) - REAR REMOTE HYDRAULIC VALVE #1 POSITION COMPLETING KIT, 12X12 - 719934036 (07) - HYDRAULIC SYSTEM
26
5
3
8
21
19
11
9
17
7
10
1
4
1a
6
16
15
18
23
13
20
12
14
25
22
2

Артикул

Название

Примечание

Количество

1

719934036

DIA KIT, ADD PROD

Single Spool Remote Kit, Remote Control Valve #1

1шт.

1a

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

3шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

3

280458

BOLT,Hex, 3/8" - 24 x 2 3/4", Gr 8

3шт.

4

86403114

BRACKET

1шт.

5

86524859

CLAMP

Tube

1шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

7

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

8

87327028

45 ELBOW

45 Degree Elbow

1шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

10

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

11

87522337

HYD TUBE,9.7 mm ID x 12.7 mm OD x 412.5, 115.6 mm L

Tube

1шт.

12

87522338

HYD TUBE,9.7 mm ID x 12.7 mm OD x 320.4, 228.9 mm L

Tube

1шт.

13

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

14

256231

COUPLING, QUICK, FEM

Includes: 86528546 O-Ring Male Coupler is 9801618

2шт.

15

5186723

DUST CAP,24mm, Black

Dust, 1/2"

2шт.

16

5116896

LINK,19.05mm Pitch

1шт.

17

87522341

BRACKET

Bracket

1шт.

18

5172456

PIN,6mm OD x 20mm L

Spool Connection

1шт.

19

11087776

CIRCLIP,Ext., M6, BLO

1шт.

20

86554975

LEVER

Remote #1

1шт.

21

86403810

KNOB

Remote 1, Wheat

1шт.

22

86625072

NUT,Hex, M6, Cl 10

Nut

2шт.

23

86405757

DECAL

Remote

1шт.

25

87300013

DECAL

Hydraulic Cylinder

1шт.

26

86404550

DECAL

Remote 1 Logo

1шт.

Выбрано товаров: 26
