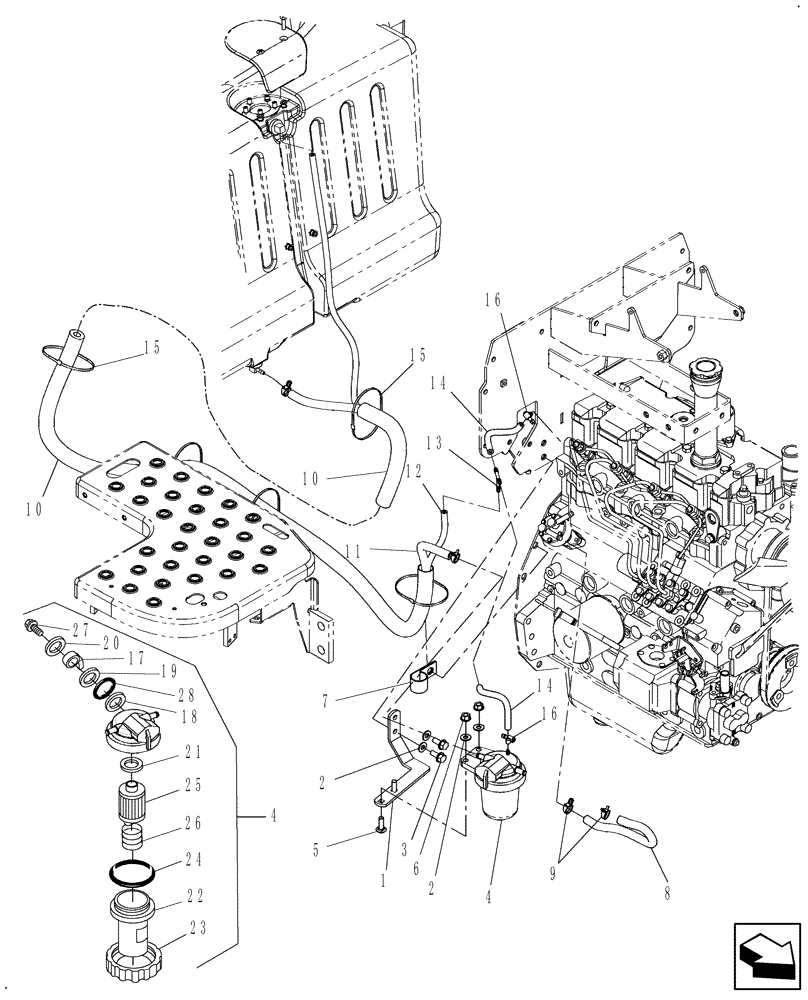

Запчасти Case IH FARMALL 40 (02.08) - FUEL FILTER (02) - ENGINE EQUIPMENT

1

87300983

BRACKET

Fuel Filter

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

4

SBA360700220

FUEL FILTER

Includes: Ref. 17-28

1шт.

5

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

7

719409

CLAMP

1.06X.5

1шт.

8

86400974

FUEL HOSE,7.94 mm ID x 1700.00 mm, SAE J30 R7

Cut to Length, 260 mm or 10.236

1шт.

86400974 measures 1700mm or 66.929"

1шт.

9

86400352

CLAMP

4шт.

10

86400944

PLASTIC-RUBBER TUBE,32.80 mm ID x 38.10 mm OD x 1440 mm L

1шт.

11

86400974

FUEL HOSE,7.94 mm ID x 1700.00 mm, SAE J30 R7

Fuel Filter IN

1шт.

86400974 measures 1700mm or 66.929"

1шт.

12

86400973

HOSE,4.76 mm ID x 2205.00 mm, SAE J30R7

Fuel Vent

1шт.

13

86400361

HYD CONNECTOR

1шт.

14

86400973

HOSE,4.76 mm ID x 2205.00 mm, SAE J30R7

Fuel Vent, Cut to Length

2шт.

15

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

5шт.

16

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

17

SBA360740116

LEVER

1шт.

18

SBA360740117

RUBBER RING

1шт.

19

SBA360740118

WASHER

1шт.

20

SBA360740119

PLATE

1шт.

21

SBA052100160

O-RING

1шт.

22

SBA360710050

FILTER BOWL

1шт.

23

SBA360740115

NUT

1шт.

24

SBA052300650

O-RING,64.4mm ID x 3.1mm Width

1шт.

25

87300042

FUEL FILTER

1шт.

26

SBA360740120

SPRING

1шт.

27

86511815

SCREW,Pan, M3 x 0.5 x 8mm, Cl 4.8

2шт.

28

SBA052400290

O-RING

1шт.
