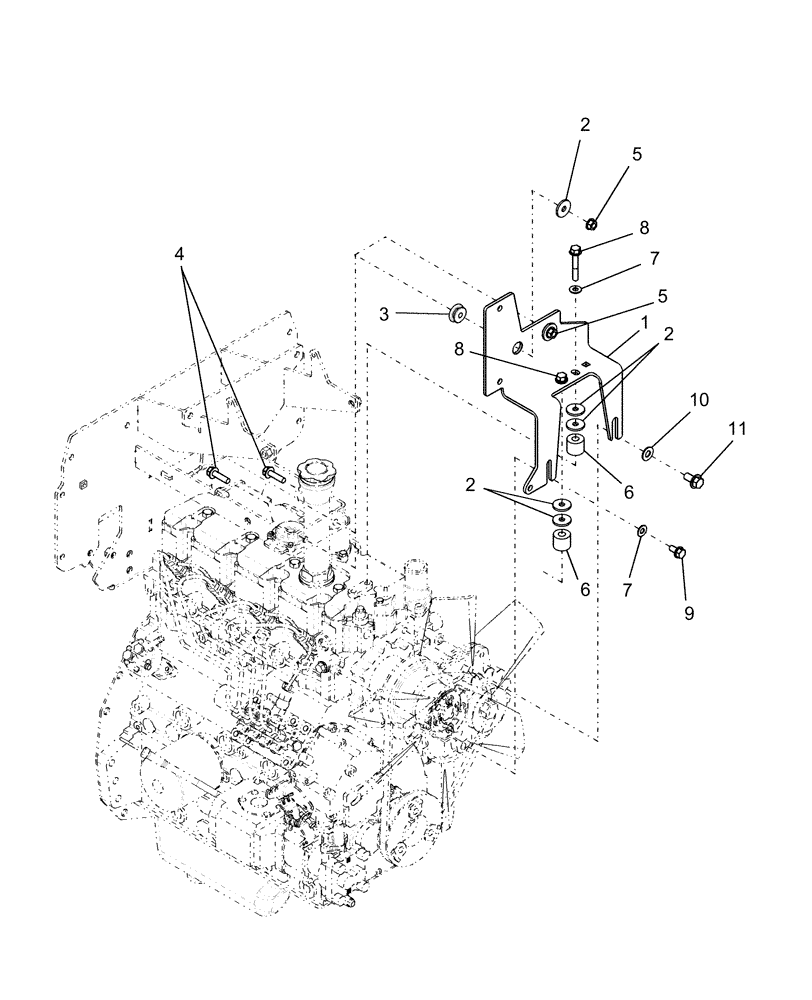

Запчасти Case IH FARMALL 40 (02.05) - AIR CLEANER BRACKET (02) - ENGINE EQUIPMENT

1

87567769

SUPPORT

Air Cleaner Mount

1шт.

2

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

6шт.

3

86400620

ISOLATOR

2шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

9840274

SPACER

2шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

8

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

11

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.
