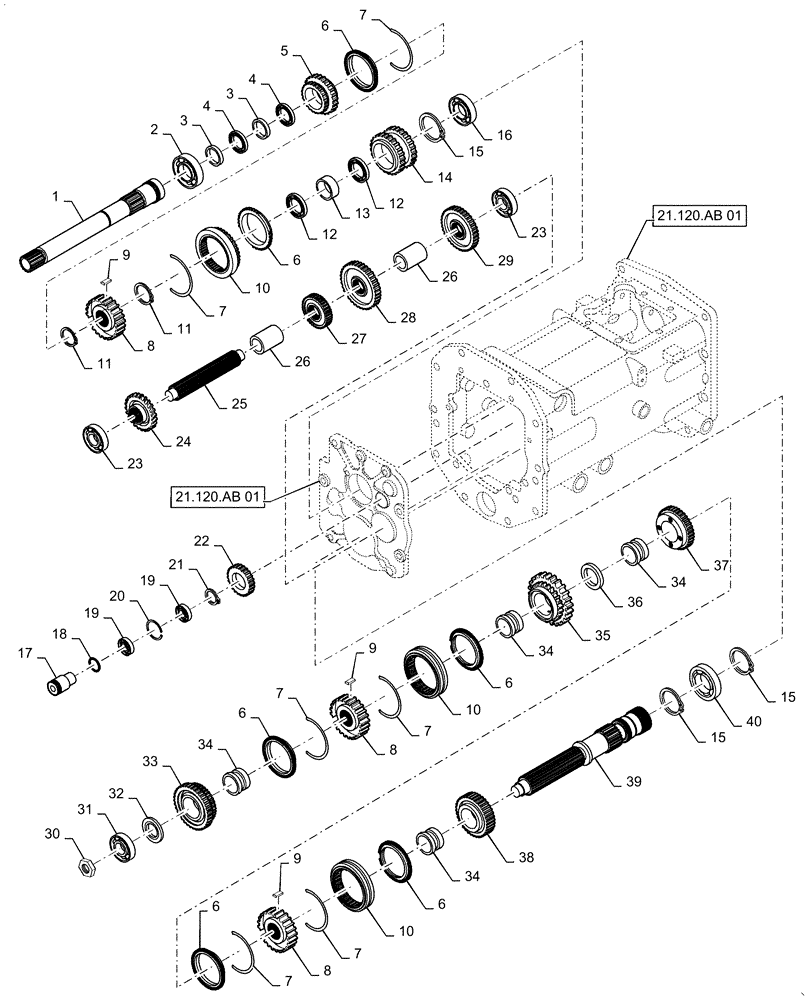

Запчасти Case IH FARMALL 35C (19.100.AA[01]) - MAIN SHAFT, FARMALL 30C, 35C (19) - POWER COUPLING

1

MT40266233

SHAFT

Fwd - Rvs Drive

1шт.

2

MT40012706

BALL BEARING

1шт.

3

MT40010034

SPACER,30mm ID x 37mm OD x 6.5mm L

2шт.

4

MT40030207

BALL BEARING

2шт.

5

MT40009148

GEAR,39mm ID x 79.5mm OD x 32mm Thk

Backward Drive

1шт.

6

MT40306115

RING,63mm OD x 8.5mm L

Synchronizer

6шт.

7

MT40284012

SPRING,73mm OD

6шт.

8

MT40009428

HUB,30.69mm ID x 78.62mm OD x 19mm

Shift

3шт.

9

MT40009946

KEY

9шт.

10

MT40009384

SLEEVE,74.73mm ID x 93mm OD x 19.60mm

Shift

3шт.

11

MT40029308

RING,M32

2шт.

12

MT40030208

BALL BEARING

2шт.

13

MT40009681

SPACER,35mm ID x 40mm OD x 15.5mm L

1шт.

14

MT40009146

GEAR,44mm ID x 78.5mm OD x 47.5mm Thk

Forward Drive

1шт.

15

MT40029277

SNAP RING,M40

3шт.

16

MT40012725

BALL BEARING

1шт.

17

MT40010008

SHAFT,25mm OD x 50mm L

Reverse Idle

1шт.

18

MT40029208

O-RING,2.4mm Thk x 20.8mm ID

1шт.

19

MT40012722

BALL BEARING

2шт.

20

MT40029292

SNAP RING,M32

1шт.

21

MT40029265

SNAP RING,M20

1шт.

22

MT40009726

GEAR,32mm ID x 57.1mm OD x 14.5mm Thk

Reverse Idle

1шт.

23

MT40012714

BALL BEARING

2шт.

24

MT40009761

GEAR,26mm ID x 73.1mm OD x 17mm Thk

Main Shift Drive

1шт.

25

MT40009654

SHAFT,24.75mm OD x 189mm L

Main Shift Drive

1шт.

26

MT40010029

SPACER,25mm ID x 35mm OD x 50mm L

2шт.

27

MT40009738

GEAR,26mm ID x 60.1mm OD x 16.5mm Thk

Main Shift Drive First

1шт.

28

MT40009797

GEAR,26mm ID x 91.5mm OD x 10mm Thk

Main Shift Drive Fourth

1шт.

29

MT40009777

GEAR,22.5mm ID x 84.1mm OD x 12mm Thk

Range Driven

1шт.

30

MT40009544

NUT,M20 x 1.5

1шт.

31

MT40012703

BALL BEARING

1шт.

32

MT40009710

SPACER,25mm ID x 50mm OD x 3.3mm L

1шт.

33

MT40009166

GEAR,40mm ID x 89.1mm OD x 32mm Thk

Main Shift Driven Second

1шт.

34

MT40010047

SLEEVE,32.809mm ID x 40mm OD x 27mm L

Gear

4шт.

35

MT40009049

GEAR,40mm ID x 102.1mm OD x 31mm Thk, 49T

Main Shift Driven First

1шт.

36

MT40009711

SPACER,33mm ID x 50mm OD x 6mm

1шт.

37

MT40009149

GEAR,40mm ID x 79.5mm OD x 31mm Thk, 33T

Main Shift Driven Fourth

1шт.

38

MT40009144

GEAR,40mm ID x 78.1mm OD x 31mm Thk, 37T

Main Shift Driven Third

1шт.

39

MT40009118

SHAFT,45mm OD x 334mm L

Main Shift Driven

1шт.

40

MT40030206

BALL BEARING

1шт.
