Запчасти Case IH FARMALL 35C (55.302.AG[01]) - BATTERY, FARMALL 30C, 35C (55) - ELECTRICAL SYSTEMS

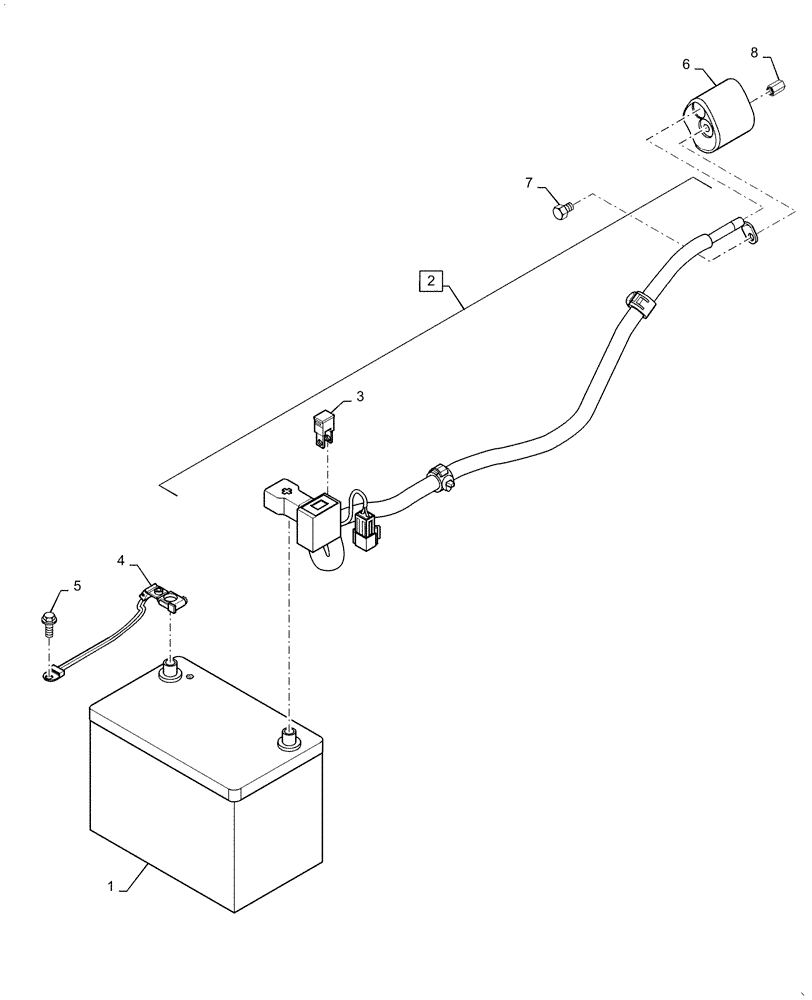

Схема запчастей Case IH FARMALL 35C - (55.302.AG[01]) - BATTERY, FARMALL 30C, 35C (55) - ELECTRICAL SYSTEMS
5
4
7
8
3
2
home
1
6

Артикул

Название

Примечание

Количество

1

BNH34770W

WET BATTERY

U.S.

1шт.

1

CBNH34770W

WET BATTERY

Canada

1шт.

2

MT40267111

POS BATTERY CABLE

Incl 3

1шт.

3

MT40279800

FUSE

Blow

1шт.

4

MT40007155

CABLE,330mm L

1шт.

5

MT40183617

BOLT,Hex, M8 x 1.25 x 25mm

Tap

1шт.

6

MT40293263

COVER

Starter Motor

1шт.

7

MT40229814

BOLT

Starter Motor

1шт.

8

MT40229813

NUT

Starter Motor

1шт.

Выбрано товаров: 9
